In heavy-duty mechanical engineering, the ability to manage simultaneous radial and high axial loads is paramount. Tapered Roller Bearings are specifically designed for this purpose. Their unique conical geometry ensures that the rollers and raceways meet at a common apex on the bearing axis, providing a true rolling motion and high load-carrying capacity.
As a leading bearing factory and bearing manufacturing company in China, UKL Bearing Manufacturing Co., Ltd. (Wuxi) specializes in precision-engineered tapered solutions. While some users search for “taper roller ball bearing,” it is important to note that these are technically roller bearings—utilizing conical rollers rather than balls to provide superior line contact and rigidity for the most demanding global industries.
The Mechanics of Tapered Design
The design of a Tapered Roller Bearing consists of four interdependent components: the inner ring (cone), the outer ring (cup), the tapered rollers, and the cage.
- Combined Load Capacity: Unlike standard ball bearings, the tapered design allows these bearings to support heavy radial and axial loads simultaneously.
- Adjustability: During assembly, tapered roller bearings can be set to a specific clearance or preload to optimize performance and increase system rigidity.
- Low Friction: UKL’s precision-engineered roller headers and raceway finishes ensure that the rollers are guided accurately by the large rib of the cone, minimizing heat and friction.
Technical Configurations & Design Variants
UKL produces a wide array of tapered roller bearings, including metric and inch sizes, to meet diverse international standards.
| Type |
Configuration |
Best For |
Industry Use |

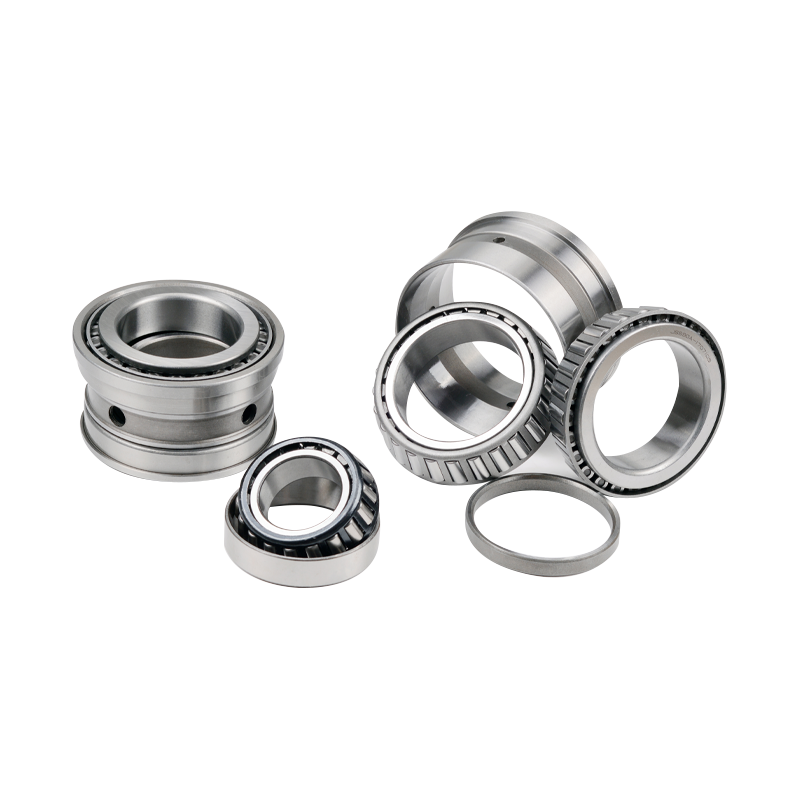

| Single Row |
One cup and one cone |
Combined loads in one direction |
Automotive wheels, Gearboxes |
| Matched Pairs |
Two single-row bearings |
Heavy bidirectional axial loads |
Machine tool spindles, Pinions |

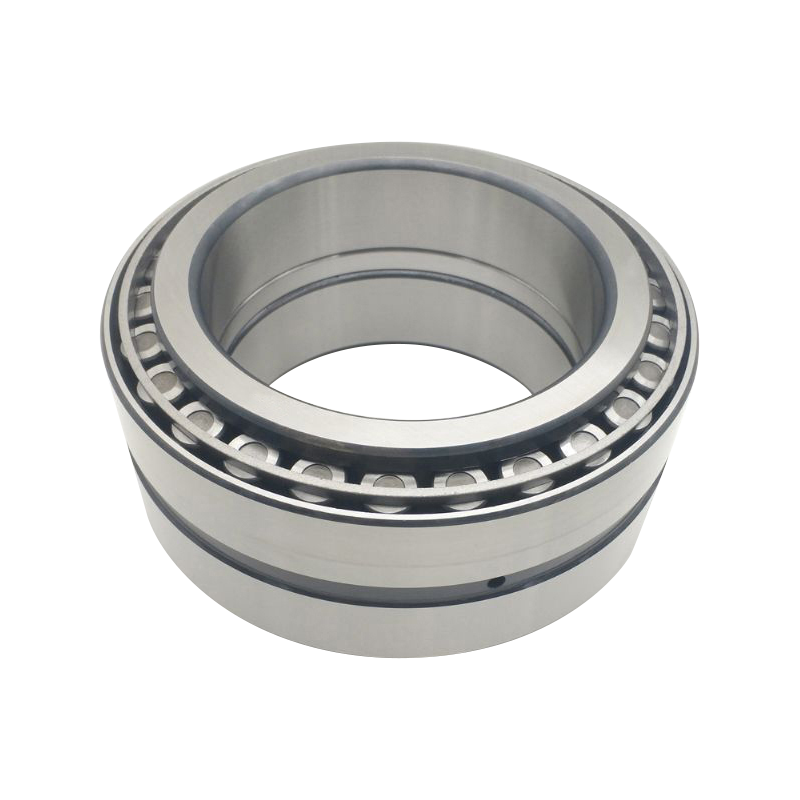

| Double Row |
One double cup / two cones |
High radial stiffness & bidirectional axial |
Mining equipment, Hoists |
| Four-Row |
Integrated heavy-duty unit |
Extreme radial loads |
Rolling mills, Heavy machinery |
The UKL Advantage: Precision Manufacturing in China
Since our founding in 2020, UKL Bearing Manufacturing Co., Ltd. has combined over 15 years of OEM/ODM export experience with a fully modernized production base to deliver world-class bearing solutions.
1. Premium Materials & Forging Excellence
The reliability of a tapered roller bearing starts with the steel. We utilize high-purity, vacuum-degassed bearing steel. Our integrated forging and annealing process ensures a dense, uniform grain structure, which is critical for preventing fatigue in high-stress applications like automotive drivetrains and industrial gearboxes.
2. Specialized Heat Treatment for Durability
Tapered bearings often operate in harsh, debris-filled environments. UKL employs advanced heat treatment techniques to achieve the perfect balance between surface hardness and core toughness. This “case-hardening” approach allows our bearings to withstand shock loads and surface bruising without brittle failure.
3. High-Precision Grinding & Profiling
To prevent stress concentration at the roller ends, UKL uses CNC grinding to create a crowned or logarithmic profile on both the rollers and the raceways. This ensures an even load distribution and extends the bearing life under conditions of slight shaft misalignment.
4. Global Standards & Flexible Service
Serving markets across Europe, Asia, Africa, and the Middle East, we offer both metric and inch-size bearings produced to P6, P5, or P4 precision grades. Our team of 200 professionals provides flexible, customized services, allowing us to respond quickly to non-standard requests and OEM requirements.
Applications Across Global Industries
Our high-performance tapered roller bearings are the trusted choice for:
- Automotive: Differential and transmission systems, and heavy-duty wheel hubs.
- Construction & Mining: Final drives, track rollers, and gearbox reducers.
- Agriculture: Transmissions and wheel assemblies for tractors and harvesters.
- Industrial Gearboxes: Supporting high-torque, high-load shafting in manufacturing plants.
Frequently Asked Questions (FAQ)
1. Is there a difference between a “taper roller ball bearing” and a Tapered Roller Bearing?
The term “taper roller ball bearing” is a common misnomer. In technical terms, “ball bearings” use spherical elements, whereas Tapered Roller Bearings use conical rollers. The roller design is superior for heavy-duty applications because it provides line contact, offering much higher load capacity and rigidity than point-contact ball bearings.
2. Why are Tapered Roller Bearings usually installed in pairs?
A single-row tapered roller bearing can only support axial loads in one direction. By installing them in pairs (Back-to-Back or Face-to-Face), they can handle axial loads from both directions and provide extremely high rotational stability for the shaft.
3. How does UKL ensure the precision of its tapered bearings?
Every UKL bearing undergoes rigorous automated assembly and testing. We measure the “stand-out” height of the cone and rollers within the cup to ensure that the assembly meets strict dimensional tolerances, ensuring ease of installation and consistent preload for our clients.
4. Can Tapered Roller Bearings be used in high-speed applications?
Yes, but they require precise lubrication and preload settings. For high-speed applications, we recommend our P5 or P4 precision grades, which feature optimized cage designs (machined brass or reinforced polymers) to reduce centrifugal forces and heat generation.
5. Does UKL offer Inch-size Tapered Roller Bearings?
Absolutely. While many manufacturers focus only on metric sizes, our 15 years of export experience has allowed us to build a vast catalog of Inch-series bearings to support machinery from the US, UK, and other markets following imperial standards.
