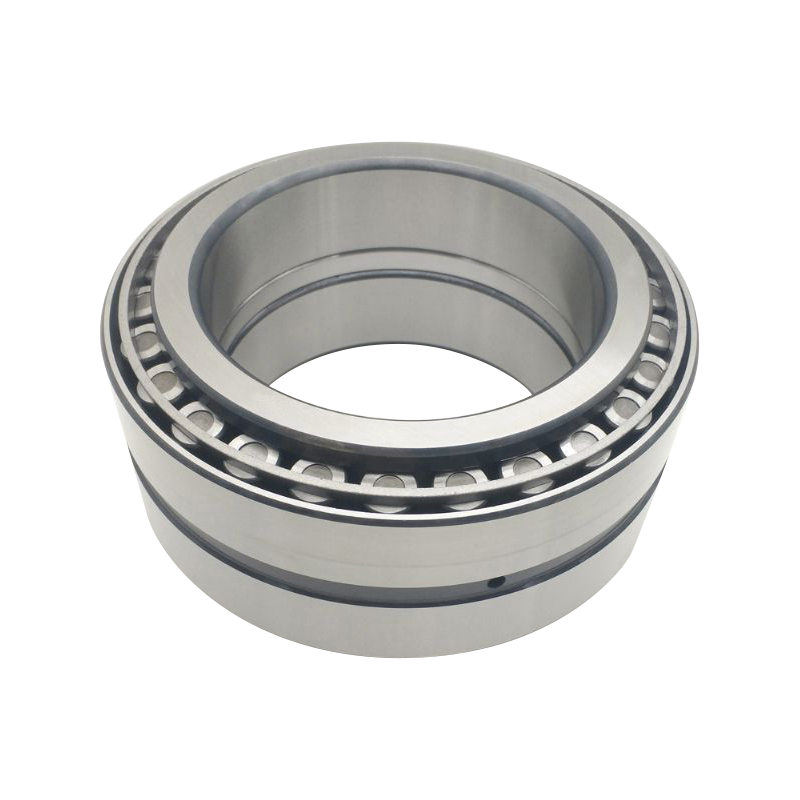

BT2B 332504/HA2 -Bantalan Rol Tirus Baris Ganda

Bantalan rol tirus baris ganda adalah jenis bantalan khusus yang dirancang untuk menahan beban aksial radial dan dua arah yang berat secara bersamaan. Mereka memberikan solusi kekakuan tinggi dan kapasitas besar untuk aplikasi seperti gearbox, rolling mill, dan mesin bor terowongan. Dibandingkan dengan bantalan baris tunggal, bantalan ini menawarkan kekakuan yang unggul, masa pakai yang lebih lama, dan gesekan yang lebih rendah.

Hubungi Kami

PRAV：No previous product BERIKUTNYA：30202 Bantalan Rol Tirus Baris Tunggal

Deskripsi
Spesifikasi
Hubungi Kami

Fitur dan Keunggulan Utama
· Daya Dukung Beban Berat: Dirancang untuk mendukung beban aksial radial dan dua arah yang tinggi.
· Kekakuan Tinggi (Kekakuan): Menyediakan pengaturan bantalan yang kaku, yang bermanfaat untuk aplikasi presisi.
·Lokasi/Posisi Aksial: Menempatkan poros secara aksial di kedua arah dalam jarak bebas aksial yang ditetapkan atau di bawah beban awal.
· Umur Panjang: Memanfaatkan profil raceway yang dioptimalkan untuk meningkatkan distribusi beban, mengurangi stres, dan meningkatkan ketahanan aus.
·Mengurangi Gesekan dan Kebisingan: Desain ujung roller dan penyelesaian permukaan yang dioptimalkan memfasilitasi pembentukan lapisan pelumas, sehingga mengurangi gesekan dan dapat menurunkan kebisingan dan getaran.
·Keandalan: Meningkatkan keandalan operasional bahkan dalam kondisi sulit dan menawarkan sensitivitas yang lebih tinggi terhadap ketidakselarasan.

Bidang Aplikasi (Aplikasi)
·Dalam industri pertambangan, mereka digunakan untuk peralatan pengangkat dan penggalian terowongan.
·Pabrik rolling juga memiliki permintaan yang tinggi untuk bantalan rol tirus baris ganda.

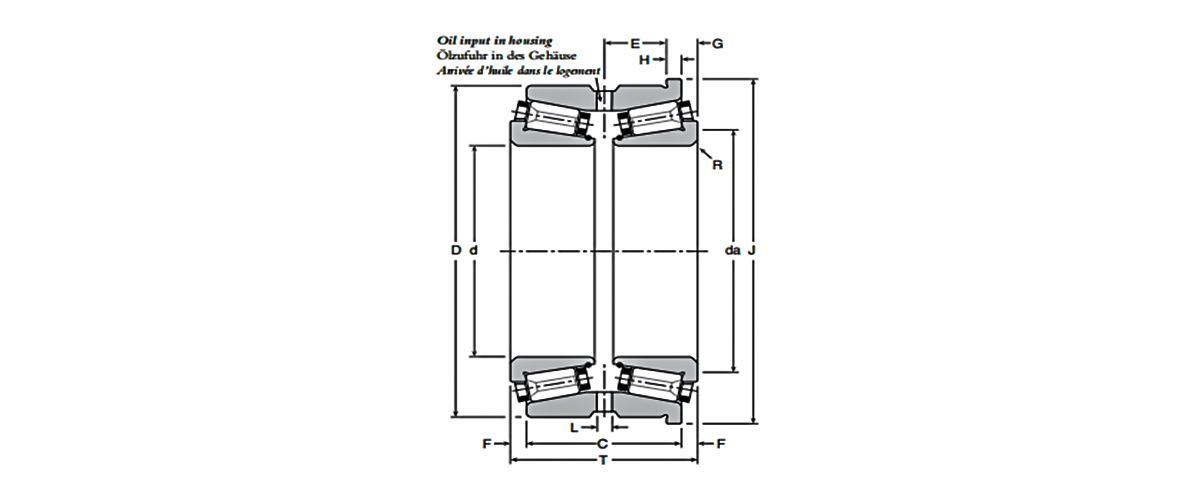

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
228.6	488.95		152.4	254	2828.7	4050			205	331945 Bantalan
260	480		220	284	3897	6615			210	BT2B 328130 Bantalan
260.35	422.275		139.7	178.592	2016	3645			86.5	Bantalan BT2B 328187/HA2
300.038	422.275		136.525	174.625	1959.3	4275			71.5	Bantalan BT2B 332504/HA2
317.5	447.675		146.05	180.975	2268.9	4860			84	Bantalan BT2B 332516 A/HA1
333.375	469.9		152.4	190.5	2377.8	5130			98	331775 B Bantalan
340	460		128	160	1976.4	4410			71	BT2B 332830 Bantalan
346.075	488.95		158.75	200.025	2551.5	5670			110	331981 Bantalan
355.6	501.65		107.95	155.575	1778.4	3825			87	Bantalan BT2B 332506/HA2
360	480		128	160	1989.9	4500			73	BT2B 332831 Bantalan
368.249	523.875		169.862	214.312	3042	6750			140	Bantalan BT2B 332603/HA1
371.475	501.65		107.95	155.575	1778.4	3825			77.4	331606 Bantalan
384.175	546.1		177.8	222.25	3351.6	7470			161	331197 Sebuah Bantalan
400	540		135	170	2503.8	5670			106	Bantalan BT2-8143/HA1
406.4	539.75		101.6	142.875	1635.3	3960			82.4	BT2B 328389 Bantalan
415.925	590.55		193.675	244.475	3757.5	8685			205	331656 Bantalan
431.8	571.5		146.05	192.088	2562.3	6255			127	Bantalan BT2B 332237 A/HA1
431.8	571.5		111.125	155.575	1030.5	4590			100	Bantalan BT2B 332604/HA1
447.675	635		206.375	257.175	3960	9900			245	BT2B 332176 Bantalan
479.425	679.45		222.25	276.225	4509	11430			302	331657 Bantalan
498.475	634.873		142.875	177.8	2475	6615			125	331605 B Bantalan
501.65	711.2		231.775	292.1	4950	12330			343	Bantalan BT2B 332605 A/HA1
536.575	761.873		247.65	311.15	5643	14400			430	BT2B 332446 Bantalan
558.8	736.6		177.8	225.425	3861	10440			150	331640 Bantalan
571.5	812.8		263.525	333.375	5796	14400			520	BT2B 332447 Bantalan
602.945	787.4		158.75	206.375	3618	9540			180	331576 B Bantalan
609.6	820		158.75	206.375	3618	9540			292	331500 Bantalan
711.2	914.4		139.7	190.5	3420	8685			265	Bantalan BT2B 328028/HA1
723.9	914.4		139.7	187.325	3420	8685			250	331554 Sebuah Bantalan
723.9	914.4		139.7	187.325	3420	8685			250	Bantalan BT2B 331554 B/HA1

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
762	965.2		133.35	187.325	3222	8820			290	331780 Bantalan
774.962	1016		209.63	266.7	6477.3	16200			525	BT2B 332625 Bantalan
914.4	1066.8		101.6	139.7	2340	7200			190	Bantalan BT2B 332501/HA5
1160	1540		290	400	12780	34200			1900	Bantalan BT2B 332780/HA5
1250	1500		190	250	6633	20160			795	Bantalan BT2B 328339/HA4
240	480	200		220	3253.5	4950			183	BT2B 332931 Bantalan
300	440	105		105	968.4	1836			48.5	332168 Bantalan
300.038	422.275	150.812		150.812	1959.3	4275			70	331951 Bantalan
303.212	495.3	263.525		263.525	4427.1	8820			212	Bantalan BT2B 332685/HA1
305.033	560	200		200	1509.3	4770			200	332068 Bantalan
305.033	560	200		199.263	1509.3	4770			205	Bantalan BT2B 334087/HA3
305.07	500	200		200	2460.6	4680			150	332169 Sebuah Bantalan
305.07	500	200		200	2460.6	4680			150	332169 Bantalan AA
305.07	524	200		200	2460.6	4680			180	Bantalan BT2B 334110/HA3
317.5	422.275	128.588		128.588	1606.5	3735			51.5	Bantalan BT2B 328699G/HA1
320	515	160		160	2142.9	3960			160	Bantalan BT2-8017/HA3
333.375	469.9	166.688		166.688	2377.8	5130			92.5	Bantalan BT2B 328695 A/HA1
342.9	533.4	146.05		139.7	1235.7	3960			115	331713 Sebuah Bantalan
346.075	488.95	174.625		174.625	2551.5	5670			110	331527 C Bantalan
346.075	488.95	174.625		174.625	2551.5	5670			113	Bantalan BT2B 328410 C/HA1
346.075	488.95	95.25		104.775	607.5	2475			62	Bantalan BT2B 332913/HB1
360	560	160		160	2300.4	4185			140	Bantalan BT2-8000/HA3
380	560	200		200	2691.9	5895			165	Bantalan BT2-8009/HA3
384.175	546.1	193.675		193.675	3351.6	7470			152	331158 Sebuah Bantalan
384.175	546.1	193.675		193.675	3351.6	7470			166	Bantalan BT2B 328580/HA1
384.175	546.1	193.675		193.675	3351.6	7470			152	BT2B 331837 Bantalan
385.762	514.35	152.4		152.4	2061	5400			92	Bantalan BT2B 328035/HA1
386	574	220		220	2670.3	5895			185	Bantalan BT2-8010/HA3VA901
390	546.1	141.288		141.288	2105.1	4590			102	Bantalan BT2B 328705/HA1
390	570	200		200	2670.3	5895			170	Bantalan BT2B 328896/HA3

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
390	590	200		200	2670.3	5895			200	Bantalan BT2B 328934/HA3
390	548	180		180	2295	5265			155	Bantalan BT2B 334045/HA3
400	650	240		240	3519	7335			290	332167 Bantalan
400	650	240		240	3519	7335			305	Bantalan BT2B 332167 C/HA3
406.4	546.1	138.113		138.113	2105.1	4590			89	Bantalan BT2B 331840 C/HA1
406.4	546.1	138.113		138.113	1980	4590			89	Bantalan BT2B 331840G/HA1C150
406.4	546.1	164.275		164.275	1775.7	3825			135	Bantalan BT2B 334085 A/HA1VA928
406.4	546.1	164.275		164.275	1775.7	3825			135	Bantalan BT2B 334085/HA1VA901
408.4	546.1	125		150	1766.7	4275			99	Bantalan BT2B 328466/HA1
408.4	546.1	98		120	1442.7	3105			76.5	Bantalan BT2B 328874/HA1
415.925	590.55	209.55		209.55	3757.5	8685			192	331445 Bantalan
415.925	590.55	209.55		209.55	3757.5	8685			192	Bantalan BT2B 328283/HA1
420	620	200		200	2673	6480			210	Bantalan BT2-8016/HA3
430	535	84		84	972	2700			44.5	Bantalan BT2B 334013/HA1
445	620	160		160	1908	4590			135	Bantalan BT2B 334069/HA3
445	620	180		180	1908	4590			160	Bantalan BT2B 334113/HA3VA901
447.675	635	223.838		223.838	3960	9900			236	331562 Bantalan
447.675	635	223.838		223.838	3960	9900			246	Bantalan BT2B 332911 B/HB1
447.675	635	223.838		223.838	3960	9900			246	Bantalan BT2B 332911 C/HA1
450	595	178		178	2852.1	7335			140	Bantalan BT2B 328523/HA1
460	680	180		180	2826	6255			210	Bantalan BT2B 328876/HA1
460	680	180		180	2826	6255			250	Bantalan BT2B 334030/HA1
464	615	136		150	1944	5265			133	BT2-8215 Bantalan
482	640	160		160	1584	4680			145	Bantalan BT2B 334112/HA3
482.6	733.425	190		190	2574	7470			293	Bantalan BT2-8142/HA3
489.026	634.873	152.4		152.4	2475	6615			130	BT2B 331848 Bantalan
500	730	280		280	5940	14040			420	331676 Sebuah Bantalan
501.65	711.2	250.825		250.825	4950	12330			330	331182 Bantalan
501.65	711.2	250.825		250.825	4950	12330			330	331182 Sebuah Bantalan
519.113	736.6	258.762		258.762	5445	14040			370	Bantalan BT2B 332662 B/HB1

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
519.113	736.6	258.762		258.762	5445	14040			370	Bantalan BT2B 332662/HB1
536.575	761.873	269.875		269.875	5643	14400			410	331682 Bantalan
558.8	736.6	196.85		196.85	3861	10440			235	331607 B Bantalan
560	820	242		242	4509	10260			425	Bantalan BT2B 332626/HA7
571.5	812.8	285.75		285.75	6489	16200			500	Bantalan BT2B 331476 AG/HA1
571.5	812.8	285.75		285.75	6489	16200			500	Bantalan BT2B 331854 C/HA1
571.5	812.8	285.75		285.75	6489	16200			500	Bantalan BT2B 331854/HA1
580	830	280		280	6138	14940			515	331677 Bantalan
609.6	787.4	171.45		171.45	3618	9540			218	Bantalan BT2B 331858/HA1
609.6	820	171.45		171.45	3618	9540			265	Bantalan BT2B 332424/HA3
635	939.8	304.8		304.8	6039	14940			720	331555 B Bantalan
650	1030	270		270	7920	16470			900	Bantalan BT2B 328306/HA4
660.4	812.8	176.212		176.212	3222	10080			195	331198 Bantalan
690	980	355		355	9204.3	22500			890	Bantalan BT2-8164/HA4
800	1260	375		375	13230	30150			1850	Bantalan BT2B 334032/HA4
901.7	1295.4	438.15		450.85	15120	38700			2000	331306 Bantalan
939.8	1333.5	463.55		463.55	15840	44100			2230	331350 Bantalan
110	180		76	95	400	730			8.63	352122 Bantalan
120	200		90	110	508	910			11.7	352124 Bantalan
130	200		80	102	450	800			9.72	352026 Bantalan
130	210		90	110	540	1000			13.5	352126 Bantalan
140	210		82	104	480	830			10.9	352028 Bantalan
140	225		90	115	560	1100			15.5	352128 Bantalan
150	225		86	110	500	900			14.5	352030 Bantalan
150	250		112	138	778	1560			25.8	352130 Bantalan
160	240		90	116	700	1300			16.5	352032 Bantalan
160	270		120	150	990	2160			34.9	352132 Bantalan
170	260		100	128	830	1800			21	352034 Bantalan
170	280		120	150	1100	2400			35.6	352134 Bantalan
180	280		110	142	1005	2340			27.9	352036 Bantalan

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
180	300		134	164	1290	2500			43.2	352136 Bantalan
190	290		110	142	1005	2340			28.8	352038 Bantalan
190	320		130	170	1160	2410			50.4	352138 Bantalan
200	310		120	154	1500	2900			41.9	352040 Bantalan
200	340		150	184	1600	3300			61.5	352140 Bantalan
220	340		128	166	1210	2500			42.7	352044 Bantalan
220	370		150	195	1700	3200			76.3	352144 Bantalan
240	360		128	166	1430	3200			52.8	352048 Bantalan
240	400		163	210	2000	4100			98.1	352148 Bantalan
260	400		146	190	1530	3630			75.6	352052 Bantalan
260	440		180	225	2200	4600			126	352152 Bantalan
280	420		146	190	1820	4050			81.3	352056 Bantalan
300	460		168	220	2200	5300			117	352060 Bantalan
25	52	19	36.5	39.75				13300	0.34	Bantalan 74025/74052PT
30	62	23	42.5	46.75				11600	0.535	Bantalan 70030/70062PT
30	66.675	23.5	42.48	47.24				10400	0.63	Bantalan 80030/80066XPT
30	68	23.5	42.48	47.24				10400	0.63	Bantalan 80030/80068PT
31.75	72	26	46.5	51.75				9600	0.75	Bantalan 100031X/100072PT
31.75	76.2	26	46.5	51.75				9600	0.75	Bantalan 100031X/100076XPT
31.75	80	26	46.5	51.75				9600	0.75	Bantalan 100031X/100080PT
33.338	66.675	23.5	42.48	47.24				10400	0.63	Bantalan 80033X/80066XPT
33.338	68	23.5	42.48	47.24				10400	0.63	Bantalan 80033X/80068PT
34.925	72	26	46.5	51.75				9600	0.75	Bantalan 100034X/100072PT
34.925	76.2	26	46.5	51.75				9600	0.75	Bantalan 100034X/100076XPT
34.925	80	26	46.5	51.75				9600	0.75	Bantalan 100034X/100080PT
35	66.675	23.5	42.48	47.24				10400	0.6	Bantalan 80035/80066XPT
35	68	23.5	42.48	47.24				10400	0.63	Bantalan 80035/80068PT
35	72	26	46.5	51.75				9600	0.75	Bantalan 100035/100072PT
35	76.2	26	46.5	51.75				9600	0.75	Bantalan 100035/100076XPT
35	80	26	46.5	51.75				9600	0.75	Bantalan 100035/100080PT

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
38.1	76	26	45.5	51.25				8800	0.92	Bantalan 101038X/101076PT
38.1	76.2	26	45.5	51.25				8800	0.92	Bantalan 101038X/101076XPT
38.1	80	26	45.5	51.25				8800	0.92	Bantalan 101038X/101080PT
40	76.2	26	45.5	51.25				8800	0.92	Bantalan 101040/101076XPT
40	80	26	45.5	51.25				8800	0.915	Bantalan 101040/101080PT
40	85	24.5	48.66	51.83				8200	1.025	Bantalan 112040/112085PT
41.275	76	26	45.5	51.25				8800	0.92	Bantalan 101041X/101076PT
41.275	76.2	26	45.5	51.25				8800	0.92	Bantalan 101041X/101076XPT
41.275	80	26	45.5	51.25				8800	0.92	Bantalan 101041X/101080PT
41.275	85	24.5	48.66	51.83				8200	1.03	Bantalan 112041X/112085PT
44.45	85	24.5	48.66	51.83				8200	1.03	Bantalan 112044X/112085PT
44.45	85	28	55.66	58.83				8200	1.07	Bantalan 119044X/119085PT
44.45	88.9	28	55.66	58.83				8200	1.07	Bantalan 119044X/119088XPT
44.45	90	29	51.3	57.65				7400	1.17	Bantalan 111044X/111090PT
44.45	93.266	29	51.3	57.65				7400	1.17	Bantalan 111044X/111093XPT
45	85	24.5	48.66	51.83				8200	0.965	Bantalan 112045/112085PT
45	85	28	55.66	58.83				8200	1.07	Bantalan 119045/119085PT
45	88.9	28	55.66	58.83				8200	1.07	Bantalan 119045/119088XPT
50	90	29	51.3	57.65				7400	1.17	Bantalan 111050/111090PT
50	93.266	29	51.3	57.65				7400	1.17	Bantalan 111050/111093XPT
50	96.838	29.5	54	59.5				6900	1.63	Bantalan 110050/110096XPT
50	98.425	29.5	54	59.5				6900	1.63	Bantalan 110050/110098XPT
50	100	29.5	54	59.5				6900	1.63	Bantalan 110050/110100PT
50.8	90	29	51.3	57.65				7400	1.17	Bantalan 111050X/111090PT
50.8	96.838	29.5	54	59.5				6900	1.63	Bantalan 110050X/110096XPT
50.8	98.425	29.5	54	59.5				6900	1.63	Bantalan 110050X/110098XPT
50.8	100	29.5	54	59.5				6900	1.63	Bantalan 110050X/110100PT
53.975	96.838	29.5	54	59.5				6900	1.63	Bantalan 110053X/110096XPT
53.975	98.425	29.5	54	59.5				6900	1.63	Bantalan 110053X/110098XPT
53.975	100	29.5	54	59.5				6900	1.63	Bantalan 110053X/110100PT

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
55	96.838	29.5	54	59.5				6900	1.63	Bantalan 110055/110096XPT
55	98.425	29.5	54	59.5				6900	1.63	Bantalan 110055/110098XPT
55	100	29.5	54	59.5				6900	1.54	Bantalan 110055/110100PT
57.15	96.838	29.5	54	59.5				6900	1.63	Bantalan 110057X/110096XPT
57.15	98.425	29.5	54	59.5				6900	1.63	Bantalan 110057X/110098XPT
57.15	100	29.5	54	59.5				6900	1.63	Bantalan 110057X/110100PT
57.15	100	26.5	46.88	52.44				6600	1.38	Bantalan 113057X/113100PT
57.15	101.6	26.5	46.88	52.44				6600	1.38	Bantalan 113057X/113101XPT
57.15	110	33	60.3	66.65				6200	2.03	Bantalan 120057X/120110PT
57.15	112.712	33	60.3	66.65				6200	2.03	Bantalan 120057X/120112XPT
60	100	26.5	46.88	52.44				6600	1.38	Bantalan 113060/113100PT
60	101.6	26.5	46.88	52.44				6600	1.38	Bantalan 113060/113101XPT
60	110	33	60.3	66.65				6200	2.03	Bantalan 120060/120110PT
60	112.712	33	60.3	66.65				6200	2.03	Bantalan 120060/120112XPT
60	120	32	59.88	65.44				5700	2.45	Bantalan 130060/130120PT
60	127	32	59.88	65.44				5700	2.45	Bantalan 130060/130127PT
60.325	100	26.5	46.88	52.44				6600	1.38	Bantalan 113060X/113100PT
60.325	101.6	26.5	46.88	52.44				6600	1.38	Bantalan 113060X/113101XPT
63.5	110	33	60.3	66.65				6200	1.94	Bantalan 120063X/120110PT
63.5	120	32	59.88	65.44				5700	2.45	Bantalan 130063X/130120PT
63.5	127	32	59.88	65.44				5700	2.45	Bantalan 130063X/130127PT
65	120	32	59.88	65.44				5700	2.45	Bantalan 130065/130120PT
65	127	32	59.88	65.44				5700	2.45	Bantalan 130065/130127PT
69.85	112.712	33	60.3	66.65				5800	1.83	Bantalan 124069X/124112XPT
69.85	120	32	59.88	65.44				5700	2.32	Bantalan 130069X/130120PT
69.85	120	42	73.12	81.06				5700	3.05	Bantalan 135069X/135120PT
69.85	127	32	59.88	65.44				5700	2.45	Bantalan 130069X/130127PT
70	112.712	33	60.3	66.65				5800	1.83	Bantalan 124070/124112XPT
70	120	32	59.88	65.44				5700	2.32	Bantalan 130070/130120PT
70	127	32	59.88	65.44				5700	2.45	Bantalan 130070/130127PT

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
75	127	33.5	60.5	66.75				5300	2.79	133075/133127PT Bantalan
75	130	33.5	60.5	66.75				5300	2.79	Bantalan 133075/133130PT
75	133.35	33.5	60.5	66.75				5300	2.79	Bantalan 133075/133133XPT
75	136.525	33.5	60.5	66.75				5300	2.79	Bantalan 133075/133136XPT
76.2	127	33.5	60.5	66.75				5300	2.79	Bantalan 133076X/133127PT
76.2	130	33.5	60.5	66.75				5300	2.79	Bantalan 133076X/133130PT
76.2	133.35	33.5	60.5	66.75				5300	2.79	Bantalan 133076X/133133XPT
76.2	136.525	33.5	60.5	66.75				5300	2.79	Bantalan 133076X/133136XPT
80	140	38.5	69.14	77.07				4900	3.78	Bantalan 140080/140140PT
82.55	140	38.5	69.14	77.07				4900	3.68	Bantalan 140082X/140140PT
85	140	38.5	69.14	77.07				4900	3.58	Bantalan 140085/140140PT
85	170	50.5	89	97.5				4200	7.34	Bantalan 210085/210170PT
90	133.35	34	60.12	68.06				4800	2.82	Bantalan 117090/117133XPT
90	150	33.75	62	68.5				4400	3.8	Bantalan 131090/131150PT
90	152.4	33.75	62	68.5				4400	3.8	Bantalan 131090/131152XPT
90	152.4	42	78.5	83.9				4300	4.3	Bantalan 160090/160152XPT
90	158.75	33.75	62	68.5				4400	3.8	Bantalan 131090/131158XPT
90	158.75	42	78.5	83.9				4300	4.3	Bantalan 160090/160158XPT
90	160	42	78.5	83.9				4300	4.3	Bantalan 160090/160160PT
90	161.925	42	78.5	83.9				4300	4.3	Bantalan 160090/160161XPT
90	170	50.5	89	97.5				4200	7.34	Bantalan 210090/210170PT
92.075	150	33.75	62	68.5				4400	3.8	Bantalan 131092X/131150PT
92.075	152.4	33.75	62	68.5				4400	3.8	Bantalan 131092X/131152XPT
92.075	158.75	33.75	62	68.5				4400	3.8	Bantalan 131092X/131158XPT
93.663	150	33.75	62	68.5				4400	3.8	Bantalan 131093X/131150PT
93.663	152.4	33.75	62	68.5				4400	3.8	Bantalan 131093X/131152XPT
93.663	158.75	33.75	62	68.5				4400	3.8	Bantalan 131093X/131158XPT
95	150	33.75	62	68.5				4400	3.8	Bantalan 131095/131150PT
95	152.4	33.75	62	68.5				4400	3.74	Bantalan 131095/131152XPT
95	152.4	42	75.8	83.9				4300	4.5	Bantalan 160095/160152XPT

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
95	158.75	33.75	62	68.5				4400	3.8	Bantalan 131095/131158XPT
95	170	50.5	89	97.5				4200	7.34	Bantalan 210095/210170PT
97	150	33.75	62	68.5				4400	3.8	Bantalan 131097/131150PT
97	152.4	33.75	62	68.5				4400	3.66	Bantalan 131097/131152XPT
97	158.75	33.75	62	68.5				4400	3.8	Bantalan 131097/131158XPT
98.425	152.4	42	75.8	83.9				4300	4.3	Bantalan 160098X/160152XPT
98.425	158.75	42	78.5	83.9				4300	4.3	Bantalan 160098X/160158XPT
98.425	160	42	78.5	83.9				4300	4.3	Bantalan 160098X/160160PT
98.425	161.925	42	78.5	83.9				4300	4.3	Bantalan 160098X/160161XPT
100	170	46	84	92				3900	7.67	Bantalan 180100/180170PT
100	180	46	84	92				3900	7.67	Bantalan 180100/180180PT
100	180.975	46	84	92				3900	7.67	Bantalan 180100/180180XPT
100	190	46	84	92				3900	9.58	Bantalan 180100/180190PT
101.6	165.1	39.5	63.51	73.03				3900	5.68	Bantalan 141101X/141165XPT
101.6	170	46	84	92				3900	7.67	Bantalan 180101X/180170PT
101.6	180	46	84	92				3900	7.67	Bantalan 180101X/180180PT
101.6	180.975	46	84	92				3900	7.81	Bantalan 180101X/180180XPT
101.6	190	46	84	92				3900	9.56	Bantalan 180101X/180190PT
105	170	46	84	92				3900	7.67	Bantalan 180105/180170PT
105	180	46	84	92				3900	7.67	Bantalan 180105/180180PT
105	180.975	46	84	92				3900	7.58	Bantalan 180105/180180XPT
105	190	46	84	92				3900	9.38	Bantalan 180105/180190PT
107.95	165.1	39.5	63.51	73.03				3900	5.68	Bantalan 141107X/141165XPT
111.125	180.975	50	82.6	95.3				3600	7.03	Bantalan 181111X/181180XPT
111.125	190	50	82.6	95.3				3600	8.68	Bantalan 181111X/181190PT
111.125	190.5	50	82.6	95.3				3600	8.78	Bantalan 181111X/181190XPT
111.125	200.025	50	82.6	95.3				3600	8.68	Bantalan 181111X/181200XPT
115	165	31	55	60				3900	2.85	Bantalan 105115/105165PT
115	180.975	50	82.6	95.3				3600	6.78	Bantalan 181115/181180XPT
115	190	50	82.6	95.3				3600	8.43	Bantalan 181115/181190PT

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
115	190.5	50	82.6	95.3				3600	8.53	Bantalan 181115/181190XPT
115	200.025	50	82.6	95.3				3600	8.68	Bantalan 181115/181200XPT
118	180.975	50	82.6	95.3				3600	6.57	Bantalan 181118/181180XPT
118	190	50	82.6	95.3				3600	8.13	Bantalan 181118/181190PT
118	190.5	50	82.6	95.3				3600	8.23	Bantalan 181118/181190XPT
118	200.025	50	82.6	95.3				3600	8.68	Bantalan 181118/181200XPT
120	165	31	55	60				3900	2.85	Bantalan 105120/105165PT
120	190	50	82.6	95.3				3500	7.45	Bantalan 184120/184190PT
120	190.5	5	82.6	95.3				3500	7.45	Bantalan 184120/184190XPT
120	199	5	82.6	95.3				3500	7.45	Bantalan 184120/184199PT
120	200	5	82.6	95.3				3500	7.45	Bantalan 184120/184200PT
127	175	31	55	60				3900	2.85	Bantalan 109127X/109175PT
127	196.85	42	85.74	93.67				3400	7.42	Bantalan 164127X/164196XPT
127	200.025	42	85.74	93.67				3400	7.42	Bantalan 164127X/164200XPT
127	215	51	92	101				3100	11.05	Bantalan 200127X/200215PT
127	215.9	51	92	101				3100	11.05	Bantalan 200127X/200215XPT
133.35	196.85	42	85.74	93.67				3400	7.42	Bantalan 164133X/164196XPT
133.35	200.025	42	85.74	93.67				3400	7.42	Bantalan 164133X/164200XPT
133.35	215	51	92	101				3100	11.05	Bantalan 200133X/200215PT
133.35	215.9	51	92	101				3100	10.55	Bantalan 200133X/200215XPT
136.525	215	51	92	101				3100	11.05	Bantalan 200136X/200215PT
136.525	215.9	51	92	101				3100	10.25	Bantalan 200136X/200215XPT
139.7	215	51	92	101				3100	11.05	Bantalan 200139X/200215PT
139.7	215.9	51	92	101				3100	11.05	Bantalan 200139X/200215XPT
139.7	241.3	59	104	115				2900	17.7	Bantalan 240139X/240241XPT
140	200	42	73	80.15				3100	6.38	Bantalan 161140/161200PT
140	200.025	42	73	80.15				3100	6.38	Bantalan 161140/161200XPT
142.875	200	42	73	80.15				3100	6.38	Bantalan 161142X/161200PT
142.875	200.025	42	73	80.15				3100	6.38	Bantalan 161142X/161200XPT
145	241.3	59	104	115				2900	17.15	Bantalan 240145/240241XPT

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
145	256	51	92	101				2700	11.83	Bantalan 203145/203256PT
149.225	241.3	59	104	115				2900	17.15	Bantalan 240149X/240241XPT
150	210	42	76	84				3000	9.1	Bantalan 163150/163210PT
152.4	222.25	49	81.2	93.1				3000	9.08	Bantalan 183152X/183222XPT
152.4	254	74	116.9	135.95				2600	21.72	Bantalan 281152X/281254XPT
152.4	266.7	74	116.9	135.95				2600	21.72	Bantalan 281152X/281266XPT
155.575	254	74	116.9	135.95				2600	21.72	Bantalan 281155X/281254XPT
155.575	266.7	74	116.9	135.95				2600	21.72	Bantalan 281155X/281266XPT
156	235	51	92	101				2700	11.83	Bantalan 203156/203235PT
165.1	254	50	88.96	98.48				2600	12.7	Bantalan 186165X/186254XPT
170	254	50	88.96	98.48				2600	12.7	Bantalan 186170/186254XPT
177.8	227.013	35	63.48	69.24				2700	5.07	Bantalan 115177X/115227XPT
177.8	254	50	88.96	98.48				2600	12.7	Bantalan 186177X/186254XPT
177.8	288.925	71	122.25	138.12				2300	27.2	Bantalan 280177X/280288XPT
185	258	50	90	100				2500	12	Bantalan 187185/187258PT
190.5	282.575	54	91.42	105.71				2300	14.1	Bantalan 242190X/242282XPT
190.5	290	52	96	105				2200	14.2	Bantalan 206190X/206290PT
203.2	310	72	121.08	138.54				2100	25	Bantalan 283203X/283310PT
203.2	317.5	72	121.08	138.54				2100	25	Bantalan 283203X/283317XPT
210	290	52	96	105				2200	13.1	Bantalan 206210/206290PT
210	310	72	121.08	138.54				2100	25	Bantalan 283210/283310PT
210	317.5	72	121.08	138.54				2100	25	Bantalan 283210/283317XPT
230	327.025	55	90.24	106.12				1900	21	Bantalan 244230/244327XPT
230	330	55	90.24	106.12				1900	21	Bantalan 244230X/244330PT
234.95	327.025	55	90.24	106.12				1900	21	Bantalan 244234X/244327XPT
234.95	330	55	90.24	106.12				1900	21	Bantalan 244234X/244330PT
260	385	66	114.34	130.12				1700	32	Bantalan 382260/382385PT
25	52		36.5	43				13300	0.46	Bantalan 74025/74052GUD
30	62		42.5	51				11600	0.64	Bantalan 70030/70062GUD
30	66.675		42.48	52				10400	0.78	Bantalan 80030/80066XGUD

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
30	68		42.48	52				10400	0.78	Bantalan 80030/80068GUD
32	72		46.5	57				9600	0.825	Bantalan 100031X/100072GUD
32	76.2		46.5	57				9600	0.825	Bantalan 100031X/100076XGUD
32	80		46.5	57				9600	0.825	Bantalan 100031X/100080GUD
33	66.675		42.48	52				10400	0.78	Bantalan 80033X/80066XGUD
33	68		42.48	52				10400	0.78	Bantalan 80033X/80068GUD
35	72		46.5	57				9600	0.825	Bantalan 100034X/100072GUD
35	76.2		46.5	57				9600	0.825	Bantalan 100034X/100076XGUD
35	80		46.5	57				9600	0.825	Bantalan 100034X/100080GUD
35	66.675		42.48	52				10400	0.72	Bantalan 80035/80066XGUD
35	68		42.48	52				10400	0.75	Bantalan 80035/80068GUD
35	72		46.5	57				9600	0.825	Bantalan 100035/100072GUD
35	76.2		46.5	57				9600	0.825	Bantalan 100035/100076XGUD
35	80		46.5	57				9600	0.825	Bantalan 100035/100080GUD
36	72		36.5	42				9600	0.58	Bantalan 102036/102072GUD
38	76		45.5	57				8800	0.85	Bantalan 101038X/101076GUD
38	76.2		45.5	57				8800	0.85	Bantalan 101038X/101076XGUD
38	80		45.5	57				8800	0.85	Bantalan 101038X/101080GUD
40	76		45.5	57				8800	0.85	Bantalan 101040/101076GUD
40	76.2		45.5	57				8800	0.85	Bantalan 101040/101076XGUD
40	80		45.5	57				8800	1.025	Bantalan 101040/101080GUD
40	85		48.66	55				8200	1.19	Bantalan 112040/112085GUD
41	76		45.5	57				8800	0.85	Bantalan 101041X/101076GUD
41	76.2		45.5	57				8800	0.85	Bantalan 101041X/101076XGUD
41	80		45.5	57				8800	0.85	Bantalan 101041X/101080GUD
41	85		48.66	55				8200	1.07	Bantalan 112041X/112085GUD
44	90		51.3	64				7400	1.33	Bantalan 111044X/111090GUD
44	93.266		51.3	64				7400	1.33	Bantalan 111044X/111093XGUD
44	85		48.66	55				8200	1.07	Bantalan 112044X/112085GUD
44	85		55.66	62				8200	1.17	Bantalan 119044X/119085GUD

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
44	88.9		55.66	62				8200	1.17	Bantalan 119044X/119088XGUD
45	85		48.66	55				8200	1.07	Bantalan 112045/112085GUD
45	85		55.66	62				8200	1.17	Bantalan 119045/119085GUD
45	88.9		55.66	62				8200	1.17	Bantalan 119045/119088XGUD
50	90		51.3	64				7400	1.33	Bantalan 111050/111090GUD
50	93.266		51.3	64				7400	1.33	Bantalan 111050/111093XGUD
50	96.838		54	65				6900	1.945	Bantalan 110050/110096XGUD
50	98.425		54	65				6900	1.945	Bantalan 110050/110098XGUD
50	100		54	65				6900	1.945	Bantalan 110050/110100GUD
51	90		51.3	64				7400	1.33	Bantalan 111050X/111090GUD
51	96.838		54	65				6900	1.945	Bantalan 110050X/110096XGUD
51	98.425		54	65				6900	1.945	Bantalan 110050X/110098XGUD
51	100		54	65				6900	1.945	Bantalan 110050X/110100GUD
54	96.838		54	65				6900	1.945	Bantalan 110053X/110096XGUD
54	98.425		54	65				6900	1.945	Bantalan 110053X/110098XGUD
54	100		54	65				6900	1.945	Bantalan 110053X/110100GUD
55	96.838		54	65				6900	1.945	Bantalan 110055/110096XGUD
55	98.425		54	65				6900	1.945	Bantalan 110055/110098XGUD
55	100		54	65				6900	1.765	Bantalan 110055/110100GUD
57	96.838		54	65				6900	1.945	Bantalan 110057X/110096XGUD
57	98.425		54	65				6900	1.945	Bantalan 110057X/110098XGUD
57	100		54	65				6900	1.945	Bantalan 110057X/110100GUD
57	100		46.88	58				6600	1.825	Bantalan 113057X/113100GUD
57	101.6		46.88	58				6600	1.825	Bantalan 113057X/113101XGUD
57	110		60.3	73				6200	2.39	Bantalan 120057X/120110GUD
57	112.712		60.3	73				6200	2.39	Bantalan 120057X/120112XGUD
60	100		46.88	58				6600	1.825	Bantalan 113060/113100GUD
60	101.6		46.88	58				6600	1.825	Bantalan 113060/113101XGUD
60	110		60.3	73				6200	2.39	Bantalan 120060/120110GUD
60	112.712		60.3	73				6200	2.39	Bantalan 120060/120112XGUD

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
60	120		59.88	71				5700	2.86	Bantalan 130060/130120GUD
60	127		59.88	71				5700	2.86	Bantalan 130060/130127GUD
60	100		46.88	58				6600	1.825	Bantalan 113060X/113100GUD
60	101.6		46.88	58				6600	1.825	Bantalan 113060X/113101XGUD
64	110		60.3	73				6200	2.21	Bantalan 120063X/120110GUD
64	120		59.88	71				5700	2.86	Bantalan 130063X/130120GUD
64	127		59.88	71				5700	2.86	Bantalan 130063X/130127GUD
65	120		59.88	71				5700	2.86	Bantalan 130065/130120GUD
65	127		59.88	71				5700	2.86	Bantalan 130065/130127GUD
70	112.712		60.3	73				5800	2.015	Bantalan 124069X/124112XGUD
70	120		59.88	71				5700	2.61	Bantalan 130069X/130120GUD
70	120		73.12	89				5700	2.73	Bantalan 135069X/135120GUD
70	127		59.88	71				5700	2.86	Bantalan 130069X/130127GUD
70	112.712		60.3	73				5800	2.015	Bantalan 124070/124112XGUD
70	120		59.88	71				5700	2.64	Bantalan 130070/130120GUD
70	127		59.88	71				5700	2.86	Bantalan 130070/130127GUD
73	120		49.7	64				5500	2.35	Bantalan 123073X/123120GUD
73	120.65		49.7	64				5500	2.35	Bantalan 123073X/123120XGUD
73	121.444		49.7	64				5500	2.35	Bantalan 123073X/123121XGUD
73	123.825		49.7	64				5500	2.35	Bantalan 123073X/123123XGUD
75	120		49.7	64				5500	2.25	Bantalan 123075/123120GUD
75	120.65		49.7	64				5500	2.25	Bantalan 123075/123120XGUD
75	121.444		49.7	64				5500	2.25	Bantalan 123075/123121XGUD
75	123.825		49.7	64				5500	2.25	Bantalan 123075/123123XGUD
75	127		60.5	73				5300	3.23	133075/133127 Bantalan GUD
75	130		60.5	73				5300	3.23	Bantalan 133075/133130GUD
75	133.35		60.5	73				5300	3.23	Bantalan 133075/133133XGUD
75	136.525		60.5	73				5300	3.23	Bantalan 133075/133136XGUD
76	120		49.7	64				5500	2.25	Bantalan 123076X/123120GUD
76	120.65		49.7	64				5500	2.25	Bantalan 123076X/123120XGUD

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
76	123.825		49.7	64				5500	2.25	Bantalan 123076X/123123XGUD
76	127		60.5	73				5300	3.23	Bantalan 133076X/133127GUD
76	130		60.5	73				5300	3.23	Bantalan 133076X/133130GUD
76	133.35		60.5	73				5300	3.23	Bantalan 133076X/133133XGUD
76	136.525		60.5	73				5300	3.23	Bantalan 133076X/133136XGUD
78	120		49.7	64				5500	2.25	Bantalan 123077X/123120GUD
78	120.65		49.7	64				5500	2.25	Bantalan 123077X/123120XGUD
78	121.444		49.7	64				5500	2.25	Bantalan 123077X/123121XGUD
78	123.825		49.7	64				5500	2.25	Bantalan 123077X/123123XGUD
80	140		69.14	85				4900	4.345	Bantalan 140080/140140GUD
81	133.35		58.12	74				4900	2.25	Bantalan 126080X/126133XGUD
83	133.35		58.12	74				4900	2.25	Bantalan 126082X/126133XGUD
83	136.525		58.12	74				4900	2.25	Bantalan 126082X/126136XGUD
83	140		69.14	85				4900	4.145	Bantalan 140082X/140140GUD
84	133.35		58.12	74				4900	2.4	Bantalan 126084X/126133XGUD
84	136.525		58.12	74				4900	2.4	Bantalan 126084X/126136XGUD
85	140		69.14	85				4900	3.945	Bantalan 140085/140140GUD
85	170		89	106				4200	8.345	Bantalan 210085/210170GUD
86	133.35		58.12	74				4900	2.4	Bantalan 126085X/126133XGUD
86	136.525		58.12	74				4900	2.4	Bantalan 126085X/126136XGUD
89	133.35		58.12	74				4900	2.4	Bantalan 126088X/126133XGUD
89	136.525		58.12	74				4900	2.4	Bantalan 126088X/126136XGUD
90	133.35		60.12	76				4800	3.9	Bantalan 117090/117133XGUD
90	170		89	106				4200	8.345	Bantalan 210090/210170GUD
90	150		62	75				4400	4.625	Bantalan 131090/131150GUD
90	152.4		62	75				4400	4.625	Bantalan 131090/131152XGUD
90	158.75		62	75				4400	4.625	Bantalan 131090/131158XGUD
90	152.4		75.8	92				4300	4.95	Bantalan 160090/160152XGUD
90	158.75		75.8	92				4300	4.95	Bantalan 160090/160158XGUD
90	160		75.8	92				4300	4.95	Bantalan 160090/160160GUD

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
90	161.925		75.8	92				4300	4.95	Bantalan 160090/160161XGUD
92	150		62	75				4400	4.625	Bantalan 131092X/131150GUD
92	152.4		62	75				4400	4.625	Bantalan 131092X/131152XGUD
92	158.75		62	75				4400	4.625	Bantalan 131092X/131158XGUD
94	152.4		62	75				4400	4.625	Bantalan 131093X/131152XGUD
94	150		62	75				4400	4.625	Bantalan 131093X/131150GUD
94	158.75		62	75				4400	4.625	Bantalan 131093X/131158XGUD
95	150		62	75				4400	4.625	Bantalan 131095/131150GUD
95	152.4		62	75				4400	4.505	Bantalan 131095/131152XGUD
95	158.75		62	75				4400	4.625	Bantalan 131095/131158XGUD
95	170		89	106				4200	8.345	Bantalan 210095/210170GUD
97	152.4		62	75				4400	4.345	Bantalan 131097/131152XGUD
97	150		62	75				4400	4.625	Bantalan 131097/131150GUD
97	158.75		62	75				4400	4.625	Bantalan 131097/131158XGUD
98	152.4		75.8	92				4300	4.95	Bantalan 160098X/160152XGUD
98	158.75		75.8	92				4300	4.95	Bantalan 160098X/160158XGUD
98	160		75.8	92				4300	4.95	Bantalan 160098X/160160GUD
98	161.925		75.8	92				4300	4.95	Bantalan 160098X/160161XGUD
100	170		84	100				3900	11	Bantalan 180100/180170GUD
100	180		84	100				3900	9.1	Bantalan 180100/180180GUD
100	180.975		84	100				3900	11	Bantalan 180100/180180XGUD
100	190		84	100				3900	11	Bantalan 180100/180190GUD
102	165.1		67.96	87				3900	9.16	Bantalan 141101X/141165XGUD
102	170		84	100				3900	11	Bantalan 180101X/180170GUD
102	180		84	100				3900	11	Bantalan 180101X/180180GUD
102	180.975		84	100				3900	9.28	Bantalan 180101X/180180XGUD
102	190		84	100				3900	10.96	Bantalan 180101X/180190GUD
105	170		84	100				3900	11	Bantalan 180105/180170GUD
105	180		84	100				3900	11	Bantalan 180105/180180GUD
105	180.975		84	100				3900	8.82	Bantalan 180105/180180XGUD

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
105	190		84	100				3900	10.5	Bantalan 180105/180190GUD
108	165.1		67.96	87				3900	9.16	Bantalan 141107X/141165XGSUD
111	180.975		82.6	108				3600	8.34	Bantalan 181111X/181180XGUD
111	190		82.6	108				3600	9.95	Bantalan 181111X/181190GUD
111	190.5		82.6	108				3600	10.05	Bantalan 181111X/181190XGUD
111	200.025		82.6	108				3600	8.34	Bantalan 181111X/181200XGUD
115	165		55	65				3900	3.36	Bantalan 105115/105165GUD
115	180.975		82.6	108				3600	7.84	Bantalan 181115/181180XGUD
115	190		82.6	108				3600	9.45	Bantalan 181115/181190GUD
115	190.5		82.6	108				3600	9.55	Bantalan 181115/181190XGUD
115	200.025		82.6	108				3600	8.34	Bantalan 181115/181200XGUD
118	180.975		82.6	108				3600	7.42	Bantalan 181118/181180XGUD
118	190		82.6	108				3600	9.03	Bantalan 181118/181190GUD
118	190.5		82.6	108				3600	9.13	Bantalan 181118/181190XGUD
118	200.025		82.6	108				3600	8.34	Bantalan 181118/181200XGUD
120	165		55	65				3900	3.36	Bantalan 105120/105165GUD
120	190		82.6	108				3500	8.46	Bantalan 184120/184190GUD
120	190.5		82.6	108				3500	8.46	Bantalan 184120/184190XGUD
120	199		82.6	108				3500	8.46	Bantalan 184120/184199GUD
120	200		82.6	108				3500	8.46	Bantalan 184120/184200GUD
127	196.85		85.74	101.6				3400	8.8	Bantalan 164127X/164196XGUD
127	200.025		85.74	101.6				3400	8.8	Bantalan 164127X/164200XGUD
127	215		92	110				3100	13.54	Bantalan 200127X/200215GUD
127	215.9		92	110				3100	13.54	Bantalan 200127X/200215XGUD
133	196.85		85.74	101.6				3400	8.8	Bantalan 164133X/164196XGUD
133	200.025		85.74	101.6				3400	8.8	Bantalan 164133X/164200XGUD
133	215		92	110				3100	13.54	Bantalan 200133X/200215GUD
133	215.9		92	110				3100	12.49	Bantalan 200133X/200215XGUD
137	215		92	110				3100	13.54	Bantalan 200136X/200215GUD
137	215.9		92	110				3100	11.97	Bantalan 200136X/200215XGUD

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
140	215		92	110				3100	13.54	Bantalan 200139X/200215GUD
140	215.9		92	110				3100	13.54	Bantalan 200139X/200215XGUD
140	241.3		104	126				2900	19.86	Bantalan 240139X/240241XGUD
140	200		78	92.3				3100	9.7	Bantalan 161140/161200GSUD
140	200.025		78	92.3				3100	9.7	Bantalan 161140/161200XGSUD
143	200		78	92.3				3100	9.7	Bantalan 161142X/161200GSUD
143	200.025		78	92.3				3100	9.7	Bantalan 161142X/161200XGSUD
145	241.3		104	126				2900	18.78	Bantalan 240145/240241XGUD
145	256		92	110				2700	14.49	Bantalan 203145/203256GUD
149	241.3		104	126				2900	18.78	Bantalan 240149X/240241XGUD
150	210		76	92				3000	9.96	Bantalan 163150/163210GUD
152	222.25		81.2	105				3000	10.73	Bantalan 183152X/183222XGUD
152	254		116.9	155				2600	24.87	Bantalan 281152X/281254XGUD
152	266.7		116.9	155				2600	24.87	Bantalan 281152X/281266XGUD
156	254		116.9	155				2600	24.87	Bantalan 281155X/281254XGUD
156	266.7		116.9	155				2600	24.87	Bantalan 281155X/281266XGUD
156	235		92	110				2700	14.49	Bantalan 203156/203235GUD
165	254		88.96	108				2600	14.9	Bantalan 186165X/186254XGUD
170	254		88.96	108				2600	14.9	Bantalan 186170/186254XGUD
178	227.013		63.48	75				2700	5.93	Bantalan 115177X/115227XGUD
178	254		88.96	108				2600	14.9	Bantalan 186177X/186254XGUD
178	288.925		122.25	154				2300	31.8	Bantalan 280177X/280288XGUD
185	258		90	110				2500	11.94	Bantalan 187185/187258GUD
190	266.7		94.14	113.18				2400	15	Bantalan 204190/204266XGUD
191	266.7		94.14	113.18				2400	15	Bantalan 204190X/204266XGUD
191	282.575		91.42	120				2300	19.3	Bantalan 242190X/242282XGUD
191	290		96	114				2200	17	Bantalan 206190X/206290GUD
203	310		121.07	156				2100	32	Bantalan 283203X/283310GUD
203	317.5		121.07	156				2100	35.3	Bantalan 283203X/283317XGUD
210	290		96	114				2200	17	Bantalan 206210/206290GUD

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
210	310		121.07	156				2100	31.2	Bantalan 283210/283310GUD
210	317.5		121.07	156				2100	34.5	Bantalan 283210/283317XGUD
216	355.6		124.72	166				1900	50	Bantalan 284215X/284355XGUD
229	355.6		124.72	166				1900	50	Bantalan 284228X/284355XGUD
230	327.025		90.24	122				1900	23	Bantalan 244230/244327XGUD
230	330		90.24	122				1900	26.84	Bantalan 244230/244330GUD
235	327.025		90.24	122				1900	20	Bantalan 244234X/244327XGUD
235	330		90.24	122				1900	26.8	Bantalan 244234X/244330GUD
235	355.6		124.72	166				1900	47.43	Bantalan 284234X/284355XGUD
254	400.05		114.24	146				1700	53.98	Bantalan 382254X/382400XGUD
275	406.4		140	176				1600	65.94	Bantalan 320275/320406XGUD
280	406.4		140	176				1600	63.18	Bantalan 320280X/320406XGUD
330	482.6		158.72	200				1400	104	Bantalan 380330X/380482XGUD
338	419.1		79	94				1500	30.4	Bantalan 152338X/152419XGUD
356	482.6		100.55	145				1400	57.3	Bantalan 282355X/282482XGUD
381	508		147	187				1300	79.2	Bantalan 303381X/303508XGUD
406	549.275		152.36	200				1200	96.8	Bantalan 323406XS/323549XGSUD
432	533.4		100.78	123				1200	44.7	Bantalan 232431X/232533XGUD
457	596.9		147	187				1100	94.3	Bantalan 300457X/300596XGUD
506	636		147	187				1000	115	Bantalan 307506/307636GUD
25	52		36.5	43				13300	0.48	Bantalan 74025/74052HUWF
30	62		42.5	51				11600	0.66	Bantalan 70030/70062HUWF
30	66.675		42.48	52				10400	0.8	Bantalan 80030/80066XHUWF
30	68		42.48	52				10400	0.8	Bantalan 80030/80068HUWF
32	72		46.5	57				9600	0.86	Bantalan 100031X/100072HUWF
32	76.2		46.5	57				9600	0.86	Bantalan 100031X/100076XHUWF
32	80		46.5	57				9600	0.86	Bantalan 100031X/100080HUWF
33	66.675		42.48	52				10400	0.8	Bantalan 80033X/80066XHUWF
33	68		42.48	52				10400	0.8	Bantalan 80033X/80068HUWF
35	72		46.5	57				9600	0.86	Bantalan 100034X/100072HUWF

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
35	76.2		46.5	57				9600	0.86	Bantalan 100034X/100076XHUWF
35	80		46.5	57				9600	0.86	Bantalan 100034X/100080HUWF
35	66.675		42.48	52				10400	0.74	Bantalan 80035/80066XHUWF
35	72		46.5	57				9600	0.855	Bantalan 100035/100072HUWF
35	76.2		46.5	57				9600	0.86	Bantalan 100035/100076XHUWF
35	80		46.5	57				9600	0.86	Bantalan 100035/100080HUWF
36	72		36.5	42				9600	0.595	Bantalan 102036/102072HUWF
38	76		45.5	57				8800	0.865	Bantalan 101038X/101076HUWF
38	76.2		45.5	57				8800	0.865	Bantalan 101038X/101076XHUWF
38	80		45.5	57				8800	0.865	Bantalan 101038X/101080HUWF
40	76		45.5	57				8800	0.865	Bantalan 101040/101076HUWF
40	76.2		45.5	57				8800	0.865	Bantalan 101040/101076XHUWF
40	80		45.5	57				8800	1.07	Bantalan 101040/101080HUWF
40	85		48.66	55				8200	1.13	Bantalan 112040/112085HUWF
41	76		45.5	57				8800	0.865	Bantalan 101041X/101076HUWF
41	76.2		45.5	57				8800	0.865	Bantalan 101041X/101076XHUWF
41	80		45.5	57				8800	0.865	Bantalan 101041X/101080HUWF
41	85		48.66	55				8200	1.11	Bantalan 112041X/112085HUWF
44	85		48.66	55				8200	1.11	Bantalan 112044X/112085HUWF
44	85		55.66	62				8200	1.19	Bantalan 119044X/119085HUWF
44	88.9		55.66	62				8200	1.19	Bantalan 119044X/119088XHUWF
44	90		51.3	64				7400	1.38	Bantalan 111044X/111090HUWF
44	93.266		51.3	64				7400	1.38	Bantalan 111044X/111093XHUWF
45	85		48.66	55				8200	1.11	Bantalan 112045/112085HUWF
45	85		55.66	62				8200	1.19	Bantalan 119045/119085HUWF
45	88.9		55.66	62				8200	1.19	Bantalan 119045/119088XHUWF
50	90		51.3	64				7400	1.38	Bantalan 111050/111090HUWF
50	93.266		51.3	64				7400	1.38	Bantalan 111050/111093XHUWF
50	96.838		54	65				6900	2.005	Bantalan 110050/110096XHUWF
50	98.425		54	65				6900	2.005	Bantalan 110050/110098XHUWF

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
50	100		54	65				6900	2.005	Bantalan 110050/110100HUWF
51	90		51.3	64				7400	1.38	Bantalan 111050X/111090HUWF
51	96.838		54	65				6900	2.005	Bantalan 110050X/110096XHUWF
51	98.425		54	65				6900	2.005	Bantalan 110050X/110098XHUWF
51	100		54	65				6900	2.005	Bantalan 110050X/110100HUWF
54	96.838		54	65				6900	2.005	Bantalan 110053X/110096XHUWF
54	98.425		54	65				6900	2.005	Bantalan 110053X/110098XHUWF
54	100		54	65				6900	2.005	Bantalan 110053X/110100HUWF
55	96.838		54	65				6900	2.005	Bantalan 110055/110096XHUWF
55	98.425		54	65				6900	2.005	Bantalan 110055/110098XHUWF
55	100		54	65				6900	1.825	Bantalan 110055/110100HUWF
57	96.838		54	65				6900	2.005	Bantalan 110057X/110096XHUWF
57	96.838		54	65				6900	2.005	Bantalan 110057X/110098XHUWF
57	100		54	65				6900	2.005	Bantalan 110057X/110100HUWF
57	100		46.88	58				6600	1.9	Bantalan 113057X/113100HUWF
57	101.6		46.88	58				6600	1.9	Bantalan 113057X/113101XHUWF
57	110		60.3	73				6200	2.47	Bantalan 120057X/120110HUWF
57	112.712		60.3	73				6200	2.47	Bantalan 120057X/120112XHUWF
60	100		46.88	58				6600	1.9	Bantalan 113060/113100HUWF
60	101.6		46.88	58				6600	1.9	Bantalan 113060/113101XHUWF
60	110		60.3	73				6200	2.47	Bantalan 120060/120110HUWF
60	112.712		60.3	73				6200	2.47	Bantalan 120060/120112XHUWF
60	120		59.88	71				5700	2.96	Bantalan 130060/130120HUWF
60	127		59.88	71				5700	2.96	130060/130127 Bantalan HUWF
60	100		46.88	58				6600	1.9	Bantalan 113060X/113100HUWF
60	101.6		46.88	58				6600	1.9	Bantalan 113060X/113101XHUWF
64	110		60.3	73				6200	2.29	Bantalan 120063X/120110HUWF
64	120		59.88	71				5700	2.96	Bantalan 130063X/130120HUWF
64	127		59.88	71				5700	2.96	Bantalan 130063X/130127HUWF
65	120		59.88	71				5700	2.96	Bantalan 130065/130120HUWF

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
65	127		59.88	71				5700	2.96	130065/130127 Bantalan HUWF
70	127		59.88	71				5700	2.96	Bantalan 130069X/130127HUWF
70	112.712		60.3	73				5800	2.085	Bantalan 124069X/124112XHUWF
70	120		59.88	71				5700	2.71	Bantalan 130069X/130120HUWF
70	120		73.12	89				5700	2.79	Bantalan 135069X/135120HUWF
70	112.712		60.3	73				5800	2.085	Bantalan 124070/124112XHUWF
70	120		59.88	71				5700	2.7	Bantalan 130070/130120HUWF
70	127		59.88	71				5700	2.96	130070/130127 Bantalan HUWF
73	120		49.7	64				5500	2.35	Bantalan 123073X/123120HUWF
73	120.65		49.7	64				5500	2.35	Bantalan 123073X/123120XHUWF
73	121.444		49.7	64				5500	2.35	Bantalan 123073X/123121XHUWF
73	123.825		49.7	64				5500	2.35	Bantalan 123073X/123123XHUWF
75	120		49.7	64				5500	2.25	Bantalan 123075/123120HUWF
75	120.65		49.7	64				5500	2.25	Bantalan 123075/123120XHUWF
75	121.444		49.7	64				5500	2.25	Bantalan 123075/123121XHUWF
75	123.825		49.7	64				5500	2.25	Bantalan 123075/123123XHUWF
75	127		60.5	73				5300	3.3	133075/133127 Bantalan HUWF
75	130		60.5	73				5300	3.3	Bantalan 133075/133130HUWF
75	133.35		60.5	73				5300	3.3	Bantalan 133075/133133XHUWF
75	136.525		60.5	73				5300	3.3	Bantalan 133075/133136XHUWF
76	120		49.7	64				5500	2.25	Bantalan 123076X/123120HUWF
76	120.65		49.7	64				5500	2.25	Bantalan 123076X/123120XHUWF
76	123.825		49.7	64				5500	2.25	Bantalan 123076X/123123XHUWF
76	127		60.5	73				5300	3.3	Bantalan 133076X/133127HUWF
76	130		60.5	73				5300	3.3	Bantalan 133076X/133130HUWF
76	133.35		60.5	73				5300	3.3	Bantalan 133076X/133133XHUWF
76	136.525		60.5	73				5300	3.3	Bantalan 133076X/133136XHUWF
78	120		49.7	64				5500	2.25	Bantalan 123077X/123120HUWF
78	120.65		49.7	64				5500	2.25	Bantalan 123077X/123120XHUWF
78	121.444		49.7	64				5500	2.25	Bantalan 123077X/123121XHUWF

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
78	123.825		49.7	64				5500	2.25	Bantalan 123077X/123123XHUWF
80	140		69.14	85				4900	4.545	Bantalan 140080/140140HUWF
81	133.35		58.12	74				4900	2.25	Bantalan 126080X/126133XHUWF
83	133.35		58.12	74				4900	2.25	Bantalan 126082X/126133XHUWF
83	136.525		58.12	74				4900	2.25	Bantalan 126082X/126136XHUWF
83	140		69.14	85				4900	4.345	Bantalan 140082X/140140HUWF
84	133.35		58.12	74				4900	2.4	Bantalan 126084X/126133XHUWF
84	136.525		58.12	74				4900	2.4	Bantalan 126084X/126136XHUWF
85	140		69.14	85				4900	4.145	Bantalan 140085/140140HUWF
85	170		89	106				4200	8.545	Bantalan 210085/210170HUWF
86	133.35		58.12	74				4900	2.4	Bantalan 126085X/126133XHUWF
86	136.525		58.12	74				4900	2.4	Bantalan 126085X/126136XHUWF
89	133.35		58.12	74				4900	2.4	Bantalan 126088X/126133XHUWF
89	136.525		58.12	74				4900	2.4	Bantalan 126088X/126136XHUWF
90	133.35		60.12	76				4800	4	Bantalan 117090/117133XHUWF
90	150		62	75				4400	4.745	Bantalan 131090/131150HUWF
90	152.4		62	75				4400	4.745	Bantalan 131090/131152XHUWF
90	152.4		75.8	92				4300	5.15	Bantalan 160090/160152XHUWF
90	158.75		62	75				4400	4.745	Bantalan 131090/131158XHUWF
90	158.75		75.8	92				4300	5.15	Bantalan 160090/160158XHUWF
90	160		75.8	92				4300	5.15	Bantalan 160090/160160HUWF
90	161.925		75.8	92				4300	5.15	Bantalan 160090/160161XHUWF
90	170		89	106				4200	8.545	Bantalan 210090/210170HUWF
92	150		62	75				4400	4.745	Bantalan 131092X/131150HUWF
92	152.4		62	75				4400	4.745	Bantalan 131092X/131152XHUWF
92	158.75		62	75				4400	4.745	Bantalan 131092X/131158XHUWF
94	150		62	75				4400	4.745	Bantalan 131093X/131150HUWF
94	152.4		62	75				4400	4.745	Bantalan 131093X/131152XHUWF
94	158.75		62	75				4400	4.745	Bantalan 131093X/131158XHUWF
95	150		62	75				4400	4.745	Bantalan 131095/131150HUWF

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
95	152.4		62	75				4400	4.625	Bantalan 131095/131152XHUWF
95	158.75		62	75				4400	4.745	Bantalan 131095/131158XHUWF
95	170		89	106				4200	8.545	Bantalan 210095/210170HUWF
97	150		62	75				4400	4.745	Bantalan 131097/131150HUWF
97	152.4		62	75				4400	4.465	Bantalan 131097/131152XHUWF
97	158.75		62	75				4400	4.745	Bantalan 131097/131158XHUWF
98	152.4		75.8	92				4300	5.15	Bantalan 160098X/160152XHUWF
98	158.75		75.8	92				4300	5.15	Bantalan 160098X/160158XHUWF
98	160		75.8	92				4300	5.15	Bantalan 160098X/160160HUWF
98	161.925		75.8	92				4300	5.15	Bantalan 160098X/160161XHUWF
100	170		84	100				3900	9.52	Bantalan 180100/180170HUWF
100	180		84	100				3900	9.42	Bantalan 180100/180180HUWF
100	180.975		84	100				3900	9.52	Bantalan 180100/180180XHUWF
100	190		84	100				3900	11.12	Bantalan 180100/180190HUWF
102	165.1		67.96	87				3900	9.4	Bantalan 141101X/141165XHUWF
102	170		84	100				3900	9.52	Bantalan 180101X/180170HUWF
102	180		84	100				3900	9.52	Bantalan 180101X/180180HUWF
102	180.975		84	100				3900	9.52	Bantalan 180101X/180180XHUWF
102	190		84	100				3900	11.08	Bantalan 180101X/180190HUWF
105	170		84	100				3900	9.52	Bantalan 180105/180170HUWF
105	180		84	100				3900	9.52	Bantalan 180105/180180HUWF
105	180.975		84	100				3900	9.06	Bantalan 180105/180180XHUWF
105	190		84	100				3900	10.62	Bantalan 180105/180190HUWF
108	165.1		67.96	87				3900	9.4	Bantalan 141107X/141165XHSUWF
111	180.975		82.6	108				3600	8.6	Bantalan 181111X/181180XHUWF
111	190		82.6	108				3600	10.1	Bantalan 181111X/181190HUWF
111	190.5		82.6	108				3600	10.4	Bantalan 181111X/181190XHUWF
111	200.025		82.6	108				3600	8.6	Bantalan 181111X/181200XHUWF
115	165		55	65				3900	3.45	Bantalan 105115/105165HUWF
115	180.975		82.6	108				3600	8.1	Bantalan 181115/181180XHUWF

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
115	190		82.6	108				3600	9.6	Bantalan 181115/181190HUWF
115	190.5		82.6	108				3600	9.9	Bantalan 181115/181190XHUWF
115	200.025		82.6	108				3600	8.6	Bantalan 181115/181200XHUWF
118	180.975		82.6	108				3600	7.68	Bantalan 181118/181180XHUWF
118	190		82.6	108				3600	9.18	Bantalan 181118/181190HUWF
118	190.5		82.6	108				3600	9.48	Bantalan 181118/181190XHUWF
118	200.025		82.6	108				3600	8.6	Bantalan 181118/181200XHUWF
120	165		55	65				3900	3.45	Bantalan 105120/105165HUWF
120	190		82.6	108				3500	8.8	Bantalan 184120/184190HUWF
120	190.5		82.6	108				3500	8.8	Bantalan 184120/184190XHUWF
120	199		82.6	108				3500	8.8	184120/184199 Bantalan HUWF
120	200		82.6	108				3500	8.8	Bantalan 184120/184200HUWF
127	196.85		85.74	101.6				3400	9.2	Bantalan 164127X/164196XHUWF
127	200.025		85.74	101.6				3400	9.2	Bantalan 164127X/164200XHUWF
127	215		92	110				3100	13.9	Bantalan HUWF 200127X/200215
127	215.9		92	110				3100	13.9	Bantalan 200127X/200215XHUWF
133	196.85		85.74	101.6				3400	9.2	Bantalan 164133X/164196XHUWF
133	196.85		76.74	92.6				3400	8.5	Bantalan 164133X/164196XHSUWF
133	200.025		85.74	101.6				3400	9.2	Bantalan 164133X/164200XHUWF
133	215		92	110				3100	13.9	Bantalan HUWF 200133X/200215
133	215.9		92	110				3100	12.85	Bantalan 200133X/200215XHUWF
137	215		92	110				3100	13.9	Bantalan HUWF 200136X/200215
137	215.9		92	110				3100	12.33	Bantalan 200136X/200215XHUWF
140	215		92	110				3100	13.9	Bantalan HUWF 200139X/200215
140	215.9		92	110				3100	13.9	Bantalan 200139X/200215XHUWF
140	241.3		104	126				2900	20.485	Bantalan 240139X/240241XHUWF
140	200		78	92.3				3100	10	Bantalan 161140/161200HSUWF
140	200.025		78	92.3				3100	10	Bantalan 161140/161200XHSUWF
143	200		78	92.3				3100	10	Bantalan 161142X/161200HSUWF
143	200.025		78	92.3				3100	10	Bantalan 161142X/161200XHSUWF

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
145	241.3		104	126				2900	19.405	Bantalan 240145/240241XHUWF
145	256		92	110				2700	14.87	203145/203256 Bantalan HUWF
149	241.3		104	126				2900	20.485	Bantalan 240149X/240241XHUWF
150	210		76	92				3000	10.2	Bantalan 163150/163210HUWF
152	222.25		81.2	105				3000	11.15	Bantalan 183152X/183222XHUWF
152	254		116.9	155				2600	25.6	Bantalan 281152X/281254XHUWF
152	266.7		116.9	155				2600	25.6	Bantalan 281152X/281266XHUWF
156	254		116.9	155				2600	25.6	Bantalan 281155X/281254XHUWF
156	266.7		116.9	155				2600	25.6	Bantalan 281155X/281266XHUWF
156	235		92	110				2700	14.87	203156/203235 Bantalan HUWF
165	254		88.96	108				2600	15	Bantalan 186165X/186254XHUWF
170	254		88.96	108				2600	15	Bantalan 186170/186254XHUWF
178	227.013		63.48	75				2700	6.15	Bantalan 115177X/115227XHUWF
178	254		88.96	108				2600	15	Bantalan 186177X/186254XHUWF
178	288.925		122.25	154				2300	32.6	Bantalan 280177X/280288XHUWF
185	258		90	110				2500	12.3	187185/187258 Bantalan HUWF
190	266.7		94.14	113.18				2400	15.5	Bantalan 204190/204266XHUWF
191	266.7		94.14	113.18				2400	15.5	Bantalan 204190X/204266XHUWF
191	282.575		91.42	120				2300	20	Bantalan 242190X/242282XHUWF
191	290		96	114				2200	17.3	Bantalan 206190X/206290HUWF
203	310		121.08	156				2100	32.8	Bantalan 283203X/283310HUWF
203	317.5		121.08	156				2100	36.3	Bantalan 283203X/283317XHUWF
210	290		96	114				2200	17.3	Bantalan 206210/206290HUWF
210	310		121.08	156				2100	32	283210/283310 Bantalan HUWF
210	317.5		121.08	156				2100	35.5	Bantalan 283210/283317XHUWF
216	355.6		124.72	166				1900	51	Bantalan 284215X/284355XHUWF
229	355.6		124.72	166				1900	51	Bantalan 284228X/284355XHUWF
230	327.025		90.24	122				1900	23.2	Bantalan 244230/244327XHUWF
230	330		90.24	122				1900	27.35	Bantalan 244230/244330HUWF
235	327.025		90.24	122				1900	21	Bantalan 244234X/244327XHUWF

Dimensi dasar					Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar					dinamis	statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
235	330		90.24	122				1900	27	Bantalan 244234X/244330HUWF
235	355.6		124.72	166				1900	48.43	Bantalan 284234X/284355XHUWF
254	400.05		114.24	146				1700	55.5	Bantalan 382254X/382400XHUWF
275	406.4		140	176				1600	67.6	Bantalan 320275/320406XHUWF
280	406.4		140	176				1600	64.84	Bantalan 320280X/320406XHUWF
330	482.6		157.73	200				1400	105	Bantalan 380330X/380482XHUWF
338	419.1		79	94				1500	30.9	Bantalan 152338X/152419XHUWF
356	482.6		100.55	145				1400	58.7	Bantalan 282355X/282482XHUWF
381	508		147	187				1300	80	Bantalan 303381X/303508XHUWF
406	549.275		152.36	200				1200	98.25	Bantalan 323406XS/323549XHSUWF
432	533.4		100.78	123				1200	45	Bantalan 232431X/232533XHUWF
457	596.9		147	187				1100	95	Bantalan 300457X/300596XHUWF
506	636		147	187				1000	116	307506/307636HUWF Bantalan

Rekayasa Masa Depan Gerak

Tentang UKL

Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China BT2B 332504/HA2 -Bantalan Rol Tirus Baris Ganda suppliers and OEM/ODM BT2B 332504/HA2 -Bantalan Rol Tirus Baris Ganda company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

Lebih Banyak Tentang Kami Ukl Bearing Manufacturing Co.,Ltd

0+

tahun

Pengalaman Industri
0+

Keberagaman model
0+

Jumlah Karyawan
0

$

Nilai ekspor tahunan

Sertifikat Kehormatan

Berita

Mengapa Bantalan Rol Silinder NU 309 Unggul dalam Desain Motor dan Gearbox?
04 Jun, 2026
Poin Utama: Bearing NU 309 Unggul sebagai Bearing Mengambang Untuk desain motor dan girboks yang memerlukan pemuaian panas pada poros, maka bantalan NU 309 memberikan s...

BACA LEBIH LANJUT
Cara Memasang Cincin AV Nilos 2206 (Panduan Langkah demi Langkah)
28 May, 2026
Pasang dengan sisi terbuka menghadap bantalan Untuk menginstal dengan benar 2206 AV Nilos Ring, posisikan sehingga sisi cembung (terbuka) mengarah ke jalur bantalan. Cin...

BACA LEBIH LANJUT
Bagaimana Cara Memilih Bantalan Bola Kontak Sudut yang Tepat untuk Aplikasi Kecepatan Tinggi?
21 May, 2026
Memilih komponen rolling yang optimal untuk mesin berputar berkecepatan tinggi memerlukan pemahaman mendalam tentang kondisi pengoperasian, geometri internal, dan manajemen termal. Di antara mesin ...

BACA LEBIH LANJUT
Presisi Di Bawah Tekanan: Faktor Kunci yang Mendorong Pemilihan Bantalan Peralatan Medis
14 May, 2026
Dalam bidang teknologi medis yang berkembang pesat, komponen terkecil sekalipun dapat menentukan keberhasilan alat penyelamat jiwa. Diantaranya, bantalan peralatan medis memainkan per...

BACA LEBIH LANJUT
