22205 E Bantalan

Keuntungan dan Aplikasi Bantalan Rol Bulat (SRB)
Bantalan Rol Bulat (SRB) adalah elemen penggulung sangat kuat yang dirancang untuk aplikasi berat.

Hubungi Kami

PRAV：No previous product BERIKUTNYA：Tidak ada produk berikutnya

Deskripsi
Spesifikasi
Hubungi Kami

Fitur dan Keunggulan Utama
·Kapasitas Beban Radial Tinggi: Mereka memiliki kapasitas dukung beban radial yang besar. Mereka dapat dipasang langsung ke poros silinder atau dipasang menggunakan selongsong adaptor atau selongsong penarikan.
· Kemampuan Menyelaraskan Diri: Karena lingkar luarnya memiliki jalur berbentuk bola, bantalan tersebut memiliki sifat menyelaraskan diri yang melekat. Hal ini memungkinkan bantalan untuk mengkompensasi kesalahan penyelarasan (kesalahan koaksialitas) dan tetap tidak terpengaruh oleh ketidaksejajaran antara poros dan rumahan atau defleksi/pembengkokan poros.
·Kapasitas Beban Aksial: Mereka mampu mengakomodasi tingkat beban aksial tertentu.
·Desain Struktural: Mereka menampilkan dua baris rol berbentuk tong (bola). Cincin luar memiliki satu jalur bulat cekung yang umum, dan cincin bagian dalam memiliki dua jalur cekung yang miring pada sudut terhadap sumbu bantalan. Pusat kelengkungan lintasan lingkar luar bertepatan dengan pusat bantalan.
·Kapasitas Beban Gabungan dan Dinamis: Selain mengakomodasi beban radial, mereka juga dapat menahan beban aksial dua arah dan beban gabungannya. Mereka menawarkan kapasitas angkut beban yang besar sekaligus memberikan ketahanan yang baik terhadap getaran dan beban kejut.

Bidang Aplikasi (Industri Primer)
Bantalan Rol Bulat diterapkan secara luas di berbagai peralatan mekanis di seluruh industri, menjadikannya komponen penting di sektor permesinan:
·Industri Baja
·Pertambangan
·Pabrik Kertas
·Kelautan/Pengiriman
·Mesin Tekstil
·Penghancur Batubara (Pabrik Penggilingan)
·Pembangkit Listrik (Tenaga Listrik)
·Industri Berat Lainnya

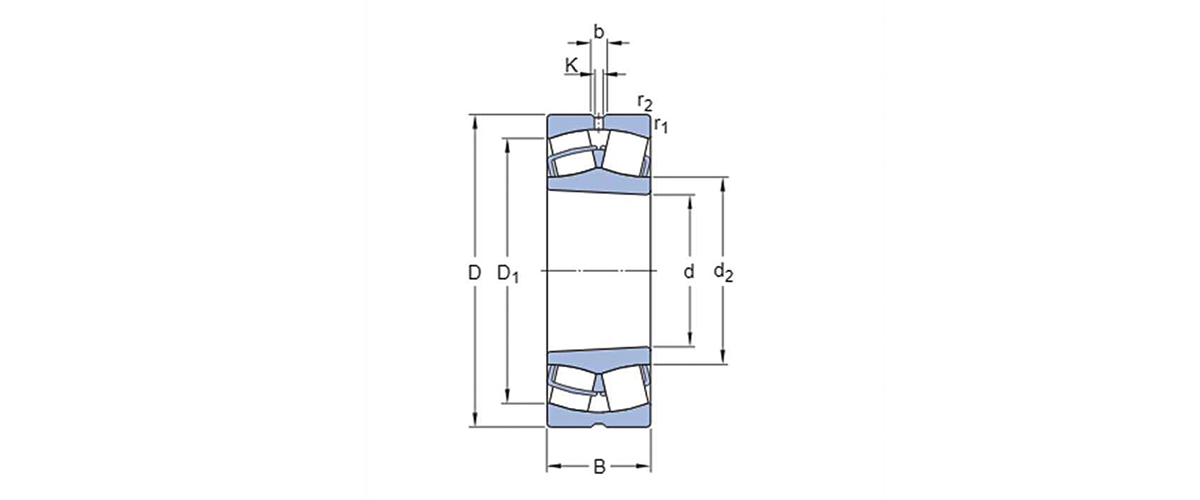

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
20	52	18	44.91	39.6	11700	15300	0.28	22205 E Bantalan
25	62	17	44.19	37.35	8370	10800	0.27	21305 Bantalan CC
25	52	18	44.91	39.6	11700	15300	0.18	22205 E Bantalan
25	52	18	44.91	39.6	11700	15300	0.17	22205 EK Bantalan
25	52	23	44.91	39.6		5490	0.26	Bantalan BS2-2205-2RS/VT143
30	72	19	59.13	54.9	7380	9000	0.41	21306 Bantalan CC
30	62	20	59.49	54	9000	12600	0.28	22206 E Bantalan
30	62	20	59.49	54	9000	12600	0.28	22206 EK Bantalan
30	62	25	59.49	54		4590	0.34	Bantalan BS2-2206-2RS/VT143
35	80	21	71.28	64.8	6570	8550	0.54	21307 Bantalan CC
35	72	23	79.92	76.5	8100	10800	0.44	22207 Bantalan E
35	72	23	79.92	76.5	8100	10800	0.43	22207 Bantalan EK
35	72	28	79.92	76.5		3870	0.52	Bantalan BS2-2207-2RS/VT143
40	90	23	96.3	97.2	6300	8550	0.74	21308 E Bantalan
40	90	23	96.3	97.2	6300	8550	0.74	21308 EK Bantalan
40	80	23	88.65	81	7200	9900	0.53	22208 E Bantalan
40	80	23	88.65	81	7200	9900	0.52	22208 EK Bantalan
40	90	33	139.5	126	5400	7200	1	22308 E Bantalan
40	90	33	139.5	126	5400	7200	1.05	Bantalan 22308 E/VA405
40	90	33	139.5	126	5400	7200	0.99	22308 EK Bantalan
40	80	28	88.65	81		3510	0.57	Bantalan BS2-2208-2RS/VT143
40	80	28	88.65	81		3510	0.55	Bantalan BS2-2208-2RSK/VT143
40	90	38	139.5	126		3510	1.2	Bantalan BS2-2308-2RS/VT143
45	100	25	116.1	114.3	5670	7650	0.98	21309 E Bantalan
45	100	25	116.1	114.3	5670	7650	0.97	21309 EK Bantalan
45	85	23	93.6	88.2	6750	9000	0.57	22209 E Bantalan
45	85	23	93.6	88.2	6750	9000	0.56	22209 EK Bantalan
45	100	36	171	164.7	4770	6300	1.4	22309 E Bantalan
45	100	36	171	164.7	4770	6300	1.4	Bantalan 22309 E/VA405
45	100	36	171	164.7	4770	6300	1.35	22309 EK Bantalan

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
45	85	28	93.6	88.2		3150	0.66	Bantalan BS2-2209-2RS/VT143
45	85	28	93.6	88.2		3150	0.66	Bantalan BS2-2209-2RSK/VT143
45	100	42	171	164.7		3060	1.6	Bantalan BS2-2309-2RS/VT143
50	110	27	143.1	149.4	5040	6750	1.3	21310 E Bantalan
50	110	27	143.1	149.4	5040	6750	1.3	21310 EK Bantalan
50	90	23	96.3	97.2	6300	8550	0.62	22210 E Bantalan
50	90	23	96.3	97.2	6300	8550	0.61	22210 EK Bantalan
50	110	40	205.2	201.6	4320	5670	1.85	22310 E Bantalan
50	110	40	205.2	201.6	4320	5670	1.9	Bantalan 22310 E/VA405
50	110	40	205.2	201.6	4320	5670	1.8	22310 EK Bantalan
50	90	28	96.3	97.2		2880	0.7	Bantalan BS2-2210-2RS/VT143
50	90	28	96.3	97.2		2880	0.7	Bantalan BS2-2210-2RSK/VT143
50	110	45	205.2	201.6		2700	2.1	Bantalan BS2-2310-2RS/VT143
55	120	29	143.1	149.4	5040	6750	1.7	21311 E Bantalan
55	120	29	143.1	149.4	5040	6750	1.65	21311 EK Bantalan
55	100	25	116.1	114.3	5670	7650	0.83	22211 E Bantalan
55	100	25	116.1	114.3	5670	7650	0.81	22211 EK Bantalan
55	120	43	252	252	3870	5040	2.35	22311 E Bantalan
55	120	43	252	252	3870	5040	2.45	Bantalan 22311 E/VA405
55	120	43	252	252	3870	5040	2.3	22311 EK Bantalan
55	120	43	252	252	3870	5040	2.4	Bantalan 22311 EK/VA405
55	100	31	116.1	114.3		2610	1	Bantalan BS2-2211-2RS/VT143
55	100	31	116.1	114.3		2610	1	Bantalan BS2-2211-2RSK/VT143
55	120	49	252	252		2520	2.8	Bantalan BS2-2311-2RS/VT143
60	130	31	195.3	216	4320	5670	2.05	21312 E Bantalan
60	130	31	195.3	216	4320	5670	2.05	21312 EK Bantalan
60	110	28	143.1	149.4	5040	6750	1.15	22212 Bantalan E
60	110	28	143.1	149.4	5040	6750	1.15	22212 EK Bantalan
60	130	46	292.5	301.5	3600	4770	2.95	22312 Bantalan E
60	130	46	292.5	301.5	3600	4770	3.1	Bantalan 22312 E/VA405

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
60	130	46	292.5	301.5	3600	4770	2.9	22312 EK Bantalan
60	130	46	292.5	301.5	3600	4770	3.05	Bantalan 22312 EK/VA405
60	110	34	143.1	149.4		2430	1.3	Bantalan BS2-2212-2RS/VT143
60	110	34	143.1	149.4		2430	1.3	Bantalan BS2-2212-2RSK/VT143
60	130	53	292.5	301.5		2250	3.4	Bantalan BS2-2312-2RS/VT143
65	140	33	218.7	243	3870	5400	2.55	21313 E Bantalan
65	140	33	218.7	243	3870	5400	2.5	21313 EK Bantalan
65	120	31	178.2	194.4	4500	6300	1.55	22213 E Bantalan
65	120	31	178.2	194.4	4500	6300	1.5	22213 EK Bantalan
65	140	48	321.3	324	3420	4500	3.5	22313 E Bantalan
65	140	48	321.3	324	3420	4500	3.75	Bantalan 22313 E/VA405
65	140	48	321.3	324	3420	4500	3.45	22313 EK Bantalan
65	140	48	321.3	324	3420	4500	3.65	Bantalan 22313 EK/VA405
65	100	35	123.3	155.7	3870	5670	0.94	Bantalan 24013 CC/W33
65	100	35	123.3	155.7	3870	5670	0.93	Bantalan 24013 CCK30/W33
65	100	35	123.3	155.7		2340	0.95	Bantalan 24013-2RS5W/VT143
65	120	38	178.2	194.4		2160	1.6	Bantalan BS2-2213-2RS/VT143
65	120	38	178.2	194.4		2160	1.6	Bantalan BS2-2213-2RSK/VT143
65	140	56	321.3	324		2160	4.15	Bantalan BS2-2313-2RS/VT143
70	150	35	261.9	292.5	3600	5040	3.15	21314 E Bantalan
70	150	35	261.9	292.5	3600	5040	3.1	21314 EK Bantalan
70	125	31	191.7	205.2	4500	6030	1.6	22214 Bantalan E
70	125	31	191.7	205.2	4500	6030	1.6	22214 EK Bantalan
70	150	51	371.7	387	3060	4050	4.3	22314 E Bantalan
70	150	51	371.7	387	3060	4050	4.55	Bantalan 22314 E/VA405
70	150	51	371.7	387	3060	4050	4.25	22314 EK Bantalan
70	150	51	371.7	387	3060	4050	4.45	Bantalan 22314 EK/VA405
70	125	38	191.7	205.2		2070	1.8	Bantalan BS2-2214-2RS/VT143
70	125	38	191.7	205.2		2070	1.8	Bantalan BS2-2214-2RSK/VT143
70	150	60	371.7	387		1890	5.1	Bantalan BS2-2314-2RS/VT143

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
75	160	37	261.9	292.5	3600	5040	3.8	21315 E Bantalan
75	160	37	261.9	292.5	3600	5040	3.75	21315 EK Bantalan
75	130	31	195.3	216	4320	5670	1.7	22215 Bantalan E
75	130	31	195.3	216	4320	5670	1.65	22215 EK Bantalan
75	160	55	415.8	427.5	2880	3870	5.25	22315 E Bantalan
75	160	55	415.8	427.5	2880	3870	5.55	22315 Bantalan EJA/VA405
75	160	55	415.8	427.5	2880	3870	5.15	22315 EK Bantalan
75	160	55	415.8	427.5	2880	3870	5.45	22315 Bantalan EKJA/VA405
75	115	40	162.9	208.8	3420	4770	1.4	Bantalan 24015 CC/W33
75	115	40	162.9	208.8	3420	4770	1.4	Bantalan 24015 CCK30/W33
75	115	40	162.9	208.8		2070	1.55	Bantalan 24015-2RS5/VT143
75	130	38	195.3	216		1980	2.1	Bantalan BS2-2215-2RS/VT143
75	130	38	195.3	216		1980	2.1	Bantalan BS2-2215-2RSK/VT143
75	160	64	415.8	427.5		1890	6.5	Bantalan BS2-2315-2RS/VT143
75	160	64	415.8	427.5		1890	6.5	Bantalan BS2-2315-2RSK/VT143
80	170	39	297.9	337.5	3420	4770	4.55	21316 E Bantalan
80	170	39	297.9	337.5	3420	4770	4.5	21316 EK Bantalan
80	140	33	218.7	243	3870	5400	2.1	22216 E Bantalan
80	140	33	218.7	243	3870	5400	2.05	22216 EK Bantalan
80	170	58	464.4	477	2700	3600	6.25	22316 E Bantalan
80	170	58	464.4	477	2700	3600	6.6	22316 Bantalan EJA/VA405
80	170	58	464.4	477	2700	3600	6.15	22316 EK Bantalan
80	170	58	464.4	477	2700	3600	6.45	22316 Bantalan EKJA/VA405
80	140	40	218.7	243		1800	2.4	Bantalan BS2-2216-2RS/VT143
80	140	40	218.7	243		1800	2.4	Bantalan BS2-2216-2RSK/VT143
80	170	67	464.4	477		1800	7.2	Bantalan BS2-2316-2RS/VT143
80	170	67	464.4	477		1800	6.75	Bantalan BS2-2316-2RSK/VT143
85	180	41	297.9	337.5	3420	4770	5.35	21317 Bantalan E
85	180	41	297.9	337.5	3420	4770	5.3	21317 EK Bantalan
85	150	36	261.9	292.5	3600	5040	2.7	22217 Bantalan E

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
85	150	36	261.9	292.5	3600	5040	2.65	22217 Bantalan EK
85	180	60	519.3	558	2520	3420	7.3	22317 Bantalan E
85	180	60	519.3	558	2520	3420	7.65	22317 Bantalan EJA/VA405
85	180	60	519.3	558	2520	3420	7.65	22317 Bantalan EJA/VA406
85	180	60	519.3	558	2520	3420	7.2	22317 Bantalan EK
85	180	60	519.3	558	2520	3420	7.5	22317 Bantalan EKJA/VA405
85	150	44	261.9	292.5		1710	3	Bantalan BS2-2217-2RS/VT143
85	150	44	261.9	292.5		1710	3	Bantalan BS2-2217-2RSK/VT143
85	180	69	519.3	558		1710	8.2	Bantalan BS2-2317-2RSK/VT143
90	190	43	353.7	405	3240	4320	6.25	21318 E Bantalan
90	190	43	353.7	405	3240	4320	6.2	21318 EK Bantalan
90	160	40	297.9	337.5	3420	4770	3.4	22218 E Bantalan
90	160	40	297.9	337.5	3420	4770	3.35	22218 EK Bantalan
90	190	64	573.3	625.5	2340	3240	8.7	22318 E Bantalan
90	190	64	573.3	625.5	2340	3240	9.05	22318 Bantalan EJA/VA405
90	190	64	573.3	625.5	2340	3240	8.5	22318 EK Bantalan
90	190	64	573.3	625.5	2340	3240	8.85	22318 Bantalan EKJA/VA405
90	160	52.4	334.8	396	2520	3420	4.5	Bantalan 23218 CC/W33
90	160	52.4	334.8	396	2520	3420	4.4	Bantalan 23218 CCK/W33
90	160	48	297.9	337.5		1620	3.7	Bantalan BS2-2218-2RS/VT143
90	160	48	297.9	337.5		1620	3.7	Bantalan BS2-2218-2RSK/VT143
90	190	73	573.3	625.5		1530	9.8	Bantalan BS2-2318-2RS5/VT143
90	190	73	573.3	625.5		1530	9.8	Bantalan BS2-2318-2RS5K/VT143
95	200	45	389.7	441	3060	4050	7.2	21319 E Bantalan
95	200	45	389.7	441	3060	4050	7.15	21319 EK Bantalan
95	170	43	353.7	405	3240	4320	4.15	22219 E Bantalan
95	170	43	353.7	405	3240	4320	4.1	22219 EK Bantalan
95	200	67	629.1	688.5	2340	3060	10	22319 E Bantalan
95	200	67	629.1	688.5	2340	3060	10.5	22319 Bantalan EJA/VA405
95	200	67	629.1	688.5	2340	3060	9.9	22319 EK Bantalan

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
95	200	67	629.1	688.5	2340	3060	10.5	22319 Bantalan EKJA/VA405
95	170	51	353.7	405		1530	4.65	Bantalan BS2-2219-2RS/VT143
100	215	47	389.7	441	3060	4050	8.95	Bantalan 21320 E
100	215	47	389.7	441	3060	4050	8.85	21320 EK Bantalan
100	180	46	389.7	441	3060	4050	4.95	Bantalan 22220 E
100	180	46	389.7	441	3060	4050	4.85	22220 EK Bantalan
100	215	73	762.3	855	2160	2700	13	Bantalan 22320 E
100	215	73	762.3	855	2160	2700	13.5	Bantalan 22320 EJA/VA405
100	215	73	762.3	855	2160	2700	13.5	Bantalan 22320 EJA/VA406
100	215	73	762.3	855	2160	2700	12.5	22320 EK Bantalan
100	215	73	762.3	855	2160	2700	13	Bantalan 22320 EKJA/VA405
100	165	52	346.5	441	2700	3600	4.4	Bantalan 23120 CC/W33
100	165	52	346.5	441	2700	3600	4.25	Bantalan 23120 CCK/W33
100	165	52	347.4	441		1530	4.55	Bantalan 23120-2RS5/VT143
100	180	60.3	448.2	540	2160	3060	6.6	Bantalan 23220 CC/W33
100	180	60.3	448.2	540	2160	3060	6.45	Bantalan 23220 CCK/W33
100	180	60.3	449.1	540		1440	6.85	Bantalan 23220-2RS/VT143
100	180	60.3	449.1	540		1440	6.85	Bantalan 23220-2RS5/VT143
100	180	60.3		540		18	6.71	Bantalan 23220/C3W33VA9B1
100	180	60.3		540		18	6.71	Bantalan 23220/C4W33VA9B1
100	150	50	266.4	373.5	2520	3600	2.95	Bantalan 24020 CC/W33
100	150	50	266.4	373.5	2520	3600	2.9	Bantalan CCK30/W33 24020
100	150	50	266.4	373.5		1530	3.15	Bantalan 24020-2RS5/VT143
100	165	65	421.2	576	2160	2880	5.45	Bantalan 24120 CC/W33
100	165	65	421.2	576	2160	2880	5.4	Bantalan 24120 CCK30/W33
100	165	65	423	576		1530	5.65	Bantalan 24120-2RS5/VT143
100	180	55	389.7	441		1440	5.5	Bantalan BS2-2220-2RS5/VT143
100	180	55	389.7	441		1440	5.5	Bantalan BS2-2220-2RS5K/VT143
100	215	82	762.3	855		540	14	Bantalan BS2-2320-2CS5/VT143
100	215	82	762.3	855		540	14	Bantalan BS2-2320-2CS5K/VT143

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
110	200	53	514.8	576	2700	3600	7.05	22222 E Bantalan
110	200	53	514.8	576	2700	3600	6.9	22222 EK Bantalan
110	240	80	890.1	1008	1800	2520	18	22322 Bantalan E
110	240	80	890.1	1008	1800	2520	18.4	22322 Bantalan EJA/VA405
110	240	80	890.1	1008	1800	2520	18.4	22322 Bantalan EJA/VA406
110	240	80	890.1	1008	1800	2520	17.5	22322 EK Bantalan
110	240	80	890.1	1008	1800	2520	17.4	22322 Bantalan EKJA/VA405
110	170	45	293.4	396	3060	3870	3.7	Bantalan 23022 CC/W33
110	170	45	293.4	396	3060	3870	3.8	Bantalan 23022 CCK/W33
110	170	45	293.4	396		1350	3.8	Bantalan 23022-2RS/VT143
110	180	56	405	526.5	2520	3240	5.55	Bantalan 23122 CC/W33
110	180	56	405	526.5	2520	3240	5.4	Bantalan 23122 CCK/W33
110	180	56	405.9	526.5		720	5.75	Bantalan 23122-2CS5/VT143
110	180	56	405.9	526.5		720	5.55	Bantalan 23122-2CS5K/VT143
110	180	56		526.5		18	5.4	Bantalan 23122/C3W33VA9B1
110	180	56		526.5		18	5.4	Bantalan 23122/C4W33VA9B1
110	200	69.8	563.4	688.5	1980	2880	9.35	Bantalan 23222 CC/W33
110	200	69.8	563.4	688.5	1980	2880	9.85	Bantalan 23222 CCK/W33
110	200	69.8	564.3	688.5		576	9.55	Bantalan 23222-2CS5/VT143
110	200	69.8	564.3	688.5		576	9.55	Bantalan 23222-2CS5K/VT143
110	170	60	393.3	558	2160	3240	4.95	Bantalan 24022 CC/W33
110	170	60	393.3	558	2160	3240	4.85	Bantalan 24022 CCK30/W33
110	170	60	394.2	558		1440	5	Bantalan 24022-2RS5/VT143
110	180	69	485.1	675	1800	2700	6.9	Bantalan 24122 CC/W33
110	180	69	485.1	675	1800	2700	6.8	24122 Bantalan CCK30/W33
110	180	69	486	675		567	7.1	Bantalan 24122-2CS5/VT143
110	180	69		675		18	7	Bantalan 24122/C3W33VA9B1
110	180	69		675		18	7	Bantalan 24122/C4W33VA9B1
110	200	63	514.8	576		1350	7.6	Bantalan BS2-2222-2RS5/VT143
110	200	63	514.8	576		1350	7.6	Bantalan BS2-2222-2RS5K/VT143

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
120	215	58	586.8	688.5	2520	3420	8.95	22224 E Bantalan
120	215	58	586.8	688.5	2520	3420	8.75	22224 EK Bantalan
120	260	86	917.1	1008	1800	3510	22.5	Bantalan 22324 CC/C4W33VA991
120	260	86	917.1	1008	1800	2340	22.5	Bantalan 22324 CC/W33
120	260	86	917.1	1008	1800	2340	23	Bantalan 22324 CCJA/W33VA405
120	260	86	917.1	1008	1800	2340	23	Bantalan 22324 CCJA/W33VA406
120	260	86	917.1	1008	1800	2340	22	Bantalan 22324 CCK/W33
120	260	86	917.1	1008	1800	2340	22.5	22324 Bantalan CCKJA/W33VA405
120	260	86	919.8	1008		540	23	Bantalan 22324-2CS5/VT143
120	260	86	919.8	1008		540	22.5	Bantalan 22324-2CS5K/VT143
120	260	86		1008		18	22	Bantalan 22324/C3W33VA9B1
120	260	86		1008		18	22	Bantalan 22324/C4W33VA9B1
120	180	46	329.4	450	2880	3600	4.05	Bantalan 23024 CC/W33
120	180	46	329.4	450	2880	3600	3.9	Bantalan 23024 CCK/W33
120	180	46	330.3	450		1260	4.2	Bantalan 23024-2RS5/VT143
120	200	62	480.6	625.5	2340	3060	7.75	Bantalan 23124 CC/W33
120	200	62	480.6	625.5	2340	3060	7.55	Bantalan 23124 CCK/W33
120	200	62	481.5	625.5		648	7.55	Bantalan 23124-2CS5/VT143
120	200	62	481.5	625.5		648	7.4	Bantalan 23124-2CS5K/VT143
120	215	76	658.8	837	1800	2520	12	Bantalan 23224 CC/W33
120	215	76	658.8	837	1800	2520	11.5	Bantalan 23224 CCK/W33
120	215	76	660.6	837		540	12	Bantalan 23224-2CS5/VT143
120	215	76	660.6	837		540	11.5	Bantalan 23224-2CS5K/VT143
120	180	60	410.4	603	2160	3060	5.3	Bantalan 24024 CC/W33
120	180	60	410.4	603	2160	3060	5.2	Bantalan 24024 CCK30/W33
120	180	60	411.3	603		603	5.45	Bantalan 24024-2CS5/VT143
120	180	60		603		18	5.36	Bantalan 24024/C3W33VA9B1
120	180	60		603		18	5.36	Bantalan 24024/C4W33VA9B1
120	200	80	611.1	855	1710	2340	10	Bantalan 24124 CC/W33
120	200	80	611.1	855	1710	2340	9.9	24124 Bantalan CCK30/W33

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
120	200	80	612	855		504	10.3	Bantalan 24124-2CS5/VT143
120	215	69	586.8	688.5		1260	9.75	Bantalan BS2-2224-2RS5/VT143
120	215	69	586.8	688.5		1260	9.75	Bantalan BS2-2224-2RS5K/VT143
130	230	64	682.2	837	2340	3240	11.5	22226 E Bantalan
130	230	64	682.2	837	2340	3240	11	22226 EK Bantalan
130	280	93	1058.4	1188	1620	3240	28	Bantalan 22326 CC/C4W33VA991
130	280	93	1058.4	1188	1620	2160	28	Bantalan 22326 CC/W33
130	280	93	1058.4	1188	1620	2160	29	22326 Bantalan CCJA/W33VA405
130	280	93	1058.4	1188	1620	2160	29	22326 Bantalan CCJA/W33VA406
130	280	93	1058.4	1188	1620	2160	27.5	Bantalan 22326 CCK/W33
130	280	93	1058.4	1188	1620	2160	28.5	22326 Bantalan CCKJA/W33VA405
130	280	93	1060.2	1188		450	29	Bantalan 22326-2CS5/VT143
130	280	93	1060.2	1188		450	28.5	Bantalan 22326-2CS5K/VT143
130	220	73	507.6	837	1440	2160	11.5	Bantalan 229750 J/C3R505
130	200	52	406.8	549	2520	3240	5.8	Bantalan 23026 CC/W33
130	200	52	406.8	549	2520	3240	5.65	Bantalan 23026 CCK/W33
130	200	52	406.8	549		720	6	Bantalan 23026-2CS5/VT143
130	200	52	406.8	549		720	5.8	Bantalan 23026-2CS5K/VT143
130	210	64	527.4	702	2160	2880	8.5	Bantalan 23126 CC/W33
130	210	64	527.4	702	2160	2880	8.25	Bantalan 23126 CCK/W33
130	210	64	528.3	702		603	8.1	Bantalan 23126-2CS5K/VT143
130	230	80	743.4	954	1710	2340	14	Bantalan 23226 CC/W33
130	230	80	743.4	954	1710	2340	14	23226 CCK/W33 Bantalan
130	230	80	745.2	954		477	14.5	Bantalan 23226-2CS5/VT143
130	230	80	745.2	954		477	14	Bantalan 23226-2CS5K/VT143
130	200	69	512.1	733.5	1800	2700	7.75	Bantalan 24026 CC/W33
130	200	69	512.1	733.5	1800	2700	7.65	Bantalan 24026 CCK30/W33
130	200	69	513	747		540	8.05	Bantalan 24026-2CS5/VT143
130	200	69		733.5		18	7.93	Bantalan 24026/C3W33VA9B1
130	200	69		733.5		18	7.93	Bantalan 24026/C4W33VA9B1

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
130	210	80	629.1	900	1530	2160	10.5	Bantalan 24126 CC/W33
130	210	80	629.1	900	1530	2160	10.5	24126 Bantalan CCK30/W33
130	210	80	630.9	900		477	11	Bantalan 24126-2CS5/VT143
130	210	80		900		18	10.5	Bantalan 24126/C3W33VA9B1
130	210	80		900		18	10.5	Bantalan 24126/C4W33VA9B1
130	230	75	682.2	837		630	11	Bantalan BS2-2226-2CS5/VT143
130	230	75	682.2	837		630	10.5	Bantalan BS2-2226-2CS5K/VT143
140	250	68	668.7	810	2160	2880	14	Bantalan 22228 CC/W33
140	250	68	668.7	810	2160	2880	14	Bantalan 22228 CCK/W33
140	250	68	669.6	810		603	14	Bantalan 22228-2CS5/VT143
140	250	68	669.6	810		603	13.5	Bantalan 22228-2CS5K/VT143
140	300	102	1221.3	1404	1530	3060	35	Bantalan 22328 CC/C4W33VA991
140	300	102	1221.3	1404	1530	1980	35	Bantalan 22328 CC/W33
140	300	102	1221.3	1404	1530	1980	36.5	22328 Bantalan CCJA/W33VA405
140	300	102	1221.3	1404	1530	1980	36.5	22328 Bantalan CCJA/W33VA406
140	300	102	1221.3	1404	1530	1980	34.5	Bantalan 22328 CCK/W33
140	300	102	1221.3	1404	1530	1980	35.5	22328 Bantalan CCKJA/W33VA405
140	300	102	1223.1	1404		387	36.5	Bantalan 22328-2CS5/VT143
140	300	102	1223.1	1404		387	35.5	Bantalan 22328-2CS5K/VT143
140	210	53	436.5	612	2340	3060	6.3	Bantalan 23028 CC/W33
140	210	53	436.5	612	2340	3060	6.1	Bantalan 23028 CCK/W33
140	210	53	436.5	612		630	6.55	Bantalan 23028-2CS5/VT143
140	210	53	436.5	612		630	6.35	Bantalan 23028-2CS5K/VT143
140	225	68	593.1	810	1980	2520	10.5	Bantalan 23128 CC/W33
140	225	68	593.1	810	1980	2520	10	Bantalan 23128 CCK/W33
140	225	68	594	810		567	9.9	Bantalan 23128-2CS5K/VT143
140	250	88	865.8	1125	1530	2160	18.5	Bantalan 23228 CC/W33
140	250	88	865.8	1125	1530	2160	18	Bantalan 23228 CCK/W33
140	250	88	866.7	1125		432	19	Bantalan 23228-2CS5/VT143
140	250	88	866.7	1125		432	18.5	Bantalan 23228-2CS5K/VT143

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
140	210	69	540	810	1800	2520	8.25	Bantalan 24028 CC/W33
140	210	69	540	810	1800	2520	8.15	Bantalan 24028 CCK30/W33
140	210	69	540.9	810		504	8.55	Bantalan 24028-2CS5/VT143
140	210	69		810		18	8.43	Bantalan 24028/C3W33VA9B1
140	210	69		810		18	8.43	Bantalan 24028/C4W33VA9B1
140	225	85	716.4	1044	1440	1980	13	Bantalan 24128 CC/W33
140	225	85	716.4	1044	1440	1980	12.5	24128 Bantalan CCK30/W33
140	225	85	717.3	1044		405	13.5	Bantalan 24128-2CS5/VT143
140	225	85	717.3	1044		405	13.5	Bantalan 24128-2CS5K30/VT143
140	225	85		1044		18	12.5	Bantalan 24128/C3W33VA9B1
140	225	85		1044		18	12.5	Bantalan 24128/C4W33VA9B1
150	270	73	808.2	972	1980	2700	18	Bantalan 22230 CC/W33
150	270	73	808.2	972	1980	2700	17.5	Bantalan 22230 CCK/W33
150	270	73	809.1	972		567	18	Bantalan 22230-2CS5/VT143
150	270	73	809.1	972		567	17.5	Bantalan 22230-2CS5K/VT143
150	320	108	1385.1	1584	1440	2790	42	Bantalan 22330 CC/C4W33VA991
150	320	108	1385.1	1584	1440	1800	42	Bantalan 22330 CC/W33
150	320	108	1385.1	1584	1440	1800	43.5	Bantalan 22330 CCJA/W33VA405
150	320	108	1385.1	1584	1440	1800	43.5	Bantalan 22330 CCJA/W33VA406
150	320	108	1385.1	1584	1440	1800	41	Bantalan 22330 CCK/W33
150	320	108	1385.1	1584	1440	1800	42.5	22330 CCKJA/W33VA405 Bantalan
150	320	108	1386.9	1584		360	43.5	Bantalan 22330-2CS5/VT143
150	320	108	1386.9	1584		360	42.5	Bantalan 22330-2CS5K/VT143
150	225	56	477.9	675	2160	2880	7.65	Bantalan 23030 CC/W33
150	225	56	477.9	675	2160	2880	7.4	Bantalan 23030 CCK/W33
150	225	56	478.8	675		603	7.95	Bantalan 23030-2CS5/VT143
150	225	56	478.8	675		603	7.7	Bantalan 23030-2CS5K/VT143
150	225	56		675		18	7.45	Bantalan 23030/C3W33VA9B1
150	225	56		675		18	7.45	Bantalan 23030/C4W33VA9B1
150	250	80	794.7	1080	1800	2340	16	Bantalan 23130 CC/W33

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
150	250	80	794.7	1080	1800	2340	15.5	Bantalan 23130 CCK/W33
150	250	80	795.6	1080		504	16	Bantalan 23130-2CS5/VT143
150	250	80	795.6	1080		504	15.5	Bantalan 23130-2CS5K/VT143
150	270	96	1016.1	1314	1440	1980	23.5	Bantalan 23230 CC/W33
150	270	96	1016.1	1314	1440	1980	23	Bantalan 23230 CCK/W33
150	270	96	1018.8	1314		387	24.5	Bantalan 23230-2CS5/VT143
150	270	96	1018.8	1314		387	24	Bantalan 23230-2CS5K/VT143
150	225	75	612	936	1620	2340	10.5	Bantalan 24030 CC/W33
150	225	75	612	936	1620	2340	10	Bantalan 24030 CCK30/W33
150	225	75	612.9	936		477	10.5	Bantalan 24030-2CS5/VT143
150	225	75		936		18	10.3	Bantalan 24030/C3W33VA9B1
150	225	75		936		18	10.3	Bantalan 24030/C4W33VA9B1
150	250	100	948.6	1377	1260	1800	19.5	Bantalan 24130 CC/W33
150	250	100	948.6	1377	1260	1800	19.5	Bantalan 24130 CCK30/W33
150	250	100	950.4	1377		360	19.8	Bantalan 24130-2CS5/VT143
150	250	100	950.4	1377		360	19.5	Bantalan 24130-2CS5K30/VT143
150	250	100		1377		18	19.8	Bantalan 24130/C3W33VA9B1
150	250	100		1377		18	19.8	Bantalan 24130/C4W33VA9B1
160	290	80	938.7	1161	1800	2520	23	Bantalan 22232 CC/W33
160	290	80	938.7	1161	1800	2520	22.5	Bantalan 22232 CCK/W33
160	290	80	939.6	1161		540	22.5	Bantalan 22232-2CS5/VT143
160	290	80	939.6	1161		540	22	Bantalan 22232-2CS5K/VT143
160	340	114	1512	1764	1350	2610	50	Bantalan 22332 CC/C4W33VA991
160	340	114	1512	1764	1350	1710	50	Bantalan 22332 CC/W33
160	340	114	1512	1764	1350	1710	52	22332 Bantalan CCJA/W33VA405
160	340	114	1512	1764	1350	1710	52	22332 Bantalan CCJA/W33VA406
160	340	114	1512	1764	1350	1710	49	Bantalan 22332 CCK/W33
160	340	114	1512	1764	1350	1710	51	22332 Bantalan CCKJA/W33VA405
160	340	114	1514.7	1764		342	52	Bantalan 22332-2CS5/VT143
160	340	114	1514.7	1764		342	51	Bantalan 22332-2CS5K/VT143

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
160	340	114		1764		18	49	Bantalan 22332/C3W33VA9B1
160	340	114		1764		18	49	Bantalan 22332/C4W33VA9B1
160	240	60	552.6	792	2160	2700	9.25	Bantalan 23032 CC/W33
160	240	60	552.6	792	2160	2700	9	Bantalan 23032 CCK/W33
160	240	60	553.5	792		603	9.7	Bantalan 23032-2CS5/VT143
160	240	60	553.5	792		603	9.4	Bantalan 23032-2CS5K/VT143
160	270	86	926.1	1233	1710	2160	20	Bantalan 23132 CC/W33
160	270	86	926.1	1233	1710	2160	19.5	Bantalan 23132 CCK/W33
160	270	86	927	1260		477	20.5	Bantalan 23132-2CS5/VT143
160	270	86	927	1260		477	19.9	Bantalan 23132-2CS5K/VT143
160	290	104	1152.9	1494	1350	1980	29.5	Bantalan 23232 CC/W33
160	290	104	1152.9	1494	1350	1980	29	Bantalan 23232 CCK/W33
160	240	80	704.7	1080	1530	2160	12.5	Bantalan 24032 CC/W33
160	240	80	704.7	1080	1530	2160	12.5	Bantalan 24032 CCK30/W33
160	240	80	705.6	1080		405	13	Bantalan 24032-2CS5/VT143
160	240	80		1080		18	12.8	Bantalan 24032/C3W33VA9B1
160	240	80		1080		18	12.8	Bantalan 24032/C4W33VA9B1
160	270	109	1104.3	1584	1170	1710	25	Bantalan 24132 CC/W33
160	270	109	1104.3	1584	1170	1710	24.5	24132 Bantalan CCK30/W33
160	270	109	1106.1	1584		342	25	Bantalan 24132-2CS5/VT143
170	310	86	1064.7	1314	1710	2340	28	Bantalan 22234 CC/W33
170	310	86	1064.7	1314	1710	2340	27.5	Bantalan 22234 CCK/W33
170	310	86	1066.5	1314		450	28.5	Bantalan 22234-2CS5/VT143
170	310	86	1066.5	1314		450	28	Bantalan 22234-2CS5K/VT143
170	360	120	1676.7	1944	1260	2430	59	Bantalan 22334 CC/C4W33VA991
170	360	120	1676.7	1944	1260	1620	59	Bantalan 22334 CC/W33
170	360	120	1676.7	1944	1260	1620	61	Bantalan 22334 CCJA/W33VA405
170	360	120	1676.7	1944	1260	1620	61	Bantalan 22334 CCJA/W33VA406
170	360	120	1676.7	1944	1260	1620	58	Bantalan 22334 CCK/W33
170	360	120	1676.7	1944	1260	1620	59.5	22334 Bantalan CCKJA/W33VA405

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
170	260	67	670.5	954	1980	2520	12.5	Bantalan 23034 CC/W33
170	260	67	670.5	954	1980	2520	13	Bantalan 23034 CCK/W33
170	260	67	671.4	972		567	13	Bantalan 23034-2CS5/VT143
170	260	67	671.4	972		567	12.6	Bantalan 23034-2CS5K/VT143
170	280	88	977.4	1350	1620	2160	21.5	Bantalan 23134 CC/W33
170	280	88	977.4	1350	1620	2160	21	Bantalan 23134 CCK/W33
170	280	88	979.2	1350		432	22	Bantalan 23134-2CS5/VT143
170	280	88	979.2	1350		432	21.3	Bantalan 23134-2CS5K/VT143
170	310	110	1324.8	1737	1260	1800	36	Bantalan 23234 CC/W33
170	310	110	1324.8	1737	1260	1800	35	Bantalan 23234 CCK/W33
170	310	110	1328.4	1764		342	35	Bantalan 23234-2CS5K/VT143
170	260	90	866.7	1314	1440	2160	17	Bantalan 24034 CC/W33
170	260	90	866.7	1314	1440	2160	17	Bantalan 24034 CCK30/W33
170	260	90	869.4	1350		360	17.5	Bantalan 24034-2CS5/VT143
170	260	90		1314		18	17.3	Bantalan 24034/C3W33VA9B1
170	260	90		1314		18	17.3	Bantalan 24034/C4W33VA9B1
170	280	109	1143	1674	1080	1620	26.5	Bantalan 24134 CC/W33
170	280	109	1143	1674	1080	1620	26	24134 Bantalan CCK30/W33
170	280	109	1145.7	1674		324	27.5	Bantalan 24134-2CS5/VT143
180	320	86	1113.3	1404	1620	2340	29.5	Bantalan 22236 CC/W33
180	320	86	1113.3	1404	1620	2340	29	Bantalan 22236 CCK/W33
180	320	86	1115.1	1404		477	28.9	Bantalan 22236-2CS5/VT143
180	320	86	1115.1	1404		477	28.4	Bantalan 22236-2CS5K/VT143
180	380	126	1869.3	2205	1170	2430	68.5	Bantalan 22336 CC/C4W33VA991
180	380	126	1869.3	2205	1170	1530	68.5	Bantalan 22336 CC/W33
180	380	126	1869.3	2205	1170	1530	71.5	Bantalan 22336 CCJA/W33VA405
180	380	126	1869.3	2205	1170	1530	71.5	22336 Bantalan CCJA/W33VA406
180	380	126	1869.3	2205	1170	1530	67	Bantalan 22336 CCK/W33
180	380	126	1869.3	2205	1170	1530	70	22336 CCKJA/W33VA405 Bantalan
180	280	74	794.7	1125	1800	2340	16.5	Bantalan 23036 CC/W33

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
180	280	74	794.7	1125	1800	2340	16	Bantalan 23036 CCK/W33
180	280	74	795.6	1143		504	17	Bantalan 23036-2CS5/VT143
180	280	74	795.6	1143		504	16.5	Bantalan 23036-2CS5K/VT143
180	300	96	1136.7	1584	1530	1980	27.5	Bantalan 23136 CC/W33
180	300	96	1136.7	1584	1530	1980	26.5	23136 CCK/W33 Bantalan
180	300	96	1137.6	1620		387	28	Bantalan 23136-2CS5/VT143
180	300	96	1137.6	1620		387	27	Bantalan 23136-2CS5K/VT143
180	320	112	1401.3	1908	1170	1710	38.5	Bantalan 23236 CC/W33
180	320	112	1401.3	1908	1170	1710	37.5	Bantalan 23236 CCK/W33
180	320	112	1404	1908		324	38	Bantalan 23236-2CS5/VT143
180	320	112	1404	1908		324	37	Bantalan 23236-2CS5K/VT143
180	250	52	467.1	747	2340	2520	7.8	Bantalan 23936 CC/W33
180	250	52	467.1	747	2340	2520	7.6	23936 CCK/W33 Bantalan
180	280	100	1020.6	1557	1350	1980	22.5	Bantalan 24036 CC/W33
180	280	100	1020.6	1557	1350	1980	22	Bantalan 24036 CCK30/W33
180	280	100	1022.4	1557		342	23	Bantalan 24036-2CS5/VT143
180	300	118	1304.1	1944	990	2160	33	Bantalan 24136 CC/C4W33VA991
180	300	118	1304.1	1944	990	1440	33.5	Bantalan 24136 CC/W33
180	300	118	1304.1	1944	990	1440	33	24136 Bantalan CCK30/W33
180	300	118	1306.8	1944		324	34.5	Bantalan 24136-2CS5/VT143
190	340	92	1207.8	1530	1530	2160	35.5	Bantalan 22238 CC/W33
190	340	92	1207.8	1530	1530	2160	35	Bantalan 22238 CCK/W33
190	340	92	1210.5	1530		432	34.9	Bantalan 22238-2CS5/VT143
190	340	92	1210.5	1530		432	33.9	Bantalan 22238-2CS5K/VT143
190	400	132	2008.8	2385	1080	2250	79.5	Bantalan 22338 CC/C4W33VA991
190	400	132	2008.8	2385	1080	1440	79.5	Bantalan 22338 CC/W33
190	400	132	2008.8	2385	1080	1440	82.5	22338 Bantalan CCJA/W33VA405
190	400	132	2008.8	2385	1080	1440	82.5	22338 Bantalan CCJA/W33VA406
190	400	132	2008.8	2385	1080	1440	78	Bantalan 22338 CCK/W33
190	400	132	2008.8	2385	1080	1440	81	22338 CCKJA/W33VA405 Bantalan

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
190	400	132	2012.4	2385		306	77.7	Bantalan 22338-2CS5/VT143
190	290	75	824.4	1206	1710	2160	17.5	Bantalan 23038 CC/W33
190	290	75	824.4	1206	1710	2160	17	Bantalan 23038 CCK/W33
190	290	75	825.3	1206		468	17	Bantalan 23038-2CS5K/VT143
190	320	104	1310.4	1872	1350	1800	34.5	Bantalan 23138 CC/W33
190	320	104	1310.4	1872	1350	1800	33.5	Bantalan 23138 CCK/W33
190	320	104	1312.2	1872		360	35	Bantalan 23138-2CS5/VT143
190	320	104	1312.2	1872		360	34	Bantalan 23138-2CS5K/VT143
190	340	120	1583.1	2160	1170	1620	47	Bantalan 23238 CC/W33
190	340	120	1583.1	2160	1170	1620	45.5	Bantalan 23238 CCK/W33
190	340	120	1585.8	2160		306	46.5	Bantalan 23238-2CS5/VT143
190	340	120	1585.8	2160		306	45.5	Bantalan 23238-2CS5K/VT143
190	260	52	449.1	720	2160	2340	8.05	Bantalan 23938 CC/W33
190	260	52	449.1	720	2160	2340	7.8	Bantalan 23938 CCK/W33
190	290	100	1047.6	1620	1260	1800	23.5	Bantalan 24038 CC/W33
190	290	100	1047.6	1620	1260	1800	23	Bantalan 24038 CCK30/W33
190	290	100	1048.5	1620		342	23	Bantalan 24038-2CS5K30/VT143
190	320	128	1486.8	2250	990	2070	41.5	Bantalan 24138 CC/C4W33VA991
190	320	128	1486.8	2250	990	1350	41.5	Bantalan 24138 CC/W33
190	320	128	1486.8	2250	990	1350	41	24138 Bantalan CCK30/W33
190	320	128	1489.5	2250		306	43	Bantalan 24138-2CS5/VT143
200	360	98	1373.4	1737	1440	1980	43	Bantalan 22240 CC/W33
200	360	98	1373.4	1737	1440	1980	42	Bantalan 22240 CCK/W33
200	360	98	1376.1	1737		387	42.1	Bantalan 22240-2CS5/VT143
200	360	98	1376.1	1737		387	41.1	Bantalan 22240-2CS5K/VT143
200	420	138	2195.1	2610	1080	2160	91	Bantalan 22340 CC/C4W33VA991
200	420	138	2195.1	2610	1080	1350	91	Bantalan 22340 CC/W33
200	420	138	2195.1	2610	1080	1350	95	Bantalan 22340 CCJA/W33VA405
200	420	138	2195.1	2610	1080	1350	95	Bantalan 22340 CCJA/W33VA406
200	420	138	2195.1	2610	1080	1350	89.5	Bantalan 22340 CCK/W33

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
200	420	138	2195.1	2610	1080	1350	93	Bantalan 22340 CCKJA/W33VA405
200	420	138	2198.7	2610		306	89.5	Bantalan 22340-2CS5K/VT143
200	310	82	952.2	1377	1620	1980	22.5	Bantalan 23040 CC/W33
200	310	82	952.2	1377	1620	1980	22	Bantalan 23040 CCK/W33
200	310	82	953.1	1377		432	22	Bantalan 23040-2CS5/VT143
200	310	82	953.1	1377		432	21.3	Bantalan 23040-2CS5K/VT143
200	340	112	1498.5	2124	1350	1710	42	Bantalan 23140 CC/W33
200	340	112	1498.5	2124	1350	1710	40.5	Bantalan 23140 CCK/W33
200	340	112	1501.2	2124		342	43	Bantalan 23140-2CS5/VT143
200	340	112	1501.2	2124		342	41.5	Bantalan 23140-2CS5K/VT143
200	360	128	1752.3	2430	1080	2250	56.5	Bantalan 23240 CC/C4W33VA991
200	360	128	1752.3	2430	1080	1530	56.5	Bantalan 23240 CC/W33
200	360	128	1752.3	2430	1080	1530	55	Bantalan 23240 CCK/W33
200	360	128	1755	2430		306	58	Bantalan 23240-2CS5/VT143
200	360	128	1755	2430		306	56.5	Bantalan 23240-2CS5K/VT143
200	280	60	585.9	936	1980	2160	11.5	Bantalan 23940 CC/W33
200	280	60	585.9	936	1980	2160	11	Bantalan 23940 CCK/W33
200	310	109	1217.7	1908	1170	1710	30	Bantalan 24040 CC/W33
200	310	109	1217.7	1908	1170	1710	29.5	Bantalan 24040 CCK30/W33
200	310	109	1218.6	1908		324	29.5	Bantalan 24040-2CS5K30/VT143
200	340	140	1678.5	2520	900	1890	51.5	Bantalan 24140 CC/C4W33VA991
200	340	140	1678.5	2520	900	1260	51.5	Bantalan 24140 CC/W33
200	340	140	1678.5	2520	900	1260	51	Bantalan 24140 CCK30/W33
200	340	140	1683.9	2520		288	53.5	Bantalan 24140-2CS5/VT143
200	340	140	1683.9	2520		99	51	Bantalan 24140-2CS5K30/C3HGEA8
220	400	108	1651.5	2124	1350	1800	59	Bantalan 22244 CC/W33
220	400	108	1651.5	2124	1350	1800	58	Bantalan 22244 CCK/W33
220	400	108	1655.1	2124		342	58.2	Bantalan 22244-2CS5/VT143
220	400	108	1655.1	2124		342	56.7	Bantalan 22244-2CS5K/VT143
220	460	145	2555.1	3105	900	1890	115	Bantalan 22344 CC/C4W33VA991

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
220	460	145	2555.1	3105	900	1260	115	Bantalan 22344 CC/W33
220	460	145	2555.1	3105	900	1260	120	22344 Bantalan CCJA/W33VA405
220	460	145	2555.1	3105	900	1260	115	Bantalan 22344 CCK/W33
220	460	145	2555.1	3105	900	1260	118	22344 Bantalan CCKJA/W33VA405
220	460	145	2559.6	3105		270	114	Bantalan 22344-2CS5/VT143
220	460	145	2559.6	3105		270	114	Bantalan 22344-2CS5K/VT143
220	340	90	1134.9	1674	1440	1800	29.5	Bantalan 23044 CC/W33
220	340	90	1134.9	1674	1440	1800	28.5	Bantalan 23044 CCK/W33
220	340	90	1135.8	1674		387	28.9	Bantalan 23044-2CS5/VT143
220	340	90	1135.8	1674		387	28	Bantalan 23044-2CS5K/VT143
220	370	120	1699.2	2475	1170	1530	53	Bantalan 23144 CC/W33
220	370	120	1699.2	2475	1170	1530	51	Bantalan 23144 CCK/W33
220	370	120	1701.9	2475		324	53.5	Bantalan 23144-2CS5/VT143
220	370	120	1701.9	2475		324	52	Bantalan 23144-2CS5K/VT143
220	400	144	2236.5	3105	990	1980	81.5	Bantalan 23244 CC/C4W33VA991
220	400	144	2236.5	3105	990	1350	79.5	Bantalan 23244 CC/W33
220	400	144	2236.5	3105	990	1350	77	Bantalan 23244 CCK/W33
220	400	144	2240.1	3105		270	77	Bantalan 23244-2CS5K/VT143
220	300	60	594.9	972	1800	1980	12	Bantalan 23944 CC/W33
220	300	60	594.9	972	1800	1980	12	Bantalan 23944 CCK/W33
220	300	60	595.8	972		540	2.5	Bantalan 23944-2CS/VT143
220	340	118	1465.2	2340	1080	2340	39	Bantalan 24044 CC/C4W33VA991
220	340	118	1465.2	2340	1080	1530	39	Bantalan 24044 CC/W33
220	340	118	1465.2	2340	1080	1530	38.5	Bantalan 24044 CCK30/W33
220	340	118	1466.1	2340		306	38.5	Bantalan 24044-2CS5K30/VT143
220	370	150	1977.3	3015	765	1710	65	Bantalan 24144 CC/C4W33VA991
220	370	150	1977.3	3015	765	1080	65	Bantalan 24144 CC/W33
220	370	150	1977.3	3015	765	1080	64.5	24144 Bantalan CCK30/W33
220	370	150	1979.1	3015		270	64.5	Bantalan 24144-2CS5K30/VT143
240	440	120	2032.2	2700	1170	1620	80	Bantalan 22248 CC/W33

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
240	440	120	2032.2	2700	1170	1620	78	Bantalan 22248 CCK/W33
240	500	155	2906.1	3600	855	1710	145	Bantalan 22348 CC/C4W33VA991
240	500	155	2906.1	3600	855	1170	145	Bantalan 22348 CC/W33
240	500	155	2906.1	3600	855	1170	155	Bantalan 22348 CCJA/W33VA405
240	500	155	2906.1	3600	855	1170	140	Bantalan 22348 CCK/W33
240	500	155	2906.1	3600	855	1170	152	22348 Bantalan CCKJA/W33VA405
240	360	92	1206	1872	1350	1710	32.5	Bantalan 23048 CC/W33
240	360	92	1206	1872	1350	1710	31.5	Bantalan 23048 CCK/W33
240	360	92	1206.9	1872		360	31.8	Bantalan 23048-2CS5/VT143
240	360	92	1206.9	1872		360	30.8	Bantalan 23048-2CS5K/VT143
240	400	128	1968.3	2880	1080	1440	65	Bantalan 23148 CC/W33
240	400	128	1968.3	2880	1080	1440	63	Bantalan 23148 CCK/W33
240	400	128	1971.9	2880		306	66.5	Bantalan 23148-2CS5/VT143
240	400	128	1971.9	2880		306	64.5	Bantalan 23148-2CS5K/VT143
240	440	160	2519.1	3420	855	1170	105	Bantalan 23248 CAC/W33
240	440	160	2737.8	3870	855	1800	105	Bantalan 23248 CC/C4W33VA991
240	440	160	2737.8	3870	855	1170	105	Bantalan 23248 CC/W33
240	440	160	2737.8	3870	855	1170	105	Bantalan 23248 CCK/W33
240	320	60	616.5	1044	1710	1800	13	Bantalan 23948 CC/W33
240	320	60	616.5	1044	1710	1800	12.5	Bantalan 23948 CCK/W33
240	360	118	1496.7	2430	990	2250	41.5	Bantalan 24048 CC/C4W33VA991
240	360	118	1496.7	2430	990	1440	42	Bantalan 24048 CC/W33
240	360	118	1496.7	2430	990	1440	41.5	Bantalan 24048 CCK30/W33
240	360	118	1499.4	2430		288	41	Bantalan 24048-2CS5K30/VT143
240	400	160	2240.1	3510	675	1530	80.5	Bantalan 24148 CC/C4W33VA991
240	400	160	2240.1	3510	675	990	81	Bantalan 24148 CC/W33
240	400	160	2240.1	3510	675	990	79.5	24148 Bantalan CCK30/W33
240	400	160	2241.9	3510		234	81	Bantalan 24148-2CS5/VT143
240	400	160	2241.9	3510		234	80	Bantalan 24148-2CS5K30/VT143
260	480	130	2449.8	3195	1080	1440	110	Bantalan 22252 CAC/W33

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
260	480	130	2449.8	3195	1080	1440	108	22252 CACK/W33 Bantalan
260	480	130	2449.8	3195	1080	1440	105	Bantalan 22252 CC/W33
260	480	130	2449.8	3195	1080	1440	100	Bantalan 22252 CCK/W33
260	540	165	3312	4095	765	1620	180	Bantalan 22352 CC/C4W33VA991
260	540	165	3312	4095	765	990	180	Bantalan 22352 CC/W33
260	540	165	3312	4095	765	990	175	Bantalan 22352 CCK/W33
260	400	104	1507.5	2295	1170	1530	46.5	Bantalan 23052 CC/W33
260	400	104	1507.5	2295	1170	1530	45	Bantalan 23052 CCK/W33
260	400	104	1509.3	2295		324	45.9	Bantalan 23052-2CS5/VT143
260	400	104	1509.3	2295		324	44.5	Bantalan 23052-2CS5K/VT143
260	440	144	2311.2	3375	990	1260	91	Bantalan 23152 CAC/W33
260	440	144	2311.2	3375	990	1260	88	23152 CACK/W33 Bantalan
260	440	144	2397.6	3510	990	1260	89.5	Bantalan 23152 CC/W33
260	440	144	2397.6	3510	990	1260	87	Bantalan 23152 CCK/W33
260	440	144	2401.2	3510		288	90.5	Bantalan 23152-2CS5/VT143
260	440	144	2401.2	3510		288	87.5	Bantalan 23152-2CS5K/VT143
260	480	174	3055.5	4275	765	1080	140	Bantalan 23252 CAC/W33
260	480	174	3055.5	4275	765	1080	135	23252 CACK/W33 Bantalan
260	480	174	3055.5	4275	765	1620	140	Bantalan 23252 CC/C4W33VA991
260	480	174	3055.5	4275	765	1080	140	Bantalan 23252 CC/W33
260	480	174	3055.5	4275	765	1080	135	Bantalan 23252 CCK/W33
260	360	75	949.5	1620	1530	1710	23.5	Bantalan 23952 CC/W33
260	360	75	949.5	1620	1530	1710	22.5	Bantalan 23952 CCK/W33
260	400	140	1921.5	3105	900	1980	63.5	Bantalan 24052 CC/C4W33VA991
260	400	140	1921.5	3105	900	1260	63.5	Bantalan 24052 CC/W33
260	400	140	1921.5	3105	900	1260	62.5	24052 Bantalan CCK30/W33
260	400	140	1924.2	3105		252	62.5	Bantalan 24052-2CS5K30/VT143
260	440	180	2777.4	4320	603	1350	110	Bantalan 24152 CC/C4W33VA991
260	440	180	2777.4	4320	603	855	110	Bantalan 24152 CC/W33
260	440	180	2777.4	4320	603	855	110	24152 Bantalan CCK30/W33

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
260	440	180	2782.8	4410		216	109	Bantalan 24152-2CS5/VT143
280	500	130	2515.5	3375	990	1350	109	Bantalan 22256 CC/W33
280	500	130	2515.5	3375	990	1350	110	Bantalan 22256 CCK/W33
280	580	175	3742.2	4680	720	1440	220	Bantalan 22356 CC/C4W33VA991
280	580	175	3742.2	4680	720	990	230	Bantalan 22356 CC/W33
280	580	175	3742.2	4680	720	990	225	Bantalan 22356 CCK/W33
280	420	106	1572.3	2475	1170	1440	52.5	Bantalan 23056 CAC/W33
280	420	106	1572.3	2475	1170	1440	52.5	23056 CACK/W33 Bantalan
280	420	106	1617.3	2565	1170	1440	50.5	Bantalan 23056 CC/W33
280	420	106	1617.3	2565	1170	1440	49	Bantalan 23056 CCK/W33
280	460	146	2419.2	3600	900	1170	97	Bantalan 23156 CAC/W33
280	460	146	2419.2	3600	900	1170	94	23156 CACK/W33 Bantalan
280	460	146	2505.6	3825	900	1170	96	Bantalan 23156 CC/W33
280	460	146	2505.6	3825	900	1170	93	23156 CCK/W33 Bantalan
280	460	146	2509.2	3825		270	97	Bantalan 23156-2CS5/VT143
280	460	146	2509.2	3825		270	94.8	Bantalan 23156-2CS5K/VT143
280	500	176	3082.5	4410	720	990	150	Bantalan 23256 CAC/W33
280	500	176	3082.5	4410	720	990	145	23256 CACK/W33 Bantalan
280	500	176	3082.5	4410	720	1530	145	Bantalan 23256 CC/C4W33VA991
280	500	176	3082.5	4410	720	990	145	Bantalan 23256 CC/W33
280	500	176	3082.5	4410	720	990	140	23256 CCK/W33 Bantalan
280	380	75	914.4	1584	1440	1530	24	Bantalan 23956 CC/W33
280	380	75	914.4	1584	1440	1530	23.5	Bantalan 23956 CCK/W33
280	420	140	2023.2	3420	855	1890	68	Bantalan 24056 CC/C4W33VA991
280	420	140	2023.2	3420	855	1260	68	Bantalan 24056 CC/W33
280	420	140	2023.2	3420	855	1260	67	Bantalan 24056 CCK30/W33
280	420	140	2025	3420		241.2	66.5	Bantalan 24056-2CS5K30/VT143
280	460	180	2864.7	4590	567	1170	115	Bantalan 24156 CC/C4W33VA991
280	460	180	2864.7	4590	567	810	120	Bantalan 24156 CC/W33
280	460	180	2864.7	4590	567	810	115	24156 Bantalan CCK30/W33

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
280	460	180	2871	4590		198	115	Bantalan 24156-2CS5/VT143
280	460	180	2871	4590		198	115	Bantalan 24156-2CS5K30/VT143
300	540	140	2915.1	3825	900	1260	145	Bantalan 22260 CC/W33
300	540	140	2915.1	3825	900	1260	140	Bantalan 22260 CCK/W33
300	460	118	1938.6	3015	1080	1350	71.5	Bantalan 23060 CAC/W33
300	460	118	1938.6	3015	1080	1350	71.5	Bantalan 23060 CACK/W33
300	460	118	1997.1	3105	1080	1350	70	Bantalan 23060 CC/W33
300	460	118	1997.1	3105	1080	1350	68.5	Bantalan 23060 CCK/W33
300	460	118	1999.8	3105		288	71.5	Bantalan 23060-2CS5/VT143
300	460	118	1999.8	3105		288	69.5	Bantalan 23060-2CS5K/VT143
300	500	160	2821.5	4185	855	1080	125	Bantalan 23160 CAC/W33
300	500	160	2821.5	4185	855	1080	125	23160 CACK/W33 Bantalan
300	500	160	3031.2	4590	855	1080	130	Bantalan 23160 CC/W33
300	500	160	3031.2	4590	855	1080	125	Bantalan 23160 CCK/W33
300	500	160	3035.7	4590		234	125	Bantalan 23160-2CS5/VT143
300	500	160	3035.7	4590		234	121	Bantalan 23160-2CS5K/VT143
300	540	192	3646.8	5265	675	900	190	Bantalan 23260 CAC/W33
300	540	192	3646.8	5265	675	900	185	23260 CACK/W33 Bantalan
300	540	192	3646.8	5265	675	1440	185	Bantalan 23260 CC/C4W33VA991
300	540	192	3646.8	5265	675	900	195	Bantalan 23260 CC/W33
300	540	192	3646.8	5265	675	900	190	Bantalan 23260 CCK/W33
300	420	90	1271.7	2250	1260	1440	39	Bantalan 23960 CC/W33
300	420	90	1271.7	2250	1260	1440	37.5	Bantalan 23960 CCK/W33
300	460	160	2461.5	4050	765	1080	97	Bantalan 24060 CAC/W33
300	460	160	2461.5	4050	765	1080	95.5	Bantalan 24060 CACK30/W33
300	460	160	2538.9	4275	765	1710	96	Bantalan 24060 CC/C4W33VA991
300	460	160	2538.9	4275	765	1080	96	Bantalan 24060 CC/W33
300	460	160	2538.9	4275	765	1080	94.5	Bantalan 24060 CCK30/W33
300	460	160	2544.3	4275		216	95	Bantalan 24060-2CS5/VT143
300	500	200	3488.4	5670	504	1080	160	Bantalan 24160 CC/C4W33VA991

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
300	500	200	3488.4	5670	504	720	160	Bantalan 24160 CC/W33
300	500	200	3488.4	5670	504	720	155	Bantalan 24160 CCK30/W33
300	500	200	3492.9	5670		190.8	156	Bantalan 24160-2CS5/VT143
300	500	200	3492.9	5670		190.8	153	Bantalan 24160-2CS5K30/VT143
320	580	150	3337.2	4410	855	1170	165	Bantalan 22264 CC/W33
320	580	150	3337.2	4410	855	1170	165	Bantalan 22264 CCK/W33
320	480	121	2113.2	3420	990	1260	76.5	Bantalan 23064 CC/W33
320	480	121	2113.2	3420	990	1260	74	Bantalan 23064 CCK/W33
320	540	176	3287.7	4950	765	990	165	Bantalan 23164 CAC/W33
320	540	176	3287.7	4950	765	990	165	23164 CACK/W33 Bantalan
320	540	176	3530.7	5400	765	990	165	Bantalan 23164 CC/W33
320	540	176	3530.7	5400	765	990	160	Bantalan 23164 CCK/W33
320	540	176	3536.1	5490		234	165	Bantalan 23164-2CS5/VT143
320	540	176	3536.1	5490		234	160	Bantalan 23164-2CS5K/VT143
320	580	208	4146.3	6030	630	855	240	Bantalan 23264 CAC/W33
320	580	208	4146.3	6030	630	855	235	23264 CACK/W33 Bantalan
320	580	208	4146.3	6030	630	1260	250	Bantalan 23264 CC/C4W33VA991
320	580	208	4146.3	6030	630	855	250	Bantalan 23264 CC/W33
320	580	208	4146.3	6030	630	855	240	Bantalan 23264 CCK/W33
320	440	90	1332	2430	1260	1350	41	Bantalan 23964 CC/W33
320	440	90	1332	2430	1260	1350	39.5	Bantalan 23964 CCK/W33
320	480	160	2672.1	4590	720	1620	100	Bantalan 24064 CC/C4W33VA991
320	480	160	2672.1	4590	720	1080	100	Bantalan 24064 CC/W33
320	480	160	2672.1	4590	720	1080	100	Bantalan 24064 CCK30/W33
320	540	218	3955.5	6390	450	990	195	Bantalan 24164 CC/C4W33VA991
320	540	218	3955.5	6390	450	630	195	Bantalan 24164 CC/W33
320	540	218	3955.5	6390	450	630	190	24164 Bantalan CCK30/W33
320	540	218	3956.4	6390		63	200	Bantalan 24164-2CS5K30/C3HGEA8
340	520	133	2530.8	4095	900	1170	105	Bantalan 23068 CAC/W33
340	520	133	2530.8	4095	900	1170	105	23068 CACK/W33 Bantalan

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
340	520	133	2530.8	4095	900	1170	100	Bantalan 23068 CC/W33
340	520	133	2530.8	4095	900	1170	98	Bantalan 23068 CCK/W33
340	580	190	3856.5	5895	720	900	210	Bantalan 23168 CAC/W33
340	580	190	3856.5	5895	720	900	205	23168 CACK/W33 Bantalan
340	580	190	4000.5	6120	720	900	220	Bantalan 23168 CC/W33
340	580	190	4000.5	6120	720	900	215	Bantalan 23168 CCK/W33
340	580	190	4006.8	6120		216	210	Bantalan 23168-2CS5/VT143
340	580	190	4007.7	6120		216	206	Bantalan 23168-2CS5K/VT143
340	620	224	4825.8	7020	504	720	295	Bantalan 23268 CA/W33
340	620	224	4825.8	7020	504	720	285	23268 CAK/W33 Bantalan
340	460	90	1341	2520	1170	1260	43.5	Bantalan 23968 CC/W33
340	460	90	1341	2520	1170	1260	42	Bantalan 23968 CCK/W33
340	520	180	3258.9	5580	675	1440	135	Bantalan 24068 CC/C4W33VA991
340	520	180	3258.9	5580	675	990	140	Bantalan 24068 CC/W33
340	520	180	3258.9	5580	675	990	135	Bantalan 24068 CCK30/W33
340	580	243	4938.3	7785	387	567	270	Bantalan 24168 ECAC/W33
340	580	243	4938.3	7785	387	567	265	24168 Bantalan ECACK30/W33
340	580	243	4938.3	7785	387	567	255	Bantalan 24168 ECCJ/W33
340	580	243	4938.3	7785	387	567	250	24168 ECCK30J/W33 Bantalan
360	650	170	3987	5580	567	765	250	22272 CA/W33 Bantalan
360	650	170	3987	5580	567	765	245	22272 Bantalan CAK/W33
360	540	134	2495.7	4185	855	1080	110	Bantalan 23072 CAC/W33
360	540	134	2495.7	4185	855	1080	110	23072 CACK/W33 Bantalan
360	540	134	2565	4320	855	1080	110	Bantalan 23072 CC/W33
360	540	134	2565	4320	855	1080	105	Bantalan 23072 CCK/W33
360	600	192	4063.5	6255	675	900	230	Bantalan 23172 CC/W33
360	600	192	4063.5	6255	675	900	220	23172 Bantalan CCK/W33
360	600	192	4068.9	6255		198	213	Bantalan 23172-2CS5/VT143
360	600	192	4068.9	6255		198	206	Bantalan 23172-2CS5K/VT143
360	650	232	5096.7	7470	477	675	335	23272 CA/W33 Bantalan

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
360	650	232	5096.7	7470	477	675	325	23272 Bantalan CAK/W33
360	650	232	5102.1	7470		144	332	Bantalan 23272-2CS5/VT143
360	650	232	5102.1	7470		144	322	Bantalan 23272-2CS5K/VT143
360	480	90	1310.4	2475	1080	1170	45	Bantalan 23972 CC/W33
360	480	90	1310.4	2475	1080	1170	43.5	Bantalan 23972 CCK/W33
360	540	180	3334.5	5895	630	1440	145	Bantalan 24072 CC/C4W33VA991
360	540	180	3334.5	5895	630	900	155	Bantalan 24072 CC/W33
360	540	180	3334.5	5895	630	900	150	24072 Bantalan CCK30/W33
360	600	243	5163.3	8370	360	540	270	24172 Bantalan ECCJ/W33
360	600	243	5163.3	8370	360	540	270	24172 Bantalan ECCK30J/W33
360	600	243	5174.1	8370		216	270	Bantalan 24172-2CS5/VT143
380	560	135	2612.7	4410	810	1080	110	Bantalan 23076 CAC/W33
380	560	135	2612.7	4410	810	1080	110	23076 CACK/W33 Bantalan
380	560	135	2685.6	4500	810	1080	110	Bantalan 23076 CC/W33
380	560	135	2685.6	4500	810	1080	110	Bantalan 23076 CCK/W33
380	560	135	2688.3	4500		234	110	Bantalan 23076-2CS5/VT143
380	620	194	4104.9	6390	504	900	230	23176 CA/W33 Bantalan
380	620	194	4104.9	6390	504	900	225	23176 CAK/W33 Bantalan
380	620	194	4104.9	6390		144	232	Bantalan 23176-2CS5/VT143
380	620	194	4104.9	6390		144	225	Bantalan 23176-2CS5K/VT143
380	680	240	5513.4	8235	450	675	375	23276 CA/W33 Bantalan
380	680	240	5513.4	8235	450	675	365	23276 CAK/W33 Bantalan
380	520	106	1809.9	3420	990	1080	64.5	Bantalan 23976 CC/W33
380	520	106	1809.9	3420	990	1080	62.5	Bantalan 23976 CCK/W33
380	560	180	3407.4	6120	603	855	150	Bantalan 24076 CC/W33
380	560	180	3407.4	6120	603	855	150	24076 Bantalan CCK30/W33
380	620	243	5342.4	8820	324	477	285	Bantalan 24176 ECA/W33
380	620	243	5342.4	8820	324	477	280	24176 Bantalan ECAK30/W33
380	620	243	5355	8820		54	285	Bantalan 24176-2CS5K30/C3HGEA8
400	820	243	7048.8	9360	387	675	620	Bantalan 22380 CA/W33

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
400	820	243	7048.8	9360	387	675	610	Bantalan 22380 CAK/W33
400	600	148	3071.7	5130	765	990	150	Bantalan 23080 CAC/W33
400	600	148	3071.7	5130	765	990	145	Bantalan 23080 CACK/W33
400	600	148	3159.9	5265	765	990	145	Bantalan 23080 CC/W33
400	600	148	3159.9	5265	765	990	140	Bantalan 23080 CCK/W33
400	600	148	3163.5	5265		216	143	Bantalan 23080-2CS5/VT143
400	600	148	3163.5	5265		216	143	Bantalan 23080-2CS5K/VT143
400	650	200	4377.6	6885	477	855	260	Bantalan 23180 CA/W33
400	650	200	4377.6	6885	477	855	250	Bantalan 23180 CAK/W33
400	650	200	4377.6	6885		135	255	Bantalan 23180-2CS5/VT143
400	650	200	4377.6	6885		135	255	Bantalan 23180-2CS5K/VT143
400	720	256	6192.9	9360	432	603	450	Bantalan 23280 CA/W33
400	720	256	6192.9	9360	432	603	440	Bantalan 23280 CAK/W33
400	540	106	1834.2	3510	990	1080	69.5	Bantalan 23980 CC/W33
400	540	106	1834.2	3510	990	1080	67	Bantalan 23980 CCK/W33
400	600	200	4056.3	7200	567	810	210	Bantalan 24080 ECCJ/W33
400	600	200	4056.3	7200	567	810	205	Bantalan 24080 ECCK30J/W33
400	650	250	5697.9	9540	306	450	320	Bantalan 24180 ECA/W33
400	650	250	5697.9	9540	306	450	315	Bantalan 24180 ECAK30/W33
400	650	250	5708.7	9540		49.5	320	Bantalan 24180-2CS5K30/C3HGEA8
420	620	150	3186.9	5400	540	990	155	Bantalan 23084 CA/W33
420	620	150	3186.9	5400	540	990	150	Bantalan 23084 CAK/W33
420	700	224	5327.1	8370	432	810	345	Bantalan 23184 CJ/W33
420	700	224	5327.1	8370	432	810	335	Bantalan 23184 CKJ/W33
420	700	224	5327.1	8370		171	350	Bantalan 23184-2CS5/VT143
420	700	224	5327.1	8370		171	340	Bantalan 23184-2CS5K/VT143
420	760	272	6909.3	10440	405	567	535	Bantalan 23284 CA/W33
420	760	272	6909.3	10440	405	567	520	23284 CAK/W33 Bantalan
420	760	272	6914.7	10440		115.2	535	Bantalan 23284-2CS5/VT143
420	760	272	6914.7	10440		115.2	519	Bantalan 23284-2CS5K/VT143

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
420	560	106	1874.7	3735	900	990	77	Bantalan 23984 CC/W33
420	560	106	1874.7	3735	900	990	75	Bantalan 23984 CCK/W33
420	620	200	4149	7470	477	810	210	Bantalan 24084 ECA/W33
420	620	200	4149	7470	477	810	205	Bantalan 24084 ECAK30/W33
420	700	280	6819.3	11250	288	432	425	Bantalan 24184 ECA/W33
420	700	280	6819.3	11250	288	432	420	24184 Bantalan ECAK30/W33
420	700	280	6831.9	11250		49.5	425	Bantalan 24184-2CS5K30/C3HGEA8
440	650	157	3447.9	5895	504	900	180	Bantalan 23088 CA/W33
440	650	157	3447.9	5895	504	900	175	Bantalan 23088 CAK/W33
440	650	157	3450.6	5895		171	178	Bantalan 23088-2CS5/VT143
440	720	226	5593.5	9000	405	765	365	Bantalan 23188 CA/W33
440	720	226	5593.5	9000	405	765	355	23188 CAK/W33 Bantalan
440	720	226	5598	9000		162	360	Bantalan 23188-2CS5/VT143
440	720	226	5598	9000		162	348	Bantalan 23188-2CS5K/VT143
440	790	280	7335	11250	387	540	590	Bantalan 23288 CA/W33
440	790	280	7335	11250	387	540	575	23288 CAK/W33 Bantalan
440	600	118	2255.4	4410	855	900	98	Bantalan 23988 CC/W33
440	600	118	2255.4	4410	855	900	95	Bantalan 23988 CCK/W33
440	650	212	4488.3	8235	450	765	240	Bantalan 24088 ECA/W33
440	650	212	4488.3	8235	450	765	240	Bantalan 24088 ECAK30/W33
440	720	280	6999.3	11880	270	405	445	Bantalan 24188 ECA/W33
440	720	280	6999.3	11880	270	405	440	24188 Bantalan ECAK30/W33
440	720	280	7013.7	11880		45	440	Bantalan 24188-2CS5K30/C3HGEA8
460	680	163	3658.5	6255	504	855	200	Bantalan 23092 CA/W33
460	680	163	3658.5	6255	504	855	195	Bantalan 23092 CAK/W33
460	760	240	6084	9720	387	720	430	23192 CA/W33 Bantalan
460	760	240	6084	9720	387	720	420	23192 CAK/W33 Bantalan
460	760	240	6088.5	9720		115.2	427	Bantalan 23192-2CS5/VT143
460	760	240	6088.5	9720		115.2	414	Bantalan 23192-2CS5K/VT143
460	830	296	8062.2	12330	360	504	695	23292 CA/W33 Bantalan

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
460	830	296	8062.2	12330	360	504	675	23292 CAK/W33 Bantalan
460	620	118	2302.2	4500	540	900	105	Bantalan 23992 CA/W33
460	620	118	2302.2	4500	540	900	99.5	Bantalan 23992 CAK/W33
460	680	218	4860.9	9000	432	720	275	Bantalan 24092 ECA/W33
460	680	218	4860.9	9000	432	720	270	24092 Bantalan ECAK30/W33
460	760	300	7747.2	13140	252	387	540	24192 Bantalan ECA/W33
460	760	300	7747.2	13140	252	387	530	24192 Bantalan ECAK30/W33
460	760	300	7767	13140		45	535	Bantalan 24192-2CS5K30/C3HGEA8
460	580	118	1873.8	4410	567	990	75.5	24892 Bantalan CAK30MA/W20
460	580	118	1873.8	4410	567	990	76.5	24892 Bantalan CAMA/W20
480	700	165	3596.4	6120	477	855	210	Bantalan 23096 CA/W33
480	700	165	3596.4	6120	477	855	205	Bantalan 23096 CAK/W33
480	790	248	6625.8	10800	360	675	485	Bantalan 23196 CA/W33
480	790	248	6625.8	10800	360	675	470	23196 CAK/W33 Bantalan
480	790	248	6630.3	10800		153	485	Bantalan 23196-2CS5/VT143
480	790	248	6630.3	10800		153	469	Bantalan 23196-2CS5K/VT143
480	870	310	8824.5	13500	342	477	805	23296 CA/W33 Bantalan
480	870	310	8824.5	13500	342	477	785	23296 CAK/W33 Bantalan
480	650	128	2691	5130	504	900	125	Bantalan 23996 CA/W33
480	650	128	2691	5130	504	900	120	Bantalan 23996 CAK/W33
480	700	218	4971.6	9360	405	675	285	Bantalan 24096 ECA/W33
480	700	218	4971.6	9360	405	675	280	Bantalan 24096 ECAK30/W33
480	790	308	8278.2	14040	234	360	595	Bantalan 24196 ECA/W33
480	790	308	8278.2	14040	234	360	585	24196 Bantalan ECAK30/W33
480	790	308	8293.5	14040		40.5	590	Bantalan 24196-2CS5K30/C3HGEA8
500	720	167	3922.2	7020	450	810	220	Bantalan 230/500 CA/W33
500	720	167	3922.2	7020	450	810	215	Bantalan 230/500 CAK/W33
500	830	264	7233.3	11610	342	630	575	Bantalan 231/500 CA/W33
500	830	264	7233.3	11610	342	630	555	Bantalan 231/500 CAK/W33
500	920	336	10064.7	15570	324	450	990	Bantalan 232/500 CA/W33

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
500	920	336	10064.7	15570	324	450	965	Bantalan 232/500 CAK/W33
500	670	128	2670.3	5400	477	855	130	Bantalan 239/500 CA/W33
500	670	128	2670.3	5400	477	855	125	Bantalan 239/500 CAK/W33
500	720	218	5199.3	9900	387	630	295	Bantalan 240/500 ECA/W33
500	720	218	5199.3	9900	387	630	290	Bantalan 240/500 ECAK30/W33
500	830	325	9110.7	15300	234	342	695	Bantalan 241/500 ECA/W33
500	830	325	9110.7	15300	234	342	685	Bantalan 241/500 ECAK30/W33
500	830	325	9130.5	15300		40.5	680	Bantalan 241/500-2CS5K30/C3HGEA8
500	830	325	9130.5	15300		153	680	Bantalan 241/500-2CS5K30/C3VT143
530	780	185	4740.3	8370	405	720	300	Bantalan 230/530 CA/W33
530	780	185	4740.3	8370	405	720	295	Bantalan 230/530 CAK/W33
530	870	272	7673.4	12600	324	603	640	Bantalan 231/530 CA/W33
530	870	272	7673.4	12600	324	603	620	Bantalan 231/530 CAK/W33
530	980	355	11941.2	18360	288	432	1195	Bantalan 232/530 CA/W33
530	980	355	11941.2	18360	288	432	1165	Bantalan 232/530 CAK/W33
530	710	136	2977.2	6030	450	810	155	Bantalan 239/530 CA/W33
530	710	136	2977.2	6030	450	810	150	Bantalan 239/530 CAK/W33
530	780	250	6434.1	11880	18	45	390	240/530 SM Bantalan
530	780	250	6275.7	11880	360	603	410	Bantalan 240/530 ECA/W33
530	780	250	6275.7	11880	360	603	405	Bantalan 240/530 ECAK30/W33
530	870	335	9818.1	17100	216	324	780	Bantalan 241/530 ECA/W33
530	870	335	9818.1	17100	216	324	770	Bantalan 241/530 ECAK30/W33
530	870	335	9844.2	17100		40.5	780	Bantalan 241/530-2CS5K30/C3HGEA8
530	650	118	1911.6	4770	477	855	85	Bantalan 248/530 CAK30MA/W20
560	820	195	5201.1	9180	387	675	350	Bantalan 230/560 CA/W33
560	820	195	5201.1	9180	387	675	340	Bantalan 230/560 CAK/W33
560	920	280	8636.4	14400	306	567	745	Bantalan 231/560 CA/W33
560	920	280	8636.4	14400	306	567	720	Bantalan 231/560 CAK/W33
560	1030	365	12546	19800	252	387	1355	Bantalan 232/560 CA/W33
560	1030	365	12546	19800	252	387	1320	Bantalan 232/560 CAK/W33

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
560	750	140	3213.9	6480	405	765	175	Bantalan 239/560 CA/W33
560	750	140	3213.9	6480	405	765	170	Bantalan 239/560 CAK/W33
560	820	258	6777	12600	18	45	445	240/560 SM Bantalan
560	820	258	6858.9	13140	342	567	465	Bantalan 240/560 ECA/W33
560	820	258	6858.9	13140	342	567	460	Bantalan 240/560 ECAK30/W33
560	920	355	11129.4	19440	198	288	915	Bantalan 241/560 ECJ/W33
560	920	355	11129.4	19440	198	288	900	Bantalan 241/560 ECK30J/W33
560	920	355	11148.3	19440		36	920	Bantalan 241/560-2CS5K30/C3HGEA8
600	870	200	5626.8	10260	360	630	400	Bantalan 230/600 CA/W33
600	870	200	5626.8	10260	360	630	390	Bantalan 230/600 CAK/W33
600	980	300	9664.2	16200	288	504	900	Bantalan 231/600 CA/W33
600	980	300	9664.2	16200	288	504	875	Bantalan 231/600 CAK/W33
600	1090	388	14086.8	22950	234	360	1610	Bantalan 232/600 CA/W33
600	800	150	3619.8	7470	387	675	215	Bantalan 239/600 CA/W33
600	800	150	3619.8	7470	387	675	210	Bantalan 239/600 CAK/W33
600	870	272	7651.8	14670	18	40.5	520	240/600 SM Bantalan
600	870	272	7722	15300	306	504	540	Bantalan 240/600 ECA/W33
600	870	272	7722	15300	306	504	535	Bantalan 240/600 ECAK30/W33
600	980	375	12169.8	21240	180	270	1100	Bantalan 241/600 ECA/W33
600	980	375	12169.8	21240	180	270	1085	Bantalan 241/600 ECAK30/W33
600	980	375	12199.5	21600		36	1095	Bantalan 241/600-2CS5K30/C3HGEA8
630	920	212	6208.2	11250	342	603	475	Bantalan 230/630 CA/W33
630	920	212	6208.2	11250	342	603	460	Bantalan 230/630 CAK/W33
630	1030	315	11340	18720	234	477	1035	Bantalan 231/630 CA/W33
630	1030	315	11340	18720	234	477	1005	Bantalan 231/630 CAK/W33
630	780	112	2290.5	5490	387	675	125	Bantalan 238/630 CAMA/W20
630	850	165	4269.6	8820	360	630	270	Bantalan 239/630 CA/W33
630	850	165	4269.6	8820	360	630	265	Bantalan 239/630 CAK/W33
630	920	290	8376.3	15840	18	40.5	625	240/630 SM Bantalan
630	920	290	8235	16200	288	477	640	Bantalan 240/630 ECJ/W33

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
630	920	290	8235	16200	288	477	630	Bantalan 240/630 ECK30J/W33
630	1030	400	13500.9	24300	171	252	1295	Bantalan 241/630 ECA/W33
630	1030	400	13500.9	24300	171	252	1280	Bantalan 241/630 ECAK30/W33
630	1030	400	13535.1	24300		31.5	1295	Bantalan 241/630-2CS5K30/C3HGEA8
670	980	230	7127.1	13140	306	540	585	Bantalan 230/670 CA/W33
670	980	230	7127.1	13140	306	540	570	Bantalan 230/670 CAK/W33
670	1090	336	11790.9	20160	216	450	1235	Bantalan 231/670 CA/W33
670	1090	336	11790.9	20160	216	450	1200	Bantalan 231/670 CAK/W33
670	820	112	2378.7	5760	360	630	130	Bantalan 238/670 CAMA/W20
670	900	170	4631.4	9720	324	603	310	Bantalan 239/670 CA/W33
670	900	170	4631.4	9720	324	603	300	Bantalan 239/670 CAK/W33
670	980	308	9369.9	18000	18	40.5	755	240/670 SM Bantalan
670	980	308	9391.5	18360	270	450	790	Bantalan 240/670 ECA/W33
670	980	308	9391.5	18360	270	450	775	Bantalan 240/670 ECAK30/W33
670	1090	412	14742.9	26100	162	234	1495	Bantalan 241/670 ECA/W33
670	1090	412	14742.9	26100	162	234	1470	Bantalan 241/670 ECAK30/W33
670	1090	412	14779.8	26100		31.5	1480	Bantalan 241/670-2CS5K30/C3HGEA8
670	820	150	3238.2	8550	360	630	175	Bantalan 248/670 CAMA/W20
710	1030	236	7802.1	14670	270	504	655	Bantalan 230/710 CA/W33
710	1030	236	7802.1	14670	270	504	635	Bantalan 230/710 CAK/W33
710	1150	345	13258.8	23400	216	405	1425	Bantalan 231/710 CA/W33
710	1150	345	13258.8	23400	216	405	1385	Bantalan 231/710 CAK/W33
710	1280	450	19087.2	31050	180	288	2545	Bantalan 232/710 CA/W33
710	1280	450	19087.2	31050	180	288	2475	Bantalan 232/710 CAK/W33
710	870	118	2711.7	6750	324	603	155	Bantalan 238/710 CAMA/W20
710	950	180	5131.8	10800	306	540	365	Bantalan 239/710 CA/W33
710	950	180	5131.8	10800	306	540	350	Bantalan 239/710 CAK/W33
710	1030	315	10049.4	19800	18	36	845	240/710 SM Bantalan
710	1030	315	10047.6	20520	234	405	890	Bantalan 240/710 ECA/W33
710	1030	315	10047.6	20520	234	405	880	Bantalan 240/710 ECAK30/W33

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
710	1150	438	16141.5	29250	144	216	1750	Bantalan 241/710 ECA/W33
710	1150	438	16141.5	29250	144	216	1725	Bantalan 241/710 ECAK30/W33
710	1150	438	16172.1	29250		27	1750	Bantalan 241/710-2CS5K30/C3HGEA8
710	950	243	6174	14040	270	450	485	Bantalan 249/710 CA/W33
710	950	243	6174	14040	270	450	480	Bantalan 249/710 CAK30/W33
750	1090	250	9054.9	16740	252	477	780	Bantalan 230/750 CA/W33
750	1090	250	9054.9	16740	252	477	755	Bantalan 230/750 CAK/W33
750	1220	365	14866.2	26100	198	387	1705	Bantalan 231/750 CA/W33
750	1220	365	14866.2	26100	198	387	1660	Bantalan 231/750 CAK/W33
750	920	128	3064.5	7650	306	540	190	Bantalan 238/750 CAMA/W20
750	1000	185	5524.2	11880	288	504	410	Bantalan 239/750 CA/W33
750	1000	185	5524.2	11880	288	504	395	Bantalan 239/750 CAK/W33
750	1090	335	11078.1	22050	18	36	1005	240/750 SM Bantalan
750	1090	335	11011.5	22500	216	387	1060	Bantalan 240/750 ECA/W33
750	1090	335	11011.5	22500	216	387	1045	Bantalan 240/750 ECAK30/W33
750	1220	475	18390.6	33750	135	198	2150	Bantalan 241/750 ECA/W33
750	1220	475	18390.6	33750	135	198	2115	Bantalan 241/750 ECAK30/W33
750	1220	475	18436.5	33750		27	2130	Bantalan 241/750-2CS5K30/C3HGEA8
750	1000	250	6929.1	16200	252	432	555	Bantalan 249/750 CA/W33
750	1000	250	6929.1	16200	252	432	545	Bantalan 249/750 CAK30/W33
800	1150	258	9301.5	18000	234	432	880	Bantalan 230/800 CA/W33
800	1150	258	9301.5	18000	234	432	855	Bantalan 230/800 CAK/W33
800	1280	375	16229.7	28350	180	360	1880	Bantalan 231/800 CA/W33
800	1280	375	16229.7	28350	180	360	1825	Bantalan 231/800 CAK/W33
800	1420	488	22475.7	38700	162	252	3280	Bantalan 232/800 CAF/W33
800	1420	488	22475.7	38700	162	252	3280	Bantalan 232/800 CAKF/W33
800	1060	195	5935.5	12870	252	477	475	Bantalan 239/800 CA/W33
800	1060	195	5935.5	12870	252	477	460	Bantalan 239/800 CAK/W33
800	1150	345	12102.3	24750	18	36	1140	240/800 SM Bantalan
800	1150	345	12087.9	25650	198	360	1200	Bantalan 240/800 ECA/W33

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
800	1280	475	19428.3	36450	126	180	2335	Bantalan 241/800 ECA/W33
800	1280	475	19472.4	36450		27	2325	Bantalan 241/800-2CS5K30/C3HGEA8
800	980	180	4302	11610	288	504	295	Bantalan 248/800 CAK30MA/W20
800	1060	258	7322.4	17370	216	387	630	Bantalan 249/800 CA/W33
850	1220	272	10161.9	19440	216	405	1040	Bantalan 230/850 CA/W33
850	1220	272	10161.9	19440	216	405	1010	Bantalan 230/850 CAK/W33
850	1500	515	24872.4	43200	144	234	3940	Bantalan 232/850 CAF/W33
850	1030	136	3493.8	9000	234	477	235	Bantalan 238/850 CAKMA/W20
850	1030	136	3493.8	9000	234	477	245	Bantalan 238/850 CAMA/W20
850	1120	200	6364.8	14040	234	432	540	Bantalan 239/850 CA/W33
850	1120	200	6364.8	14040	234	432	520	Bantalan 239/850 CAK/W33
850	1220	365	13570.2	27900	18	36	1355	240/850 SM Bantalan
850	1220	365	13664.7	28350	180	324	1420	Bantalan 240/850 ECA/W33
850	1220	365	13664.7	28350	180	324	1395	Bantalan 240/850 ECAK30/W33
850	1360	500	21444.3	40500	117	171	2710	Bantalan 241/850 ECA/W33
850	1360	500	21444.3	40500	117	171	2735	Bantalan 241/850 ECAK30/W33
850	1360	500	21483	40500		27	2760	Bantalan 241/850-2CS5K30/C3HGEA8
850	1120	272	8451	20520	198	360	740	Bantalan 249/850 CA/W33
850	1120	272	8451	20520	198	360	725	Bantalan 249/850 CAK30/W33
900	1280	280	10801.8	20880	198	360	1170	Bantalan 230/900 CA/W33
900	1280	280	10801.8	20880	198	360	1140	Bantalan 230/900 CAK/W33
900	1180	206	6886.8	15300	216	405	605	Bantalan 239/900 CA/W33
900	1180	206	6886.8	15300	216	405	585	Bantalan 239/900 CAK/W33
900	1280	375	14593.5	30600	18	36	1515	240/900 SM Bantalan
900	1280	375	14566.5	31050	171	306	1580	Bantalan 240/900 ECA/W33
900	1280	375	14566.5	31050	171	306	1555	Bantalan 240/900 ECAK30/W33
900	1420	515	22779	44100	108	162	3080	Bantalan 241/900 ECA/W33
900	1420	515	22779	44100	108	162	3040	Bantalan 241/900 ECAK30/W33
900	1420	515	22824	44100		22.5	3000	Bantalan 241/900-2CS5K30/C3HGEA8
900	1090	190	4885.2	13770	216	432	375	Bantalan 248/900 CAMA/W20

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
950	1360	300	12926.7	25650	180	342	1440	Bantalan 230/950 CA/W33
950	1360	300	12926.7	25650	180	342	1395	Bantalan 230/950 CAK/W33
950	1250	224	7745.4	17640	198	387	750	Bantalan 239/950 CA/W33
950	1250	224	7745.4	17640	198	387	725	Bantalan 239/950 CAK/W33
950	1360	412	16405.2	34200	18	31.5	1875	240/950 SM Bantalan
950	1500	545	25102.8	49500	99	144	3640	Bantalan 241/950 ECA/W33
950	1500	545	25102.8	49500	99	144	3580	Bantalan 241/950 ECAK30/C3LW33
950	1500	545	25148.7	49500		22.5	3610	Bantalan 241/950-2CS5K30/C3HGEA8
950	1250	300	9630.9	23400	162	306	1000	Bantalan 249/950 CA/W33
950	1250	300	9630.9	23400	162	306	985	Bantalan 249/950 CAK30/W33
1000	1580	462	23085	43200	126	252	3480	Bantalan 231/1000 CAF/W33
1000	1580	462	23085	43200	126	252	3380	Bantalan 231/1000 CAKF/W33
1000	1220	165	4864.5	12870	198	360	415	Bantalan 238/1000 CAKMA/W20
1000	1420	412	16732.8	36450	144	252	2120	Bantalan 240/1000 CAF/W33
1000	1420	412	16732.8	36450	144	252	2085	Bantalan 240/1000 CAK30F/W33
1000	1580	580	28056.6	55800	90	135	4295	Bantalan 241/1000 ECA/W33
1000	1580	580	28056.6	55800	90	135	4230	Bantalan 241/1000 ECAK30/C3W33
1000	1580	580	28112.4	55800		22.5	4245	Bantalan 241/1000-2CS5K30/C3HGEA8
1000	1320	315	10745.1	26100	153	288	1185	Bantalan 249/1000 CA/W33
1060	1400	250	10199.7	23400	162	324	1065	Bantalan 239/1060 CAF/W33
1060	1400	250	10199.7	23400	162	324	1035	Bantalan 239/1060 CAKF/W33
1060	1500	438	18651.6	40950	135	234	2495	Bantalan 240/1060 CAF/W33
1060	1500	438	18651.6	40950	135	234	2455	Bantalan 240/1060 CAK30F/W33
1060	1660	600	28323.9	56700	81	126	4675	Bantalan 241/1060 ECAK30/C3HW33
1060	1660	600	28323.9	56700		18	4805	Bantalan 241/1060-2CS6K30/C3HGEA8
1060	1400	335	12018.6	29250	144	252	415	Bantalan 249/1060 CAF/W33
1060	1400	335	12018.6	29250	144	252	1395	Bantalan 249/1060 CAK30F/W33
1100	1730	660	31619.7	63900			5735	Bantalan BS2-8138-2CS6K30/C4LGEA8
1120	1580	462	20642.4	44100	18	31.5	2765	240/1120 SM Bantalan
1120	1580	462	20127.6	45000	117	216	2895	Bantalan 240/1120 CAF/W33

Dimensi dasar			Peringkat beban dasar		Peringkat kecepatan		Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Model
Dimensi dasar			Dinamis	Statis	Kecepatan referensi	Membatasi kecepatan	Massaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa	Nomor bantalan.
d [mm]	D [mm]	B [mm]	C [kN]	C0 [kN]	[r/mnt]	[r/mnt]	[kg]	Nomor bantalan.
1120	1580	462	20127.6	45000	117	216	2850	Bantalan 240/1120 CAK30F/W33
1120	1750	630	30614.4	61200	76.5	117	5410	Bantalan 241/1120 ECAK30/C3HW33
1120	1750	630	30614.4	61200		18	5535	Bantalan 241/1120-2CS6K30/C3HGEA8
1120	1460	335	12346.2	31050	126	234	1485	Bantalan 249/1120 CAF/W33
1180	1420	180	6100.2	16740	153	288	575	Bantalan 238/1180 CAKFA/W20
1180	1540	272	11768.4	27900	135	270	1350	Bantalan 239/1180 CAF/W33
1180	1540	272	11768.4	27900	135	270	1310	Bantalan 239/1180 CAKF/W33
1180	1660	475	22923.9	52650	117	198	3315	Bantalan 240/1180 CAK30F/W33
1180	1850	670	34439.4	70200	67.5	99	6480	Bantalan 241/1180 ECAK30/C3HW33
1180	1850	670	34439.4	70200		18	6645	Bantalan 241/1180-2CS6K30/C3HGEA8
1180	1540	355	14175.9	36450	117	216	1765	Bantalan 249/1180 CAF/W33
1250	1750	375	19130.4	40500	117	216	2845	Bantalan 230/1250 CAF/W33
1250	1750	375	19130.4	40500	117	216	2760	Bantalan 230/1250 CAKF/W33
1250	1950	710	36802.8	79200	63	90	7725	Bantalan 241/1250 ECAK30/C3HW33
1250	1950	710	36802.8	79200		18	7865	Bantalan 241/1250-2CS6K30/C3HGEA8
1320	1720	400	16842.6	44100	99	180	2480	Bantalan 249/1320 CAF/W33
1320	1720	400	16842.6	44100	99	180	2440	Bantalan 249/1320 CAK30F/W33
1500	1820	315	13215.6	40500	99	198	1725	Bantalan 248/1500 CAK30FA/W20
1800	2180	375	18246.6	56700	67.5	126	2920	248/1800 CAK30FA/W20 Bantalan

Rekayasa Masa Depan Gerak

Tentang UKL

Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China 22205 E Bantalan suppliers and OEM/ODM 22205 E Bantalan company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

Lebih Banyak Tentang Kami Ukl Bearing Manufacturing Co.,Ltd

0+

tahun

Pengalaman Industri
0+

Keberagaman model
0+

Jumlah Karyawan
0

$

Nilai ekspor tahunan

Sertifikat Kehormatan

Berita

Mengapa Bantalan Rol Silinder NU 309 Unggul dalam Desain Motor dan Gearbox?
04 Jun, 2026
Poin Utama: Bearing NU 309 Unggul sebagai Bearing Mengambang Untuk desain motor dan girboks yang memerlukan pemuaian panas pada poros, maka bantalan NU 309 memberikan s...

BACA LEBIH LANJUT
Cara Memasang Cincin AV Nilos 2206 (Panduan Langkah demi Langkah)
28 May, 2026
Pasang dengan sisi terbuka menghadap bantalan Untuk menginstal dengan benar 2206 AV Nilos Ring, posisikan sehingga sisi cembung (terbuka) mengarah ke jalur bantalan. Cin...

BACA LEBIH LANJUT
Bagaimana Cara Memilih Bantalan Bola Kontak Sudut yang Tepat untuk Aplikasi Kecepatan Tinggi?
21 May, 2026
Memilih komponen rolling yang optimal untuk mesin berputar berkecepatan tinggi memerlukan pemahaman mendalam tentang kondisi pengoperasian, geometri internal, dan manajemen termal. Di antara mesin ...

BACA LEBIH LANJUT
Presisi Di Bawah Tekanan: Faktor Kunci yang Mendorong Pemilihan Bantalan Peralatan Medis
14 May, 2026
Dalam bidang teknologi medis yang berkembang pesat, komponen terkecil sekalipun dapat menentukan keberhasilan alat penyelamat jiwa. Diantaranya, bantalan peralatan medis memainkan per...

BACA LEBIH LANJUT
