3 Bantalan Terpasang Flange Baut

Bantalan yang dipasang pada flensa 3 baut adalah kombinasi rumah bantalan flensa 3 baut dan bantalan bola cincin bagian dalam yang lebih lebar.
Rumah bantalan flensa 3 baut yang umum adalah FB200 (tugas standar) dan FCT200 (tugas ringan dengan besi ulet).
Penutup ujung dengan baja tekan mampu melindungi dari polusi dan debu luar.
Kemampuan menyelaraskan diri dari bantalan bola dapat mengkompensasi sedikit ketidaksejajaran statis pada poros. Sisipan bantalan dikunci pada poros dengan menggunakan sekrup set dan kerah pengunci eksentrik, dll.
Pelumas yang diisikan ke dalam sisipan bantalan bola dapat berupa gemuk standar, gemuk suhu rendah/tinggi, dan gemuk food grade.

Hubungi Kami

PRAV：Unit Bantalan Kartrid Flange BERIKUTNYA：Unit Bantalan Gantungan

Spesifikasi
Hubungi Kami

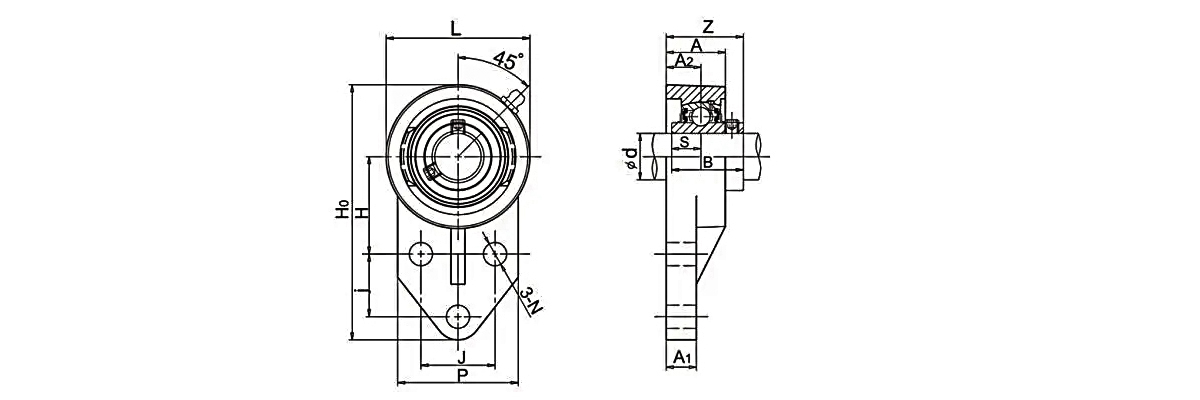

Nomor Satuan.	Diameter Poros		Dimensi (mm)													Ukuran Baut (pabrik)	Berat (kg)
	d		Ho	H	J	j	A2	A1	A	N	L	P	B	S	Z
	(dalam)	(mm)	Ho	H	J	j	A2	A1	A	N	L	P	B	S	Z
UCFB201		12	110	42	32	27	15	13	25.5	10	62	52	31	12.7	33.3	M8	0.62
UCFB201-8	1/2		110	42	32	27	15	13	25.5	10	62	52	31	12.7	33.3	M8	0.62
UCFB202		15	110	42	32	27	15	13	25.5	10	62	52	31	12.7	33.3	M8	0.58
UCFB202-9	16/9		110	42	32	27	15	13	25.5	10	62	52	31	12.7	33.3	M8	0.58
UCFB202-10	5/8		110	42	32	27	15	13	25.5	10	62	52	31	12.7	33.3	M8	0.58
UCFB203		17	110	42	32	27	15	13	25.5	10	60	52	31	12.7	33.3	M8	0.57
UCFB203-11	16/11		110	42	32	27	15	13	25.5	10	60	52	31	12.7	33.3	M8	0.57
UCFB204		20	110	42	32	27	15	13	25.5	10	62	52	31	12.7	33.3	M8	0.62
UCFB204-12	3/4		110	42	32	27	15	13	25.5	10	62	52	31	12.7	33.3	M8	0.62
UCFB205		25	116	45	34	27	16	13	27	10	68	56	34.1	14.3	35.7	M8	0.69
UCFB205-14	7/8		116	45	34	27	16	13	27	10	68	56	34.1	14.3	35.7	M8	0.69
UCFB205-15	116/5		116	45	34	27	16	13	27	10	68	56	34.1	14.3	35.7	M8	0.69
UCFB205-16	1/1		116	45	34	27	16	13	27	10	68	56	34.1	14.3	35.7	M8	0.69
UCFB206		30	130	50	40	29	18	13	31	10	78	65	38.1	15.9	40.2	M8	0.93
UCFB206-17	1/16		130	50	40	29	18	13	31	10	78	65	38.1	15.9	40.2	M8	0.93
UCFB206-18	1/8		130	50	40	29	18	13	31	10	78	65	38.1	15.9	40.2	M8	0.93
UCFB206-19	16/3		130	50	40	29	18	13	31	10	78	65	38.1	15.9	40.2	M8	0.93
UCFB206-20	1/4		130	50	40	29	18	13	31	10	78	65	38.1	15.9	40.2	M8	0.93
UCFB207		35	144	55	46	32	19	15	34	10	90	70	42.9	17.5	44.4	M8	1.3
UCFB207-20	1/4		144	55	46	32	19	15	34	10	90	70	42.9	17.5	44.4	M8	1.3
UCFB207-21	16/5		144	55	46	32	19	15	34	10	90	70	42.9	17.5	44.4	M8	1.3
UCFB207-22	3/8		144	55	46	32	19	15	34	10	90	70	42.9	17.5	44.4	M8	1.3
UCFB207-23	16/7		144	55	46	32	19	15	34	10	90	70	42.9	17.5	44.4	M8	1.3
UCFB208		40	164	60	50	41	21	16	36	12	100	78	49.2	19	51.2	M10	1.8
UCFB208-24	1/2		164	60	50	41	21	16	36	12	100	78	49.2	19	51.2	M10	1.8
UCFB208-25	16/9		164	60	50	41	21	16	36	12	100	78	49.2	19	51.2	M10	1.8
UCFB209		45	174	65	54	43	22	18	38	12	106	80	49.2	19	52.2	M10	2
UCFB209-26	5/8		174	65	54	43	22	18	38	12	106	80	49.2	19	52.2	M10	2
UCFB209-27	16/11		174	65	54	43	22	18	38	12	106	80	49.2	19	52.2	M10	2
UCFB209-28	3/4		174	65	54	43	22	18	38	12	106	80	49.2	19	52.2	M10	2
UCFB210		50	184	68	58	46	22	18	40	12	112	86	51.6	19	54.6	M10	2.3
UCFB210-30	7/8		184	68	58	46	22	18	40	12	112	86	51.6	19	54.6	M10	2.3
UCFB210-31	1-116/5		184	68	58	46	22	18	40	12	112	86	51.6	19	54.6	M10	2.3
UCFB210-32	1/2		184	68	58	46	22	18	40	12	112	86	51.6	19	54.6	M10	2.3

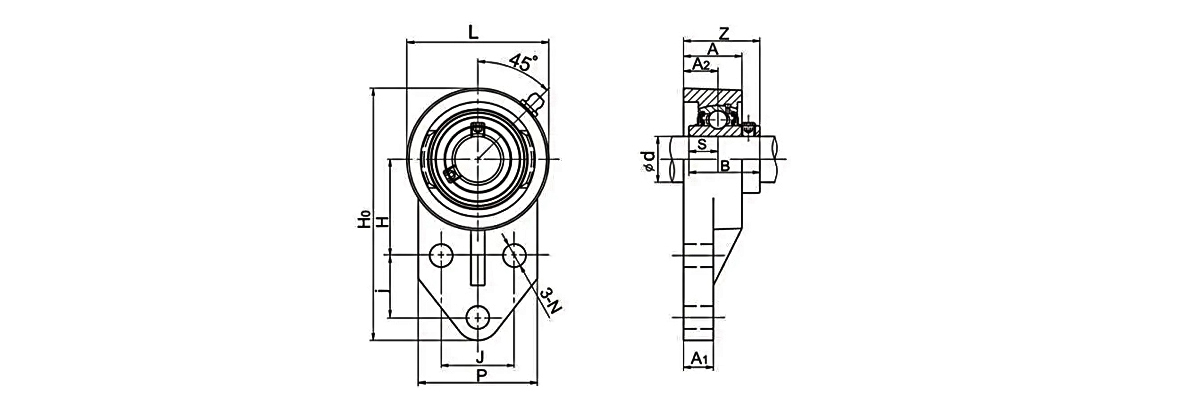

Nomor Satuan.	Diameter Poros		Dimensi (mm)													Ukuran Baut (pabrik)	Berat (kg)
	d		Ho	H	J	j	A2	A1	A	N	L	P	B	S	Z
	(dalam)	(mm)	Ho	H	J	j	A2	A1	A	N	L	P	B	S	Z
UCFB201A		12	107.95	42.86	38.1	22.22	15.88	7.94	25.4	9.92	63.5	60.33	31	12.7	34.18	M8	0.62
UCFB201-8A	1/2		107.95	42.86	38.1	22.22	15.88	7.94	25.4	9.92	63.5	60.33	31	12.7	34.18	M8	0.62
UCFB202A		15	107.95	42.86	38.1	22.22	15.88	7.94	25,4	9.92	63.5	60.33	31	12.7	34.18	MS	0.58
UCFB202-9A	16/9		107.95	42.86	38.1	22.22	15.88	7.94	25,4	9.92	63.5	60.33	31	12.7	34.18	MS	0.58
UCFB202-10A	5/8		107.95	42.86	38.1	22.22	15.88	7.94	25,4	9.92	63.5	60.33	31	12.7	34.18	MS	0.58
UCFB203A		17	107.95	42.86	38.1	22.22	15.88	7.94	25.4	9.92	63.5	60.33	31	12.7	34.18	M8	0.57
UCFB203-11A	16/11		107.95	42.86	38.1	22.22	15.88	7.94	25.4	9.92	63.5	60.33	31	12.7	34.18	M8	0.57
UCFB204A		20	107.95	42.86	38.1	22.22	15.88	7.94	25.4	9.92	63.5	60.33	31	12.7	34.18	M8	0.62
UCFB204-12A	3/4		107.95	42.86	38.1	22.22	15.88	7.94	25.4	9.92	63.5	60.33	31	12.7	34.18	M8	0.62
UCFB205A		25	120.65	46.04	41.27	28.58	17.07	9.53	28.57	9.92	69.85	63.5	34.1	14.3	36.87	M8	0.69
UCFB205-14A	7/8		120.65	46.04	41.27	28.58	17.07	9.53	28.57	9.92	69.85	63.5	34.1	14.3	36.87	M8	0.69
UCFB205-15A	116/5		120.65	46.04	41.27	28.58	17.07	9.53	28.57	9.92	69.85	63.5	34.1	14.3	36.87	M8	0.69
UCFB205-16A	1/1		120.65	46.04	41.27	28.58	17.07	9.53	28.57	9.92	69.85	63.5	34.1	14.3	36.87	M8	0.69
UCFB206A		30	136.53	52.39	47.63	31.75	18.65	12.7	31.75	9.92	82.55	69.85	38.1	15.9	40.85	M8	0.93
UCFB206-17A	1/16		136.53	52.39	47.63	31.75	18.65	12.7	31.75	9.92	82.55	69.85	38.1	15.9	40.85	M8	0.93
UCFB206-18A	1/8		136.53	52.39	47.63	31.75	18.65	12.7	31.75	9.92	82.55	69.85	38.1	15.9	40.85	M8	0.93
UCFB206-19A	16/3		136.53	52.39	47.63	31.75	18.65	12.7	31.75	9.92	82.55	69.85	38.1	15.9	40.85	M8	0.93
UCFB206-20A	1/4		136.53	52.39	47.63	31.75	18.65	12.7	31.75	9.92	82.55	69.85	38.1	15.9	40.85	M8	0.93
UCFB207A		35	155.58	60.33	50.8	31.75	21.03	12.7	36.51	13.1	95.25	82.55	42.9	17.5	46.43	M8	1.3
UCFB207-20A	1/4		155.58	60.33	50.8	31.75	21.03	12.7	36.51	13.1	95.25	82.55	42.9	17.5	46.43	M8	1.3
UCFB207-21A	16/5		155.58	60.33	50.8	31.75	21.03	12.7	36.51	13.1	95.25	82.55	42.9	17.5	46.43	M8	1.3
UCFB207-22A	3/8		155.58	60.33	50.8	31.75	21.03	12.7	36.51	13.1	95.25	82.55	42.9	17.5	46.43	M8	1.3
UCFB207-23A	16/7		155.58	60.33	50.8	31.75	21.03	12.7	36.51	13.1	95.25	82.55	42.9	17.5	46.43	M8	1.3
UCFB208A		40	164.31	60.33	50.01	41.27	21.03	15.88	35.72	11.91	100.01	77.79	49.2	19	51.23	M10	1.8
UCFB208-24A	1/2		164.31	60.33	50.01	41.27	21.03	15.88	35.72	11.91	100.01	77.79	49.2	19	51.23	M10	1.8
UCFB208-25A	16/9		164.31	60.33	50.01	41.27	21.03	15.88	35.72	11.91	100.01	77.79	49.2	19	51.23	M10	1.8

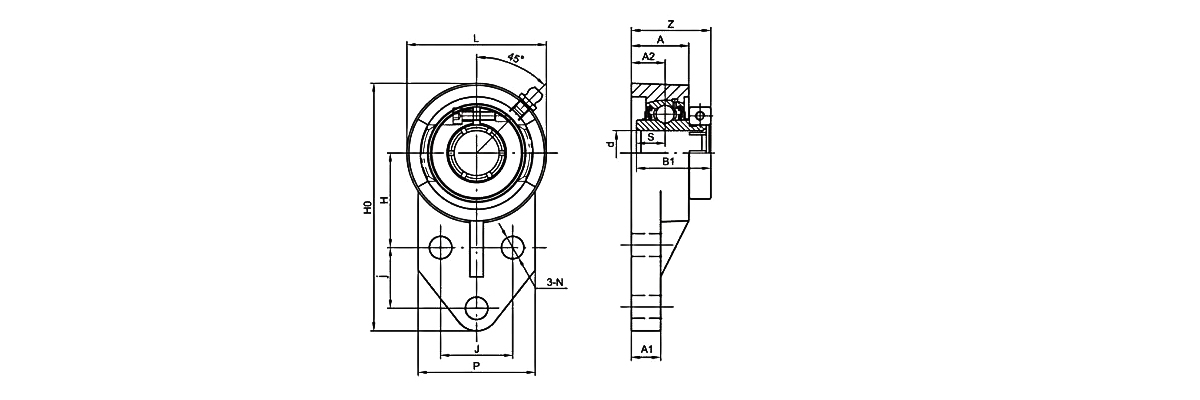

Nomor Satuan.	Diameter Poros		Dimensi (mm)													Ukuran Baut (mm)	Berat (kg)
	d		Ho	H	J	j	A2	A1	A	N	L	P	B1	S	Z
	(dalam)	(mm)
UEFAB204		20	110	42	32	27	15	13	25.5	10	62	52	33	12.7	35.3	M8	0.692
UEFAB204-12	3/4
UEFAB205		25	116	45	34	27	16	13	27	10	68	56	35.4	14.3	37.1	M8	0.87
UEFAB205-14	7/8
UEFAB205-15	116/5
UEFAB205-16	1/1
UEFAB206		30	130	50	40	29	18	13	31	10	78	65	39.8	15.9	41.9	M8	1.13
UEFAB206-17	1/16
UEFAB206-18	1/8
UEFAB206-19	16/3
UEFAB206-20	1/4
UEFAB207		35	144	55	46	32	19	15	34	10	90	70	43.9	17.5	45.4	M8	1.5
UEFAB207-20	1/4
UEFAB207-21	16/5
UEFAB207-22	3/8
UEFAB207-23	16/7
UEFAB208		40	164	60	50	41	21	16	36	12	100	78	50.2	19	52.2	M10	2.07
UEFAB208-24	1/2
UEFAB208-25	16/9
UEFA209		45	174	65	54	43	22	18	38	12	106	80	50.2	19	53.2	M10	2.43
UEFA209-26	5/8
UEFA209-27	16/11
UEFA209-28	3/4
UEFAB210		50	184	68	58	46	22	18	40	12	112	86	52.6	19	55.6	M10	2.8
UEFAB210-30	7/8
UEFAB210-31	1-116/5
UEFAB210-32	1/2

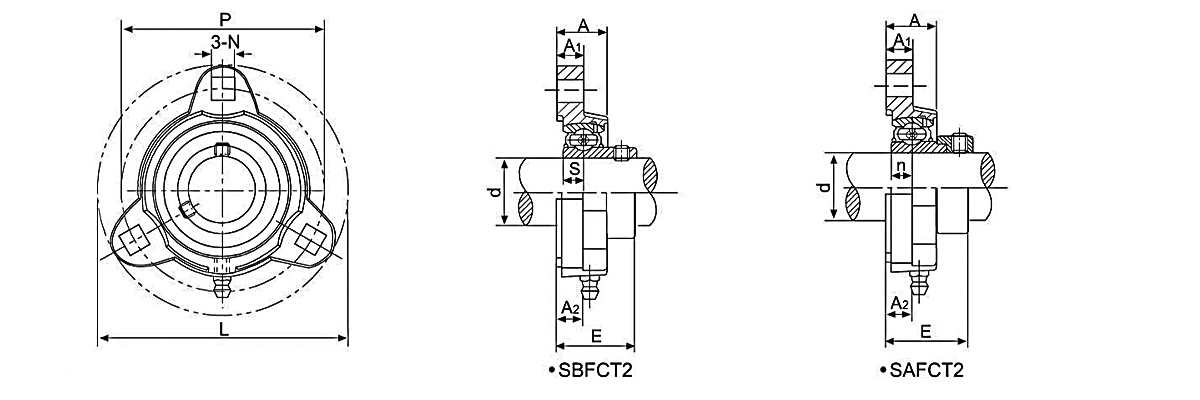

Nomor Satuan.	Diameter Poros		Dimensi (mm)								Ukuran Baut		Bantalan TIDAK.	Perumahan TIDAK.	Berat (kg)
	d		L	P	A1	A	A2	N	s	E	Ukuran Baut
	(dalam)	(mm)	L	P	A1	A	A2	N	s	E	(mm)	(dalam)
SBFCT201		12	81	63.5	10.7	19.1	10.7	7.1	6	26.7	M6	1/4	SB201	FCT203	0.21
SBFCT201-8	1/2		81	63.5	10.7	19.1	10.7	7.1	6	26.7	M6	1/4	SB201-8	FCT203	0.21
SBFCT202		15	81	63.5	10.7	19.1	10.7	7.1	6	26.7	M6	1/4	SB202	FCT203	0.21
SBFCT202-10	5/8		81	63.5	10.7	19.1	10.7	7.1	6	26.7	M6	1/4	SB202-10	FCT203	0.21
SBFCT203		17	81	63.5	10.7	19.1	10.7	7.1	6	26.7	M6	1/4	SB203	FCT203	0.21
SBFCT203-11	16/11		81	63.5	10.7	19.1	10.7	7.1	6	26.7	M6	1/4	SB203-11	FCT203	0.21
SBFCT204-12	3/4		90.5	71.4	11.1	19.8	11.1	8.7	7	29.1	M8	16/5	SB204-12	FCT204	0.32
SBFCT204		20	90.5	71.4	11.1	19.8	11.1	8.7	7	29.1	M8	16/5	SB204	FCT204	0.32
SBFCT205-14	7/8		95.2	76.2	10.3	19.8	10.3	8.7	7.5	29.8	M8	16/5	SB205-14	FCT205	0.36
SBFCT205-15	116/5		95.2	76.2	10.3	19.8	10.3	8.7	7.5	29.8	M8	16/5	SB205-15	FCT205	0.36
SBFCT205		25	95.2	76.2	10.3	19.8	10.3	8.7	7.5	29.8	M8	16/5	SB205	FCT205	0.36
SBFCT205-16	1/1		95.2	76.2	10.3	19.8	10.3	8.7	7.5	29.8	M8	16/5	SB205-16	FCT205	0.36
SBFCT206-18	1/8		113	90.5	12	22	12	10.3	8	34	M10	3/8	SB206-18	FCT206	0.57
SBFCT206		30	113	90.5	12	22	12	10.3	8	34	M10	3/8	SB206	FCT206	0.57
SBFCT206-19	16/3		113	90.5	12	22	12	10.3	8	34	M10	3/8	SB2206-19	FCT206	0.57
SBFCT206-20	1/4		113	90.5	12	22	12	10.3	8	34	M10	3/8	SB206-20	FCT206	0.57
SBFCT207-20	1/4		122.5	100	12.7	23.8	12.7	10.3	8.5	36.2	M10	3/8	SB207-20	FCT207	0.71
SBFCT207-21	16/5		122.5	100	12.7	23.8	12.7	10.3	8.5	36.2	M10	3/8	SB207-21	FCT207	0.71
SBFCT207-22	3/8		122.5	100	12.7	23.8	12.7	10.3	8.5	36.2	M10	3/8	SB207-22	FCT207	0.71
SBFCT207		35	122.5	100	12.7	23.8	12.7	10.3	8.5	36.2	M10	3/8	SB2207	FCT207	0.71
SBFCT207-23	16/7		122.5	100	12.7	23.8	12.7	10.3	8.5	36.2	M10	3/8	SB207-23	FCT207	0.71

Nomor Satuan.	Diameter Poros		Dimensi (mm)								Ukuran Baut		Bantalan TIDAK.	Perumahan TIDAK.	Berat (kg)
	d		L	P	A1	A	A2	s	n	E	Ukuran Baut
	(dalam)	(mm)	L	P	A1	A	A2	s	n	E	(mm)	(dalam)
SAFCT201		12	81	63.5	10.7	19.1	10.7	7.1	6.5	32.8	IV16	1/4	SA201	FCT203	0.26
SAFCT201-8	1/2		81	63.5	10.7	19.1	10.7	7.1	6.5	32.8	IV16	1/4	SA201-8	FCT203	0.26
SAFCT202		15	81	63.5	10.7	19.1	10.7	7.1	6.5	32.8	IV16	1/4	SA202	FCT203	0.26
SAFCT202-10	5/8		81	63.5	10.7	19.1	10.7	7.1	6.5	32.8	IV16	1/4	SA202-10	FCT203	0.26
SAFCT203		17	81	63.5	10.7	19.1	10.7	7.1	6.5	32.8	IV16	1/4	SA203	FCT203	0.26
SAFCT203-11	16/11		81	63.5	10.7	19.1	10.7	7.1	6.5	32.8	IV16	1/4	SA203-11	FCT203	0.26
SAFCT204-12	3/4		90.5	71.4	11.1	19.8	11.1	8.7	7.5	34.5	M8	16/5	SA204-12	FCT204	0.34
SAFCT204		20	90.5	71.4	11.1	19.8	11.1	8.7	7.5	34.5	M8	16/5	SA204	FCT204	0.34
SAFCT205-14	7/8		95.2	76.2	10.3	19.8	10.3	8.7	7.5	33.7	M8	16/5	SA205-14	FCT205	0.39
SAFCT205-15	116/5		95.2	76.2	10.3	19.8	10.3	8.7	7.5	33.7	M8	16/5	SA205-15	FCT205	0.39
SAFCT205		25	95.2	76.2	10.3	19.8	10.3	8.7	7.5	33.7	M8	16/5	SA205	FCT205	0.39
SAFCT205-16	1/1		95.2	76.2	10.3	19.8	10.3	8.7	7.5	33.7	M8	16/5	SA205-16	FCT205	0.39
SAFCT206-18	1/8		113	90.5	12	22	12	10.3	9	38.7	M10	3/8	SA206-18	FCT206	0.61
SAFCT206		30	113	90.5	12	22	12	10.3	9	38.7	M10	3/8	SA206	FCT206	0.61
SAFCT206-19	16/3		113	90.5	12	22	12	10.3	9	38.7	M10	3/8	SA206-19	FCT206	0.61
SAFCT206-20	1/4		113	90.5	12	22	12	10.3	9	38.7	M10	3/8	SA206-20	FCT206	0.61
SAFCT207-20	1/4		122.5	100	12.7	23.8	12.7	10.3	9.5	42.1	M10	3/8	SA207-20	FCT207	0.82
SAFCT207-21	16/5		122.5	100	12.7	23.8	12.7	10.3	9.5	42.1	M10	3/8	SA207-21	FCT207	0.82
SAFCT207-22	3/8		122.5	100	12.7	23.8	12.7	10.3	9.5	42.1	M10	3/8	SA207-22	FCT207	0.82
SAFCT207		35	122.5	100	12.7	23.8	12.7	10.3	9.5	42.1	M10	3/8	SA207	FCT207	0.82
SAFCT207-23	16/7		122.5	100	12.7	23.8	12.7	10.3	9.5	42.1	M10	3/8	SA207-23	FCT207	0.82
